STM60ZF-S CONTROL AND PARTS SET

STM60ZF-S CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

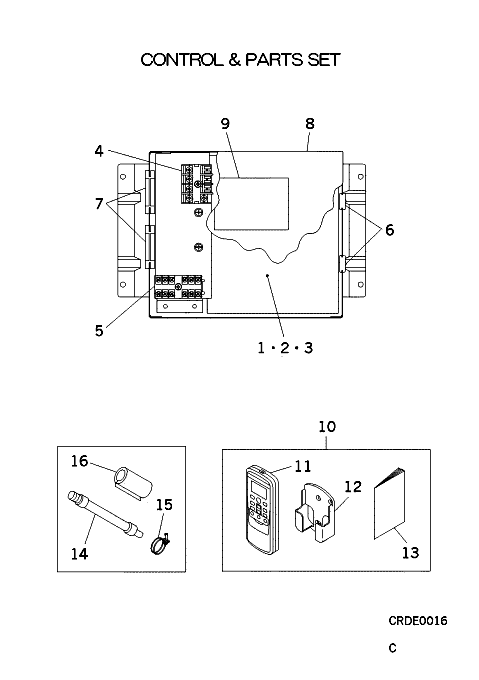

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] In Stock

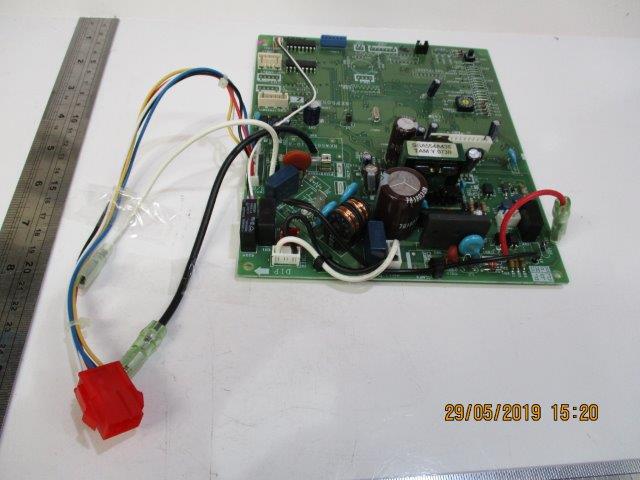

RKW505A210Z
PWB ASSY
Show Image
RKW505A210Z
[1-7] Contact
RJH501A012D
CONTROL UNIT
Contact
[2] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[3] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[4] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[5] Contact
SSA561B686G
BLOCK,TERMI
Contact
[6] Contact
SSA947B019
GROMMET
Contact
Notes: 16X8
[7] Contact
SSA947B104
GROMET
Contact
Notes: D37
[8-9] Contact
RJH142A001
LID ASSY,CONTROL B
Contact
[9] Contact
RJH011G001
LABEL,WIRING
Contact
[10] Contact
RJH008A001A
PARTS SET
Contact
[11] In Stock
RMA502A001F
REMOCON ASSY
Notes: RKR032A002 remote control holder Show Image
RMA502A001F
[12] In Stock
RKN032A002B
HOLDER
Show Image
RKN032A002B
[13] Contact
RJH012A011
MANUAL,INSTRUCTION
Contact
[14] In Stock
PSA006A039
HOSE SET, DRAIN
[14-16] Contact
PJA008A308V
PARTS SET
Contact
[15] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
[16] In Stock
PJA153B008
INSULATION,PIPE
[17] Contact
RWA011F006S
LABEL,MODEL NAME
Contact
