STM50ZF-S HEAT EXCH. ASSY

STM50ZF-S HEAT EXCH. ASSY

Available Parts

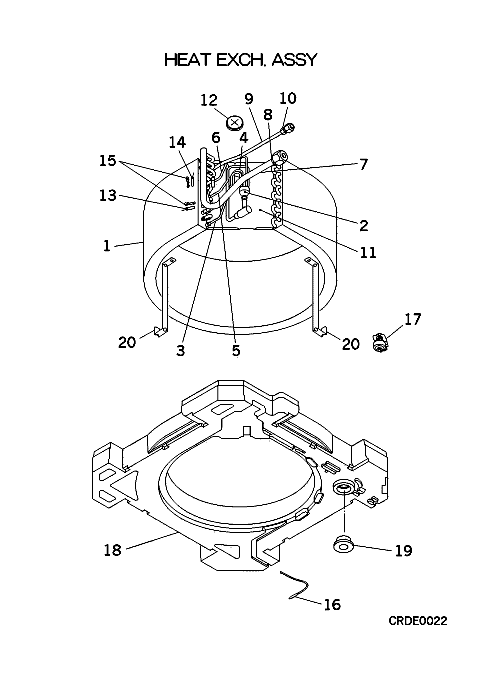

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RJH311A001 HEAT EXCH(AIR) Contact   Contact
  • [1-15] RJH301A001 HEAT EXCH A In Stock
  • [2] SSA315A252A DISTRIBUTOR Contact   Contact
  • [2-6] RJH315A001 DISTRIBUTOR ASSY Contact   Contact
  • [3] RJH315B001 CAPILLARY(1) Contact   Contact
  • [4] RJH315B002 CAPILLARY(2) Contact   Contact
  • [5] RJH315B003 CAPILLARY(3) Contact   Contact
  • [6] RJH315B004 CAPILLARY(4) Contact   Contact
  • [7-8] RJH315D001 HEADER ASSY,GAS Contact   Contact
  • [8] SSA323F012B UNION Contact Notes: GAS   Contact
  • [9-10] RJH321A001 PIPING ASSY Contact   Contact
  • [10] SSA323F084 UNION Contact Notes: LIQ.   Contact
  • [11] PJA141A752 PLATE,BAFFLE Contact   Contact
  • [12] S751W25X GROMMET In Stock Notes: D30 Show Image
  • [13] PJA551A005CC SENSOR(TEMP In Stock Notes: THI-R1, THI-R1 Show Image
  • [14] PJA551A005CB SENSOR(TEMP In Stock Notes: THI-R2(CAPILLARY), THI-R2(CAPILLARY)
  • [15] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [16] PJA551A010W SENSOR(TEMP Out of Stock Notes: THI-A, THI-A Show Image
  • [17] PJA536A700B SWITCH ASSY In Stock Substitute: OUT OF PRODUCTION Notes: FS Show Image
  • [18-19] PJA454A750A PAN ASSY,DR In Stock
  • [19] SSA326A022 PLUG Contact   Contact
  • [20] PJA116A754 BRACKET Contact   Contact
SKU: STM50ZF-S HEAT EXCH. ASSY Category:
