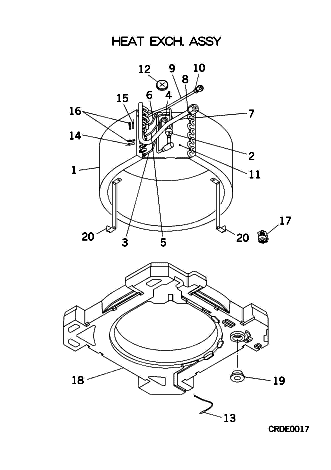

STM50ZE-S HEAT EXCH. ASSY

STM50ZE-S HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RJH311A001
HEAT EXCH(AIR)
Contact
[1-12] In Stock
RJH301A001
HEAT EXCH A
[2] Out of Stock
SSA315A252A
DISTRIBUTOR
[2-6] Contact
RJH315A001
DISTRIBUTOR ASSY
Contact
[3] Contact
RJH315B001
CAPILLARY(1)
Contact
[4] Contact
RJH315B002
CAPILLARY(2)
Contact
[5] Contact
RJH315B003
CAPILLARY(3)
Contact
[6] Contact
RJH315B004
CAPILLARY(4)
Contact
[7-8] Contact
RJH315D001
HEADER ASSY,GAS
Contact
[8] In Stock
SSA323F012B
UNION
Notes: GAS
[9-10] Contact
RJH321A001
PIPING ASSY
Contact
[10] Contact
SSA323F084
UNION
Contact
Notes: LIQ.
[11] Contact
PJA141A750
PLATE ASSY,BAFFLE
Contact
[12] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[13] In Stock
PJA551A010W
SENSOR(TEMP
Notes: THI-A Show Image
PJA551A010W
[14] In Stock
PJA551A005CC
SENSOR(TEMP
Notes: THI-R1 Show Image
PJA551A005CC
[15] In Stock
PJA551A005CB
SENSOR(TEMP
Notes: THI-R2(CAPILLARY)
[16] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[17] In Stock
PJA536A700B
SWITCH ASSY
Notes: FS Show Image
PJA536A700B
[18-19] Out of Stock
PJA454A750A
PAN ASSY,DR
[19] Contact
SSA326A022
PLUG
Contact
[20] Contact
PJA116A754
BRACKET
Contact
SKU: STM50ZE-S HEAT EXCH. ASSY Category:
