STM50ZE-S CONTROL AND PARTS SET

STM50ZE-S CONTROL AND PARTS SET

Available Parts

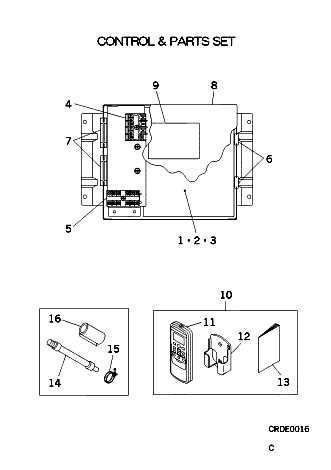

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

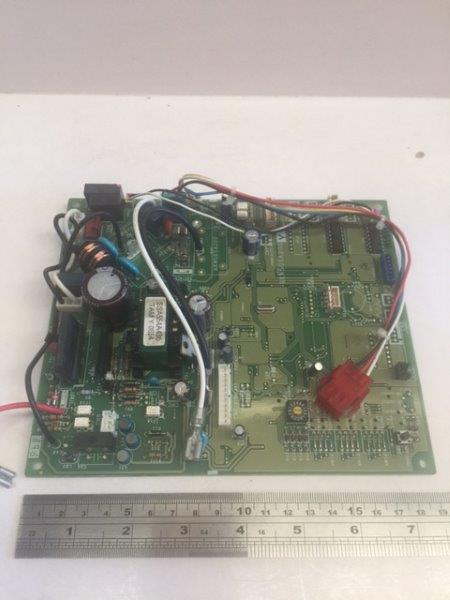

  • [1-3] RKW505A200Y PWB ASSY Out of Stock Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION Show Image
  • [1-9] RJH501A002C CONTROL UNIT Contact   Contact
  • [2] SSA555B050C VARISTOR In Stock Notes: Z1, Z1 Show Image
  • [3] SSA564A132 FUSE(CURRENT) In Stock Notes: 3.15A, 3.15A Show Image
  • [4] SSA561B702B BLOCK,TERMINAL In Stock Notes: T2, T2 Show Image
  • [5] SSA561B686G BLOCK,TERMI Contact   Contact
  • [6] SSA947B019 GROMMET Contact Notes: 16X8   Contact
  • [7] SSA947B104 GROMET Contact Notes: D37   Contact
  • [8-9] RJH142A001 LID ASSY,CONTROL B Contact   Contact
  • [9] RJH011G001 LABEL,WIRING Contact   Contact
  • [10] RJH008A001 PARTS SET Contact   Contact

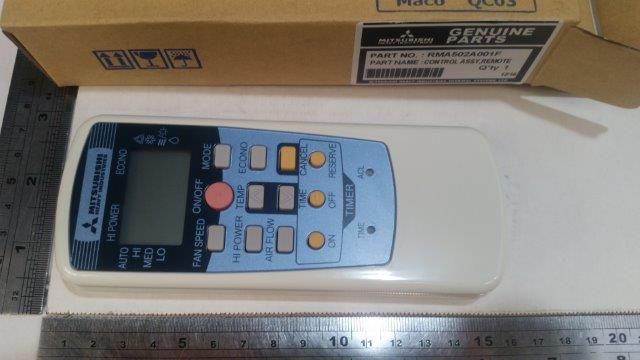

  • [11] RMA502A001F REMOCON ASSY In Stock Notes: RKR032A002 REMOTE CONTROL HOLDER Show Image
  • [12] RKN032A002B HOLDER In Stock Substitute: RKN032A002C Show Image
  • [13] RJH012A003 MANUAL,INSTRUCTION Contact   Contact
  • [14] SSA423A070 HOSE, DRAIN In Stock Show Image
  • [15] V300Y38 CLAMP In Stock Notes: CLAMP Show Image
  • [16] SSA153B007 INSULATION,PIPE Contact   Contact
  • [17] RWA011F006G LABEL,MODEL NAME Contact   Contact
SKU: STM50ZE-S CONTROL AND PARTS SET Category:
