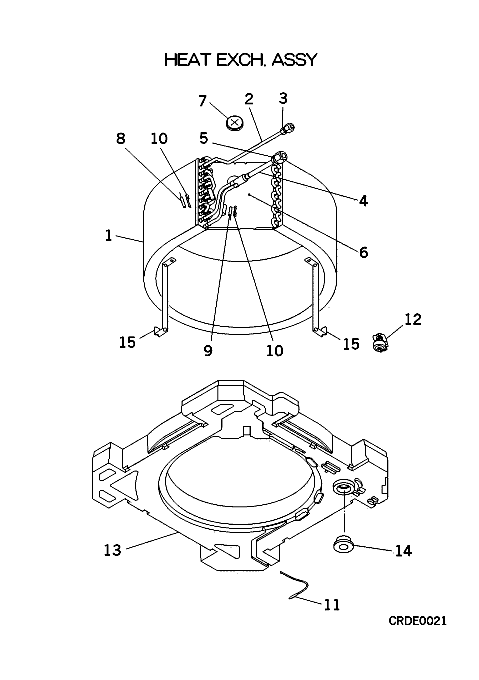

STM35ZF-S HEAT EXCH. ASSY

STM35ZF-S HEAT EXCH. ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RJH311A002 HEAT EXCH(AIR) Contact   Contact
  • [1-10] RJH301A002 HEAT EXCH A In Stock
  • [2-3] RJH321A005 PIPING ASSY Contact   Contact
  • [3] SSA323F084 UNION Contact Notes: LIQ.   Contact
  • [4-5] RJH321A006 PIPING ASSY Contact   Contact
  • [5] SSA323F012A UNION Contact   Contact
  • [6] PJA141A752 PLATE,BAFFLE Contact   Contact
  • [7] S751W25X GROMMET In Stock Notes: D30 Show Image
  • [8] PJA551A005CC SENSOR(TEMP In Stock Notes: THI-R1, THI-R1 Show Image
  • [9] PJA551A005CB SENSOR(TEMP In Stock Notes: THI-R2(CAPILLARY), THI-R2(CAPILLARY)
  • [10] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [11] PJA551A010W SENSOR(TEMP Out of Stock Notes: THI-A, THI-A Show Image
  • [12] PJA536A700B SWITCH ASSY In Stock Substitute: OUT OF PRODUCTION Notes: FS Show Image
  • [13-14] PJA454A750A PAN ASSY,DR In Stock
  • [14] SSA326A022 PLUG Contact   Contact
  • [15] PJA116A754 BRACKET Contact   Contact
SKU: STM35ZF-S HEAT EXCH. ASSY Category:
