STM35ZE-S CONTROL AND PARTS SET

STM35ZE-S CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

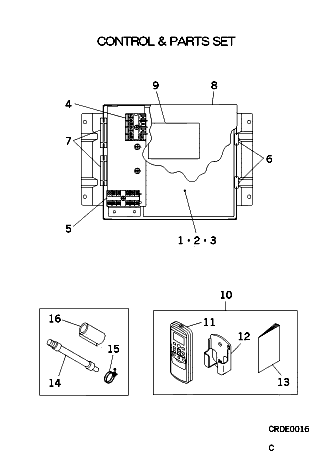

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] In Stock

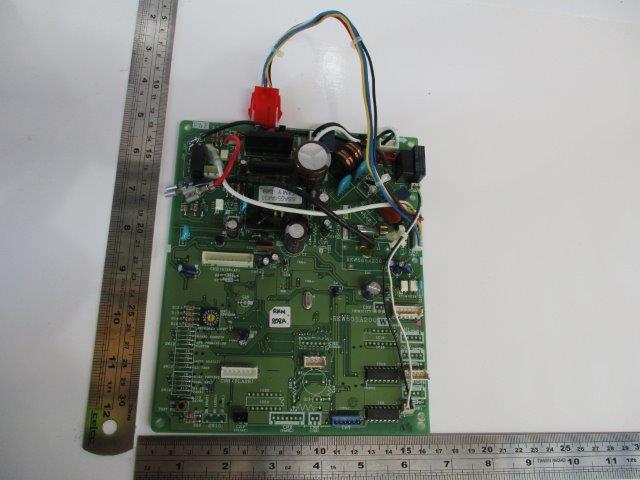

RKW505A200W
PWB ASSY
RKW505A200W
[1-9] Contact
RJH501A002B
CONTROL UNIT
Contact
[2] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[4] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[5] Contact
SSA561B686G
BLOCK,TERMI
Contact
[6] Contact
SSA947B019
GROMMET
Contact
Notes: 16X8
[7] Contact
SSA947B104
GROMET
Contact
Notes: D37
[8-9] Contact
RJH142A001
LID ASSY,CONTROL B
Contact
[11] In Stock
RMA502A001F
REMOCON ASSY
Notes: RKR032A002 remote control holder Show Image
RMA502A001F
[12] In Stock
RKN032A002B
HOLDER
Substitute: RKN032A002C Show Image
RKN032A002B
[13] Contact
RJH012A003
MANUAL,INSTRUCTION
Contact
[14] In Stock
PSA006A039
HOSE SET, DRAIN
[14-16] In Stock
PJA006A317K
INSTALATION
[15] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
[16] Contact
SSA153B007
INSULATION,PIPE
Contact
[17] Contact
RWA011F006F
LABEL,MODEL NAME
Contact
SKU: STM35ZE-S CONTROL AND PARTS SET Category:
