SRRM50ZF-S HEAT EXCH. AND CONTROL

SRRM50ZF-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

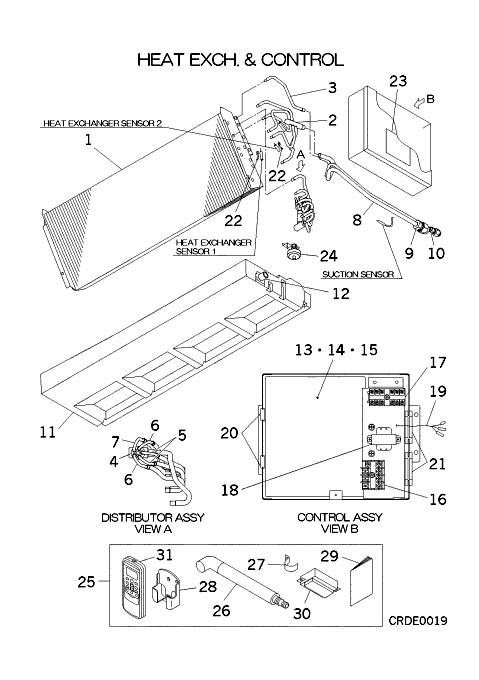

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-7] In Stock
RJD301A108
HEAT EXCH ASSY(AIR
[2] Contact
RJD315D105
HEADER ASSY
Contact
[3] Contact
RJD321A143
PIPE
Contact
[4] Contact
SSA315A252
DISTRIBUTOR
Contact
[4-7] Contact
RJD315A101
DISTRIBUTOR ASSY
Contact
[5] Contact
RJD315B105
CAPILLARY
Contact
Notes: !D2.8XD4.0 L70
[6] Contact
RJD315B103
CAPILLARY
Contact
Notes: !D2.8XD4.0 L70
[7] Contact
RJD315B106
CAPILLARY
Contact
Notes: !D2.8XD4.0 L80
[8-10] Contact
RJD321A140A
PIPE ASSY
Contact
[9] Contact
SSA323F082B
UNION(SLD)
Contact
Notes: GAS, FOR GAS
[10] Contact
SSA323F082A
UNION(SLD)
Contact
Notes: LIQ.
[11-12] Out of Stock
RJD454A100
PAN ASSY,DR
[12] Contact
RKA454A004
SOCKET
Contact
[13-15] In Stock

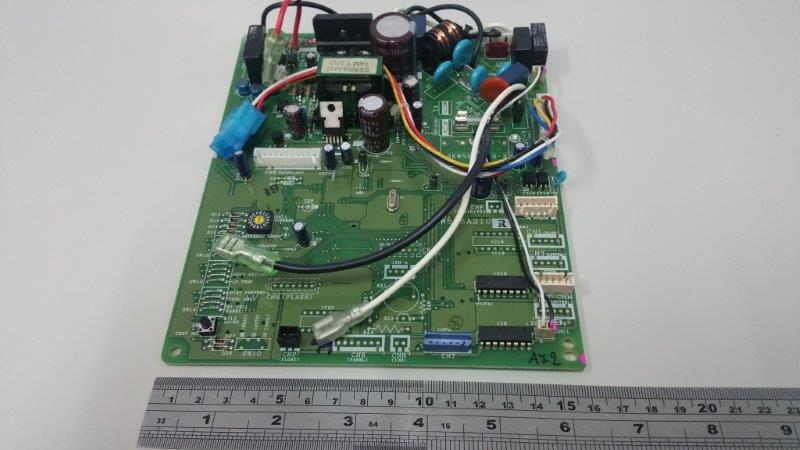

RKW505A210R
PWB ASSY
Show Image
RKW505A210R
[14] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[15] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[16] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[17] Contact
SSA561B686G
BLOCK,TERMI
Contact
[18] In Stock
SSA554A480
TRANSFORMER
Notes: TR Show Image
SSA554A480
[19] In Stock
SSA551A212A
SENSOR ASSY
Notes: 3 SENSORS ON 1 PLUG Show Image
SSA551A212A
[20] Contact
SSA947B019
GROMMET
Contact
Notes: 16X8
[21] Contact
SSA947B104
GROMET
Contact
Notes: D37
[22] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[23] Contact
RJD011G100
LABEL,WIRING
Contact
[24] In Stock
RJD536A002A
FLOAT ASSY
Notes: FLOAT SWITCH Show Image
RJD536A002A
[25] Contact
RJD008A100A
PARTS,STANDARD
Contact
[26] In Stock
SSA423A012F
DRAIN HOSE
[27] Out of Stock
SSA937A815A
CLAMP
[28] In Stock
RKN032A002B
HOLDER
Show Image
RKN032A002B
[29] Contact
RJD012A110
MANUAL,INSTRUCTION
Contact
[30] Out of Stock
RJD503A100A
DISPLAY ASSY
Show Image
RJD503A100A
[31] In Stock
RMA502A001F
REMOCON ASSY
Notes: RKR032A002 remote control holder Show Image
RMA502A001F
[32] Contact
RWA011F006L
LABEL,MODEL NAME
Contact
SKU: SRRM50ZF-S HEAT EXCH. AND CONTROL Category:
