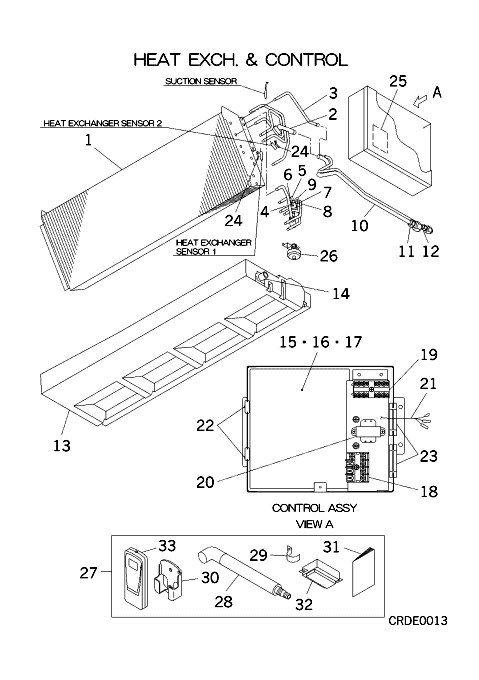

SRRM50ZE-S HEAT EXCH. AND CONTROL

SRRM50ZE-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-9] Contact
RJD301A104
HEAT EXCH A
Contact
[2] Contact
RJD315D102
HEADER ASSY
Contact
[3] Contact
RJD321A115
PIPE
Contact
[4] Contact
SSA315A252
DISTRIBUTOR
Contact
[4-9] Contact
RJD315A100
DISTRIBUTOR ASSY
Contact
[5] Contact
RJD315B100
CAPILLARY
Contact
[6] Contact
RJD315B101
CAPILLARY
Contact
[7] Contact
RJD315B102
CAPILLARY
Contact
[8] Contact
RJD315B103
CAPILLARY
Contact
Notes: !D2.8XD4.0 L70
[9] Contact
RJD315B104
CAPILLARY
Contact
[10-12] Contact
RJD321A101A
PIPE ASSY
Contact
[11] Contact
SSA323F082B
UNION(SLD)
Contact
Notes: GAS, FOR GAS
[12] Contact
SSA323F082A
UNION(SLD)
Contact
Notes: LIQ.
[13-14] Out of Stock
RJD454A100
PAN ASSY,DR
[14] Contact
RKA454A004
SOCKET
Contact
[15-17] In Stock

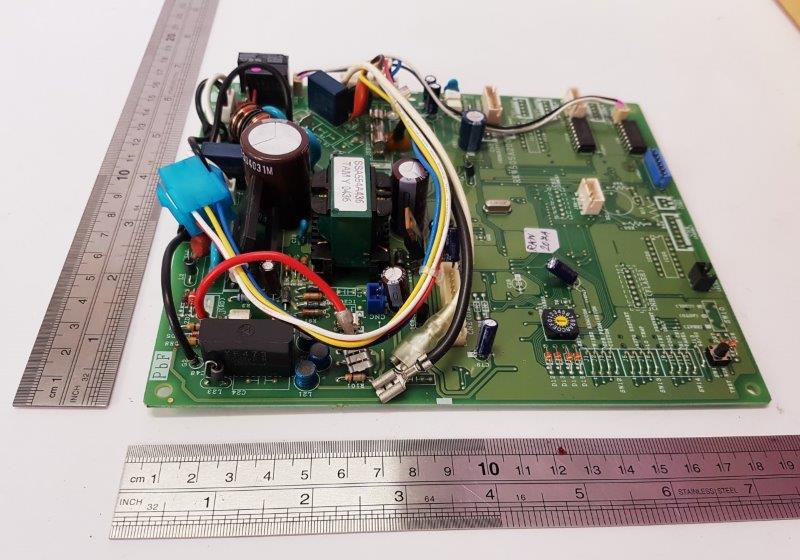

RKW505A200R
PWB ASSY
[16] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[17] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[18] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[19] Contact
SSA561B686G
BLOCK,TERMI
Contact
[20] In Stock
SSA554A480
TRANSFORMER
Notes: TR Show Image
SSA554A480
[21] In Stock
SSA551A212A
SENSOR ASSY
Notes: 3 SENSORS ON 1 PLUG Show Image
SSA551A212A
[22] Contact
SSA947B019
GROMMET
Contact
Notes: 16X8
[23] Contact
SSA947B104
GROMET
Contact
Notes: D37
[24] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[25] Contact
RJD011G100
LABEL,WIRING
Contact
[26] In Stock
RJD536A002A
FLOAT ASSY
Notes: FLOAT SWITCH Show Image
RJD536A002A
[27] Contact
RJD008A100
PARTS,STANDARD
Contact
[28] In Stock
SSA423A012F
DRAIN HOSE
[29] Out of Stock
SSA937A815A
CLAMP
[30] In Stock
RKN032A002B
HOLDER
Show Image
RKN032A002B
[31] Contact
RJD012A100
MANUAL,INSTRUCTION
Contact
[32] Out of Stock
RJD503A100
DISPLAY ASSY
Substitute: OUT OF PRODUCTION
[33] In Stock
RMA502A001F
REMOCON ASSY
Notes: RKR032A002 remote control holder Show Image
RMA502A001F
[34] Contact
RWA011F006B
LABEL,MODEL NAME
Contact
SKU: SRRM50ZE-S HEAT EXCH. AND CONTROL Category:
