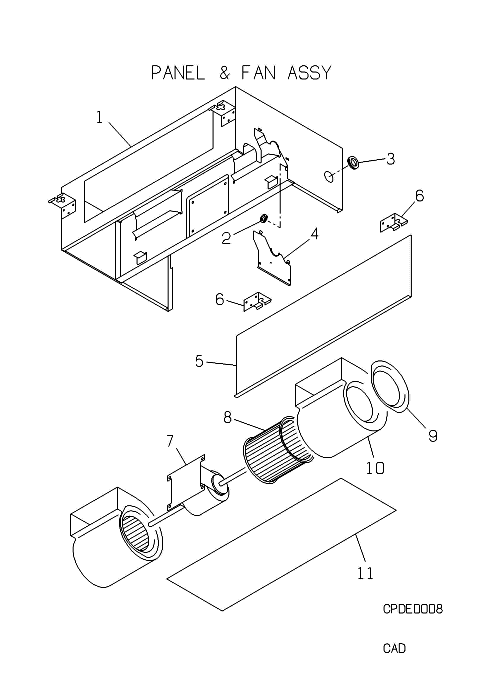

SRRM40ZA PANEL AND FAN ASSY

SRRM40ZA PANEL AND FAN ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-3] RJD121A001A CABINET Contact   Contact
  • [2] S751W20X GROMMET Contact Notes: D25   Contact
  • [3] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [4] RJD116A002 BRACKET Contact   Contact
  • [5] RJD125A001 PANEL REAR Contact   Contact
  • [6] RJC116A001 BRACKET Contact   Contact
  • [7] SSA511B066C MOTOR Contact   Contact
  • [9] RFA433B007 SHROUD In Stock
  • [10] RJD433B001 CASING In Stock
  • [11] RJD116A001A COVER(DRAIN Contact   Contact
SKU: SRRM40ZA PANEL AND FAN ASSY Category:
