SRRM40ZA HEAT EXCH. AND CONTROL

SRRM40ZA HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

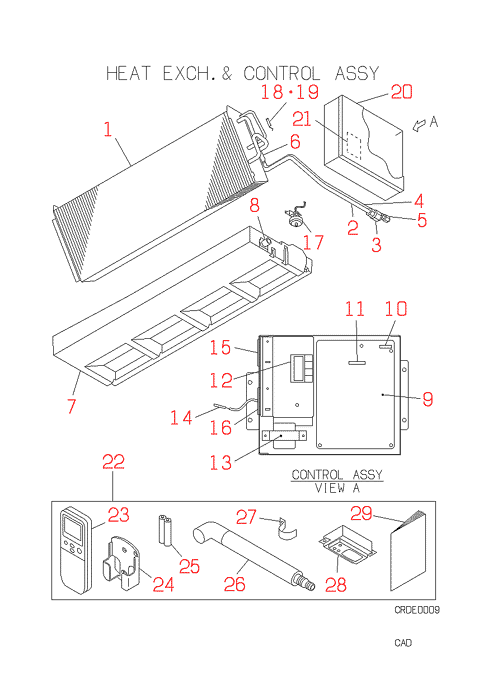

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RJD311A002
HEAT EXCH
Contact
Substitute: RJD301A004
[1-6] Contact
RJD301A004B
HEAT EXC
Contact
[2-3] Contact
RJD321A002
PIPE ASSY
Contact
[3] In Stock
SSA323F012B
UNION
Notes: GAS
[4-6] Contact
RJD321A007
PIPE ASSY
Contact
[5] Contact
SSA323F006
UNION
Contact
[6] In Stock
SSA357A059B
STRAINER
[7-8] In Stock
RJD454A002
PAN DRAIN
[8] Contact
RKA454A004
SOCKET
Contact
[9-11] Out of Stock
RJC505A020AB
PWB
[10] In Stock
SSA555B003A
VARISTOR
Show Image
SSA555B003A
[11] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132

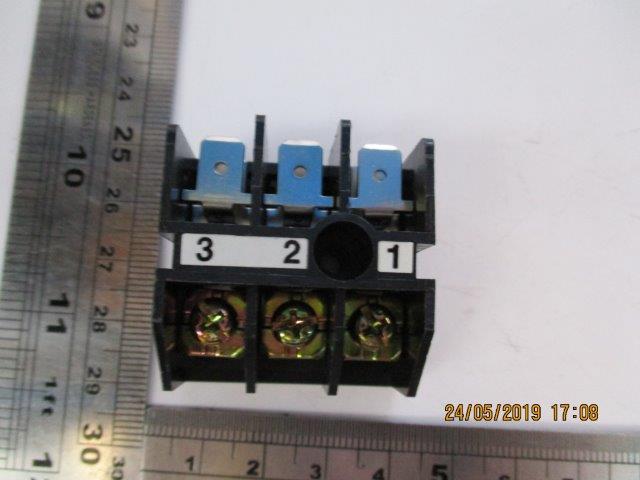

[12] In Stock
SSA561B675
BLOCK,TERMI
Show Image
SSA561B675
[13] Contact
SSA554A315C
TRANS
Contact
Notes: TX

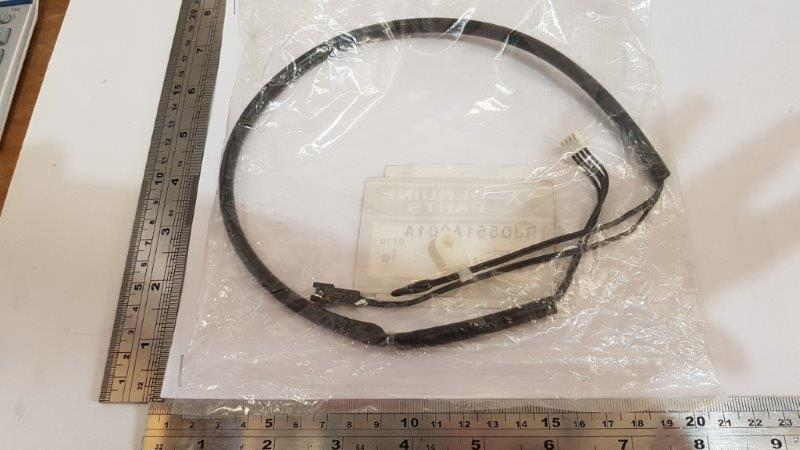

[14] In Stock
RJD551A001A
SENSER
Notes: TH1 Show Image
RJD551A001A
[15] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[16] Contact
SSA947B104
GROMET
Contact
Notes: D37
[17] Contact
SSA536A017L
SWITCH FROT
Contact
[18] In Stock
RCD551A004
SENSOR
Notes: TH2 Show Image
RCD551A004
[19] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[20-21] Contact
RJD132A001D
COVER CONT
Contact
[21] Contact
RJD011G002B
LABEL,WIRING
Contact
[22] Contact
RJD008A002H
PARTS STAND
Contact

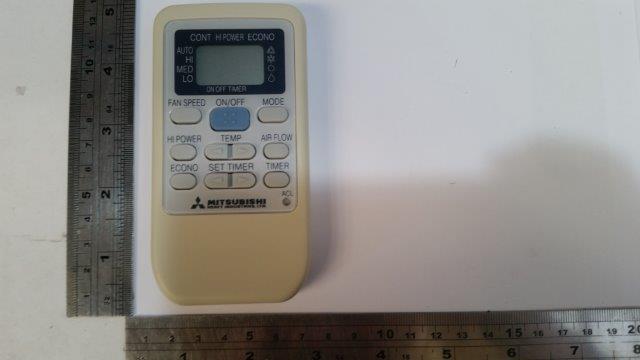

[23] In Stock
RKS502A503
REMOTE CONTROL
Show Image
RKS502A503

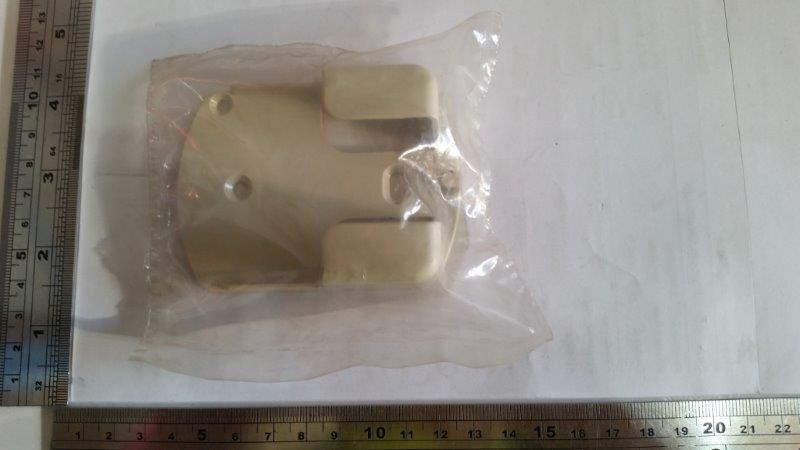

[24] In Stock
RKN032A002A
PLATE REMOC
Show Image
RKN032A002A
[25] Contact
RSA549A001
BATTERY
Contact
Substitute: RKH549A500
[26] In Stock
SSA423A012F
DRAIN HOSE
[27] Out of Stock
SSA937A815A
CLAMP
[29] Contact
RJD012A011
MANUAL,INSTRUCTION
Contact
[30] Contact
RSA011F388A
LABEL,MODEL NAME
Contact
SKU: SRRM40ZA HEAT EXCH. AND CONTROL Category:
