SRRM35ZE-S HEAT EXCH. AND CONTROL

SRRM35ZE-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

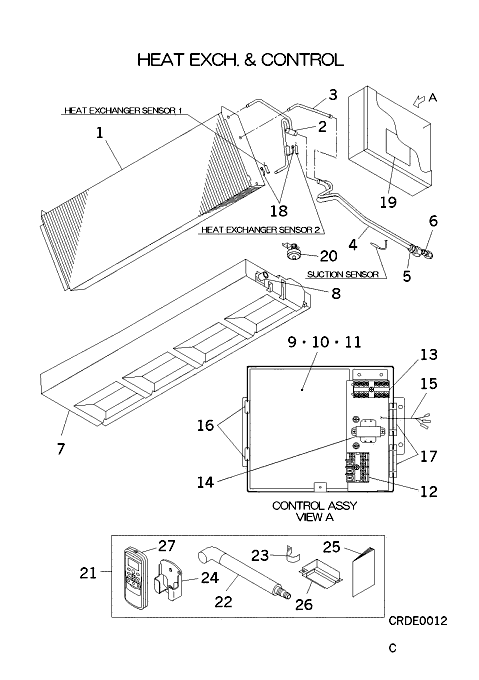

Check the parts position number [ ] matching with the drawing. Login to view prices.

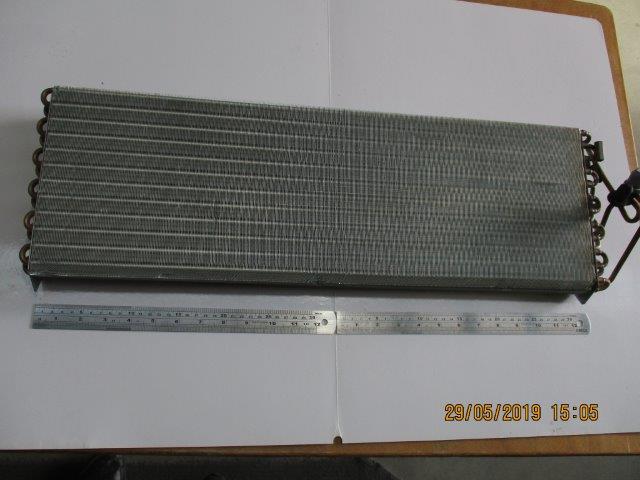

[1-3] In Stock
RJD301A103
HEAT EXCH A
Show Image
RJD301A103
[2] Contact
RJD315D100
HEADER ASSY
Contact
[3] Contact
RJD321A100
PIPE
Contact
[4-6] Contact
RJD321A101
PIPE ASSY
Contact
[5] Contact
SSA323F082
UNION
Contact
Notes: GAS
[6] Contact
SSA323F082A
UNION(SLD)
Contact
Notes: LIQ.
[7-8] Out of Stock
RJD454A100
PAN ASSY,DR
[8] Contact
RKA454A004
SOCKET
Contact

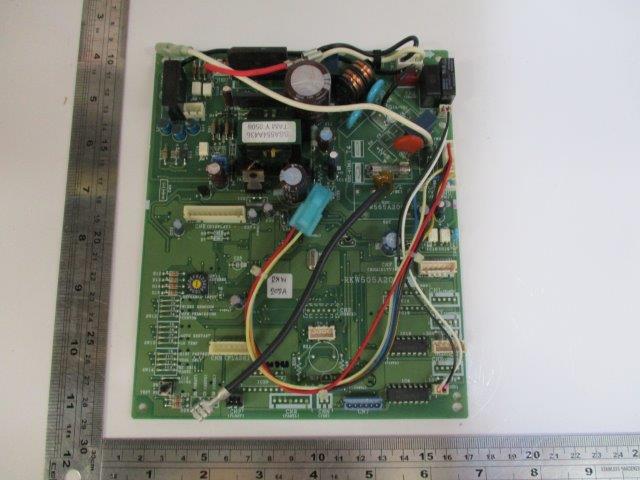

[9-11] In Stock
RKW505A200P
PWB ASSY
Show Image
RKW505A200P
[10] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[11] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[12] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[13] Contact
SSA561B686G
BLOCK,TERMI
Contact
[14] In Stock
SSA554A480
TRANSFORMER
Notes: TR Show Image
SSA554A480
[15] In Stock
SSA551A212A
SENSOR ASSY
Notes: 3 SENSORS ON 1 PLUG Show Image
SSA551A212A
[16] Contact
SSA947B019
GROMMET
Contact
Notes: 16X8
[17] Contact
SSA947B104
GROMET
Contact
Notes: D37
[18] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[19] Contact
RJD011G100
LABEL,WIRING
Contact
[20] In Stock
RJD536A002A
FLOAT ASSY
Notes: FLOAT SWITCH Show Image
RJD536A002A
[21] Contact
RJD008A100
PARTS,STANDARD
Contact
[22] In Stock
SSA423A012F
DRAIN HOSE
[23] Out of Stock
SSA937A815A
CLAMP
[24] In Stock
RKN032A002B
HOLDER
Show Image
RKN032A002B
[25] Contact
RJD012A100
MANUAL,INSTRUCTION
Contact
[26] Out of Stock
RJD503A100
DISPLAY ASSY
Substitute: OUT OF PRODUCTION
[27] In Stock
RMA502A001F
REMOCON ASSY
Notes: RKR032A002 remote control holder Show Image
RMA502A001F
[28] Contact
RWA011F006A
LABEL,MODEL NAME
Contact
