SRK95ZRA-W HEAT EXCH. AND CONTROL

SRK95ZRA-W HEAT EXCH. AND CONTROL

SRK95ZRA-W HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

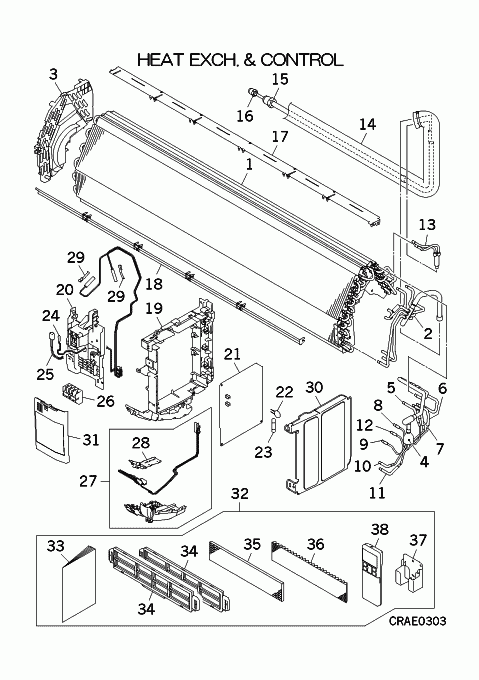

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-18] In Stock
RLD301A003SG
HEAT EXCH ASSY (AIR)
Notes: Indoor Heat exchanger assembly
[2] Contact
RLD315D002B
HEADER ASSY
Contact
[3] In Stock
RLD129A003
BRACKET(L)
[4] Contact
RSA315A006
DISTRIBUTOR
Contact
[4-12] Contact
RLD315A004
DISTRIBUTOR ASSY
Contact
[5] Contact
RLD321A031
PIPE ASSY
Contact
Notes: f2.8xf4.0 L100, f2.8”f4.0 L100
[6] Contact
RLD321A032
PIPE ASSY
Contact
Notes: f2.8xf4.0 L100, f2.8”f4.0 L100
[7] Contact
RLD321A033
PIPE ASSY
Contact
Notes: f2.8xf4.0 L100, f2.8”f4.0 L100
[8] Contact
RLD315B001
CAPILLARY
Contact
Notes: D2.8xD4.0 L100
[9] Contact
RLD315B009
CAPILLARY
Contact
Notes: f2.8xf4.0 L100, f2.8”f4.0 L100
[10] Contact
RLD321A034
PIPE ASSY
Contact
Notes: f2.8xf4.0 L100, f2.8”f4.0 L100
[11] Contact
RLD321A035
PIPE ASSY
Contact
Notes: f2.8xf4.0 L100, f2.8”f4.0 L100
[12] Contact
RLD315B004
CAPILLARY
Contact
Notes: D2.8xD4.0 L100
[13] Contact
RLD321A051
PIPE ASSY
Contact
[14-16] Contact
RLD321A001D
PIPE ASSY
Contact
[15] Contact
SSA323F092D
UNION,SOLDER
Contact
Notes: FOR GAS
[16] In Stock
SSA323F088
UNION(SLD)
Notes: LENGTH 2.6CM Show Image
SSA323F088
[17] In Stock
RLD129A004
PLATE,BAFFLE
[18] Contact
RLD129A006
SEAL(A)
Contact
[19] In Stock
PHA142A401
BOX ASSY,CONTROL
[20] Contact
RLD129A016
COVER,BEND
Contact
[21-23] In Stock
RLA505A001SG
PWB ASSY
Notes: INDOOR MAIN PC BOARD Show Image
RLA505A001SG
[22] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[23] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[24] In Stock
SSA551A223L
SENSOR ASSY
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), includes room temp & 2x heat exchanger coil sensors Show Image
SSA551A223L
[25] In Stock
SSA551B017C
SENSOR(HUMIDITY)
Notes: HUMIDITY SENSOR Show Image
SSA551B017C
[26] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[27] In Stock
RLD503A001
DISPLAY ASSY
Notes: DOES NOT INCLUDE FRONT FACIA - INCLUDES RECEIVER BOARD HOUSING AND HARNESS Show Image
RLD503A001
[28] In Stock
RLD505A001
PWB ASSY(DISPLAY)
Notes: Display/Receiver board with wiring harness Show Image
RLD505A001
[29] In Stock
RKJ941F001
SPRING LEAF
Show Image
RKJ941F001
[30] In Stock
RLD142A001
LID,CONTROL
[31] In Stock
RLD132A003H
LID ASSY(TERMINAL)
Show Image
RLD132A003H
[32] In Stock
RLD008A001AH
PARTS,STANDARD
[33] Contact
RLD012A015F
MANUAL,INSTRUCTION
Contact
[34] In Stock
RKX129A014
HOLDER,FILTER
Notes: 1pc ONLY, FILTER HOLDER - UNIT HAS 2 - SOLD INDIVIDUALLY
[35] In Stock
RKT437A005
FILTER,CLEAN
Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape
[36] In Stock
RKT437A801D
FILTER,CLEAN(BIO)
Notes: ALLERGEN FILTER. For ZTLA models the optional Photocatalytic filter is RKT437A005. Show Image
RKT437A801D
[37] In Stock
RLA032A700
HOLDER(REMO-CON)
Notes: Holder/Cradle for Remote control Show Image
RLA032A700
[38] In Stock
RLA502A700R
REMOTE CONTROL
Notes: DOES NOT COME WITH HOLDER PART NUMBER - RLA032A700 Show Image
RLA502A700R
[39] Contact
RLD011F006D
LABEL,MODEL NAME
Contact
