SRK71ZMA-S PANEL AND FAN ASSY

SRK71ZMA-S PANEL AND FAN ASSY

Available Parts

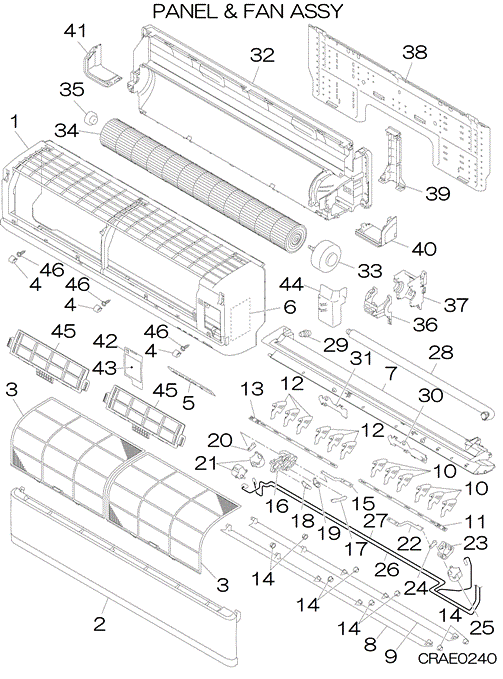

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RKW122A400 PANEL,FRONT In Stock
  • [1-6] RKW102A400 PANEL ASSY,FRONT In Stock
  • [2] RKW435A401 PANEL ASSY,AIR IN In Stock Notes: FOR CLIP ONLY SEE RKW129A401 (LEFT) OR RKW129A400 (RIGHT)
  • [3] RKW437A400 FILTER, AIR In Stock Notes: RETURN AIR / DUST FILTER - UNIT HAS 2 - SOLD INDIVIDUALLY, 1pc ONLY
  • [4] RKW129A214A CAP In Stock Show Image
  • [5] RKW133A401 PLATE,ORNAMENT Contact   Contact
  • [6] RKW011G400 LABEL,WIRING Contact   Contact
  • [7] RKW435A202AG GRILLE ASSY, AIR OUT In Stock Notes: INCLUDES DRIP/CONDENSATE TRAY INCLUDES ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS
  • [7-31] RKW435A202AG GRILLE ASSY, AIR OUT In Stock Notes: INCLUDES DRIP/CONDENSATE TRAY INCLUDES ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS
  • [8] RKW436A200A FLAP(A) In Stock Notes: UPPER, WIDER FLAP, UPPER
  • [9] RKW436A201AB FLAP(B) In Stock Notes: LOWER, THINNER FLAP, LOWER
  • [10] RKW436A203A LOUVER In Stock Notes: LEFT/RIGHT AIR FLOW, 1pc ONLY Show Image
  • [10-11] RKW436A202B LOUVER ASSY In Stock Notes: RIGHT SIDE - COMES WITH 6 LOUVERS AND LOUVER PLATE CONNECTOR
  • [11] RKW129A209A PLATE,CONNECTING Contact   Contact
  • [12] RKW436A203A LOUVER In Stock Notes: LEFT/RIGHT AIR FLOW, 1pc ONLY Show Image
  • [12-13] RKW436A202C LOUVER ASSY In Stock Notes: LEFT SIDE - COMES WITH 6 LOUVERS AND LOUVER PLATE CONNECTOR (LEFT SIDE)
  • [13] RKW129A209A PLATE,CONNECTING Contact   Contact
  • [14] RKW935C200 COLLAR In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [15] RKW129A208A JOINT(L) In Stock Show Image
  • [15-21] RKW144A200A LINK ASSY In Stock Show Image
  • [16] RKW129A210 BRACKET,MOTOR(A) In Stock
  • [17] RKW144A201 LINK In Stock
  • [18] RKW144A202 CRANK(A) In Stock
  • [19] RKW144A203 CRANK(B) In Stock Notes: LINKAGE BETWEEN FLAP AND UP/DOWN LOUVER MOTOR HOUSING
  • [20] RKW144A204 CRANK(C) In Stock
  • [21] SSA512T049 MOTOR,STEPPING In Stock Notes: FOR FLAP -UP AND DOWN / HORIZONTAL LOUVER MOTOR, FOR FLAP Show Image
  • [22] RKW129A207A JOINT(R) Out of Stock
  • [22-25] RKW144A205A CRANK ASSY In Stock Show Image
  • [23] RKW129A211 BRACKET In Stock Show Image
  • [24] RKW144A204 CRANK(C) In Stock
  • [25] SSA512T049 MOTOR,STEPPING In Stock Notes: FOR FLAP -UP AND DOWN / HORIZONTAL LOUVER MOTOR, FOR FLAP Show Image
  • [26] RKW504A401 HARNESS ASSY In Stock Notes: FOR FLAP MOTOR - WIRING HARNESS FOR HORIZONTAL LOUVERS, FOR FLAP MOTOR Show Image
  • [27] RKW504A402 HARNESS ASSY In Stock Notes: FOR LOUVER MOTOR - HAS TWO PLUGS FOR LOUVER MOTORS, FOR LOUVER MOTOR Show Image
  • [28] SSA423A102A HOSE,DRAIN In Stock
  • [29] SSA326A043 PLUG Contact   Contact
  • [30] RKW116A400 BRACKET,PANEL(R) In Stock Show Image
  • [31] RKW116A401 BRACKET,PANEL(L) In Stock
  • [32] RKW111A200C BASE ASSY In Stock Notes: REAR CASING
  • [33] SSA512T099 MOTOR,DC In Stock Notes: (FOR IMPELLER) COMES WITH WIRING HARNESS, FOR IMPELLER Show Image
  • [34] SSA431G043A IMPELLER In Stock Notes: FAN BARREL / FAN SCROLL - INDOOR Show Image
  • [35] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING
  • [36] RKW129A201 BRACKET,MOT In Stock Show Image
  • [37] RKW129A202 BRACKET,MOT In Stock
  • [38] RKW032A200A PLATE , INSTALLATION In Stock Notes: BACKING PLATE
  • [39] PHA129A302A COVER ASSY(PIPE) In Stock Show Image
  • [40] RKW132A400 LID(R) In Stock Show Image
  • [41] RKW132A401 LID(L) In Stock Notes: LEFT HAND SIDE LID (WHEN LOOKING AT UNIT) Show Image
  • [42-43] RKW132A403 LID ASSY(TERMINAL) In Stock Show Image
  • [43] RSA011H027 LABEL,NOTICE Contact   Contact
  • [44] RKW129A405 COVER,PIPE In Stock
  • [45] RKW129A213 HOLDER, FILTER In Stock Notes: FILTER HOLDER ONLY - FILTERS FOR FILTER HOLDER IN HEAT EXCH. AND CONTROL, 1pc ONLY Show Image
  • [46] SSA913A007A SCREW,TAP In Stock Notes: 1PC ONLY, 4X14
SKU: SRK71ZMA-S PANEL AND FAN ASSY Category:
