SRK63ZRA-W PANEL AND FAN ASSY

SRK63ZRA-W PANEL AND FAN ASSY

Available Parts

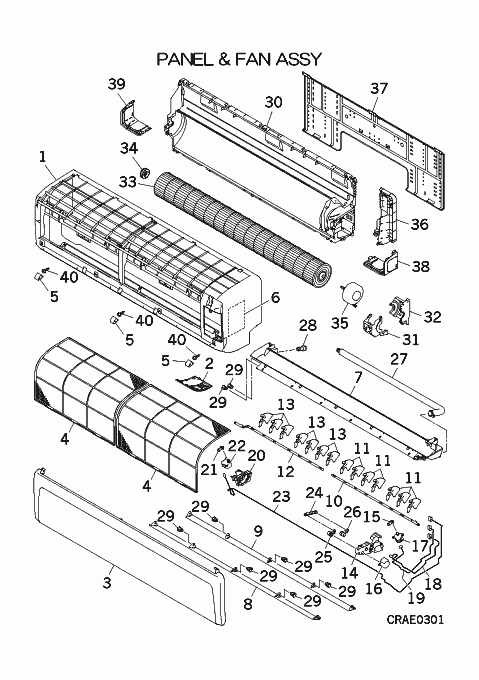

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RLD122A001B PANEL,FRONT In Stock Notes: ONLY SUPPLY WHEN CUSTOMER DOES NOT WANT FILTER (OPENING) COVER
  • [1-6] RLD102A001W PANEL ASSY,FRONT In Stock
  • [2] RLD133A001 PLATE ASSY,ORNAMENT In Stock Substitute: RLD133A001G Notes: FRONT FACIA, COVERS RECIEVER/DISPLAY PCB - HAS ON/OFF BUTTON
  • [3] RLD435A003L PANEL ASSY AIR IN In Stock Notes: AIR INLET PANEL / FILTER COVER. FOR ARM INLET/HINGE/CLIPS USE - LEFT = RLD129A009 / RIGHT = RLD129A008
  • [4] RLD437A001 FILTER,AIR In Stock Notes: RETURN AIR / DUST FILTER - UNIT HAS 2 - SOLD INDIVIDUALLY, W507.5xH401.5(t2)
  • [5] RLD129A007 CAP In Stock
  • [6] RLD011G001 LABEL,WIRING Contact   Contact
  • [7] RLD435A001C GRILLE ASSY, AIR OUT In Stock Notes: INCLUDES DRIP/CONDENSATE TRAY ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS
  • [7-29] RLD435A001C GRILLE ASSY, AIR OUT In Stock Notes: INCLUDES DRIP/CONDENSATE TRAY ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS
  • [8] RLD436A005A FLAP(U) In Stock Notes: UPPER HORIZONTAL FLAP
  • [9] RLD436A006B FLAP(L) In Stock Notes: (LOWER HORIZONTAL FLAP)
  • [10] RLD129A010 PLATE,CONNECTING(R) Contact   Contact
  • [10-11] RLD436A003 LOUVER ASSY(R) In Stock Notes: INCLUDES 7X LOUVER BLADES AND A CONNECTING PLATE - RIGHT SIDE
  • [11] RLD436A007 LOUVER In Stock
  • [12] RLD129A011 PLATE,CONNECTING(L) Contact   Contact
  • [12-13] RLD436A004 LOUVER ASSY(L) In Stock Notes: INCLUDES 7X LOUVER BLADES AND A CONNECTING PLATE - LEFT SIDE
  • [13] RLD436A007 LOUVER In Stock
  • [14] RLD129A014A BRACKET,MOTOR(R) In Stock
  • [14-19] RLD129A012A BRACKET ASSY(R) In Stock
  • [15] RLB144A005 CRANK(C) In Stock
  • [16] SSA512T049 MOTOR,STEPPING In Stock Notes: FOR FLAP -UP AND DOWN / HORIZONTAL LOUVER MOTOR, FOR FLAP Show Image
  • [17] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049 Notes: FOR LOUVER
  • [18] RSA504A031 HARNESS ASSY In Stock Notes: WIRING HARNESS FOR UP/DOWN FLAP MOTOR, FOR FLAP MOTOR
  • [19] RSA504A031A HARNESS ASSY In Stock Notes: FOR RIGHT LOUVER MOTOR(RIGHT), FOR LOUVER MOTOR(RIGHT) Show Image
  • [20] RLD129A015 BRACKET,MOTOR(L) In Stock Show Image
  • [20-23] RLD129A013 BRACKET ASSY(L) In Stock
  • [21] RLB144A005 CRANK(C) In Stock
  • [22] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049 Notes: FOR LOUVER
  • [23] RSA504A031C HARNESS ASSY In Stock Notes: WIRING HARNESS FOR LEFT SIDE LOVUER MOTOR, FOR LOUVER MOTOR(LEFT) Show Image
  • [24] RLD144A002 LINK In Stock
  • [24-26] RLD144A001A LINK ASSY In Stock
  • [25] RLD144A003 CRANK(U) Out of Stock Show Image
  • [26] RLD144A004A CRANK(L) Out of Stock Show Image
  • [27] SSA423A102A HOSE,DRAIN In Stock
  • [28] SSA326A047 PLUG In Stock Notes: PLUG FOR CONDENSATE/DRAIN TRAY.
  • [29] RLD129A021 SHAFT In Stock Notes: LOCKS HORIZONTAL UP/DOWN LOUVER ONTO INDOOR HEAD UNIT.- SOLD INDIVIDUALLY, 3x10 Show Image
  • [30] RLD111A001B BASE ASSY In Stock
  • [31] RLD129A001 CASE,MOTOR(U) Contact   Contact
  • [32] RLD129A018 CASE ASSY(L) Contact   Contact
  • [33] SSA431G052 IMPELLER In Stock
  • [34] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING
  • [35] SSA512T099A MOTOR,DC In Stock Notes: INDOOR FAN MOTOR, FOR IMPELLER Show Image
  • [36] RLD116A001A BRACKET,CONTROL Contact   Contact
  • [37] RLD032A001 PLATE,INSTALLATION In Stock Substitute: RLD032A001B
  • [38] RLD132A001B LID (R) In Stock Notes: RIGHT SIDE LID
  • [39] RLD132A002B LID(L) In Stock
  • [40] SSA913A007 SCREW In Stock Notes: 1PC ONLY, 4x12 Show Image
SKU: SRK63ZRA-W PANEL AND FAN ASSY Category:
