SRK63ZRA-W HEAT EXCH. AND CONTROL

SRK63ZRA-W HEAT EXCH. AND CONTROL

Available Parts

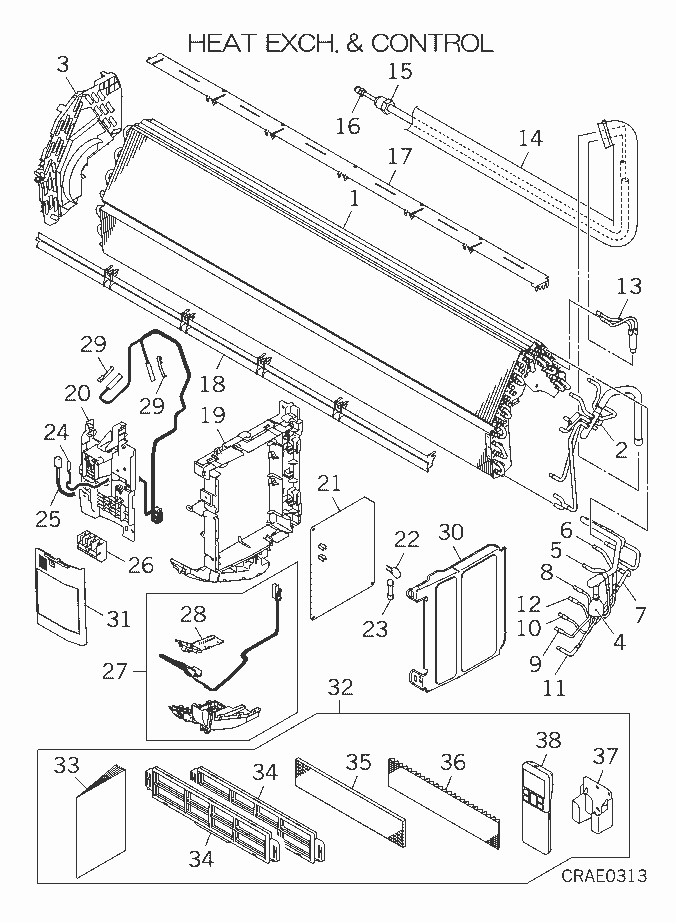

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-18] RLD301A001L HEAT EXCH ASSY(AIR) In Stock
  • [2] RLD315D001B HEADER ASSY Contact   Contact
  • [3] RLD129A003 BRACKET(L) Contact   Contact
  • [4] RSA315A006 DISTRIBUTOR Contact   Contact
  • [4-12] RLD315A003 DISTRIBUTOR ASSY Contact   Contact
  • [5] RLD321A023 PIPE ASSY Contact Notes: D2.8xD4.0 L100   Contact
  • [6] RLD321A024 PIPE ASSY Contact Notes: D2.8xD4.0 L100   Contact
  • [7] RLD321A025 PIPE ASSY Contact Notes: D2.8xD4.0 L100   Contact
  • [8] RLD315B001 CAPILLARY Contact Notes: D2.8xD4.0 L100   Contact
  • [9] RLD315B002 CAPILLARY Contact Notes: D2.8xD4.0 L100   Contact
  • [10] RLD315B003 CAPILLARY Contact Notes: D2.8xD4.0 L100   Contact
  • [11] RLD321A026 PIPE ASSY Contact Notes: D2.8xD4.0 L100   Contact
  • [12] RLD315B004 CAPILLARY Contact Notes: D2.8xD4.0 L100   Contact
  • [13] RLD321A051 PIPE ASSY Contact   Contact
  • [14-16] RLD321A001F PIPE ASSY Contact   Contact
  • [15] SSA323F012B UNION Contact Notes: GAS   Contact
  • [16] SSA323F088A UNION(SLD) In Stock Notes: FOR LIQ., FOR LIQ.
  • [17] RLD129A004 PLATE,BAFFLE Contact   Contact
  • [18] RLD129A005 SEAL(B) Contact   Contact
  • [19] PHA142A401 BOX ASSY,CONTROL In Stock
  • [20] RLD129A016 COVER,BEND Contact   Contact
  • [21-23] RLA505A001MR PWB In Stock Notes: INDOOR MAIN PC BOARD
  • [22] SSA555B050C VARISTOR In Stock Notes: Z1, Z1 Show Image
  • [23] SSA564A132 FUSE(CURRENT) In Stock Notes: 3.15A, 3.15A Show Image
  • [24] SSA551A223L SENSOR ASSY In Stock Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.) Show Image
  • [25] SSA551B017C SENSOR(HUMIDITY) In Stock Notes: HUMIDITY SENSOR Show Image
  • [26] SSA561B702B BLOCK,TERMINAL In Stock Notes: T2 Show Image
  • [27] RLD503A001 DISPLAY ASSY In Stock Notes: DOES NOT INCLUDE FRONT FACIA - INCLUDES RECEIVER BOARD HOUSING AND HARNESS Show Image
  • [28] RLD505A001 PWB ASSY(DISPLAY) In Stock Notes: INDOOR RECEIVER / DISPLAY BOARD WITH HARNESS Show Image
  • [29] RKJ941F001A SPRING,LEAF Contact   Contact
  • [30] RLD142A001 LID,CONTROL Contact   Contact
  • [31] RLD132A003 LID ASSY(TERMINAL) Contact   Contact
  • [32] RLD008A001AF PARTS,STANDARD Contact   Contact
  • [33] RLD012A015C MANUAL,INSTRUCTION Contact   Contact
  • [34] RKX129A014 HOLDER,FILTER In Stock Notes: FILTER HOLDER - UNIT HAS 2 - SOLD INDIVIDUALLY, 1pc ONLY
  • [35] RKT437A005 FILTER,CLEAN In Stock Notes: PHOTO-CATALYTIC / DEODORIZING FILTER - TRIANGULAR HONEYCOMB SHAPE, 1pc ONLY
  • [36] RKT437A801D FILTER,CLEAN(BIO) In Stock Notes: ALLERGEN FILTER
  • [37] RLA032A700 HOLDER(REMO-CON) In Stock Notes: REMOTE CONTROL HOLDER/CRADLE Show Image
  • [38] RLA502A700R CONTROL ASSY,REMOTE In Stock Notes: DOES NOT COME WITH HOLDER PART NUMBER - RLA032A700 Show Image
  • [39] RLD011F006A LABEL,MODEL NAME Contact   Contact
SKU: SRK63ZRA-W HEAT EXCH. AND CONTROL Category:
