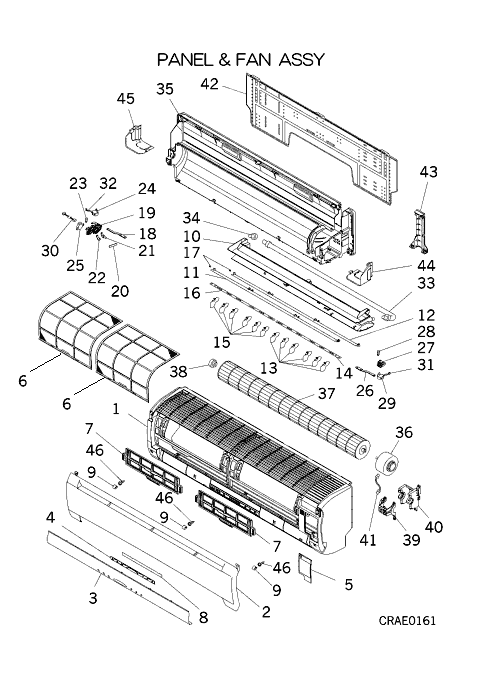

SRK63ZEA-S1 PANEL AND FAN ASSY

SRK63ZEA-S1 PANEL AND FAN ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RKW122A200 PANEL ASSY FRONT In Stock
  • [1-9] RKW102A200L FRONT PANEL In Stock
  • [2] RKW435A201 PANEL,AIR I In Stock Notes: AIR INLET PANEL / FILTER COVER
  • [3] RKW133A200M PLATE DISPLAY In Stock
  • [4] RKW133A201 LENS In Stock Show Image
  • [5] RKW132A203 LID(TERMINA In Stock Show Image
  • [6] RKW437A200 FILTER, AIR In Stock Notes: SOLD INDIVIDUALLY (MODEL USES 2), 1pc ONLY Show Image
  • [7] RKW129A213 HOLDER, FILTER In Stock Notes: FILTER HOLDER ONLY - FILTERS FOR FILTER HOLDER IN HEAT EXCH. AND CONTROL, 1pc ONLY Show Image
  • [8] RKW133A202 FILM,CONCEA In Stock Show Image
  • [9] RKW129A214 CAP In Stock Show Image
  • [10] RKW435A202AC GRILLE ASSY, AIR OUT In Stock Notes: INCLUDES DRIP/CONDENSATE TRAY ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS, DRAIN PAN ASSY
  • [10-34] RKW435A202AC GRILLE ASSY, AIR OUT In Stock Notes: INCLUDES DRIP/CONDENSATE TRAY ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS, DRAIN PAN ASSY
  • [11] RKW436A200 FLAP(A) In Stock Notes: UPPER HORIZONTAL FLAP, UPPER
  • [12] RKW436A201AA FLAP(B) In Stock Notes: LOWER HORIZONTAL FLAP, LOWER
  • [13] RKW436A203 LOUVER In Stock Notes: 1PC ONLY, CONTROLS AIR LEFT TO RIGHT, 1pc ONLY Show Image
  • [13-14] RKW436A202 LOUVER ASSY In Stock Notes: INCLUDES 6X LOUVER BLADES AND A CONNECTING PLATE - RIGHT SIDE
  • [14] RKW436A202 LOUVER ASSY In Stock Notes: INCLUDES 6X LOUVER BLADES AND A CONNECTING PLATE - RIGHT SIDE
  • [15] RKW436A203 LOUVER In Stock Notes: 1PC ONLY, CONTROLS AIR LEFT TO RIGHT, 1pc ONLY Show Image
  • [15-16] RKW436A202A LOUVER ASSY In Stock Notes: INCLUDES 6X LOUVER BLADES AND A CONNECTING PLATE - LEFT SIDE
  • [16] RKW436A202 LOUVER ASSY In Stock Notes: INCLUDES 6X LOUVER BLADES AND A CONNECTING PLATE - RIGHT SIDE
  • [17] RKW935C200 COLLAR In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [18] RKW129A208 JOINT(L) In Stock Show Image
  • [18-25] RKW144A200 LINK ASSY In Stock
  • [19] RKW129A210 BRACKET,MOTOR(A) In Stock
  • [20] RKW144A201 LINK In Stock
  • [21] RKW144A202 CRANK(A) In Stock
  • [22] RKW144A203 CRANK(B) In Stock Notes: LINKAGE BETWEEN FLAP AND UP/DOWN LOUVER MOTOR HOUSING
  • [23] RKW144A204 CRANK(C) In Stock
  • [24] SSA512T017 MOTOR,STEPPING In Stock Substitute: SSA512T096 Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
  • [25] SSA512T049 MOTOR,STEPPING In Stock Notes: FOR FLAP -UP AND DOWN / HORIZONTAL LOUVER MOTOR, FOR FLAP Show Image
  • [26] RKW129A207 JOINT(R) In Stock Show Image
  • [26-29] RKW144A205 CRANK ASSY In Stock Show Image
  • [27] RKW129A211 BRACKET In Stock Show Image
  • [28] RKW144A204 CRANK(C) In Stock
  • [29] SSA512T017 MOTOR,STEPPING In Stock Substitute: SSA512T096 Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
  • [30] RKS504A100H HARNESS ASS In Stock Notes: HARNESS FOR FLAP MOTOR, FOR FLAP MOTOR Show Image
  • [31] RKS504A100C HARNESS In Stock Notes: FOR LOUVER MOTOR(RIGHT), FOR LOUVER MOTOR(RIGHT)
  • [32] RKS504A100J HARNESS ASS In Stock Notes: FOR LOUVER MOTOR (LEFT) - HARNESS FOR LEFT LOUVER MOTOR, FOR LOUVER MOTOR(LEFT) Show Image
  • [33] SSA423A102A HOSE,DRAIN In Stock
  • [34] SSA326A041 PLUG In Stock Substitute: SSA326A043 Show Image
  • [35] RKW111A200A BASE In Stock Notes: BASE ASSY
  • [36] SSA512T118A MOTOR, DC In Stock Notes: FOR IMPELLER Show Image
  • [37] SSA431G043A IMPELLER In Stock Notes: FAN BARREL / FAN SCROLL - INDOOR Show Image
  • [38] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING
  • [39] RKW129A201 BRACKET,MOT In Stock Show Image
  • [40] RKW129A202 BRACKET,MOT In Stock
  • [41] RKS504A601C HARNESS ASS In Stock Notes: FOR FAN MOTOR, FOR FAN MOTOR
  • [42] RKW032A200A PLATE , INSTALLATION In Stock Notes: BACKING PLATE
  • [43] RKW129A212 COVER(PIPE) In Stock Show Image
  • [44] RKW132A200 LID(R) In Stock Show Image
  • [45] RKW132A201 LID(L) In Stock Show Image
  • [46] SSA913A007A SCREW,TAP In Stock Notes: 1PC ONLY, 4X14
