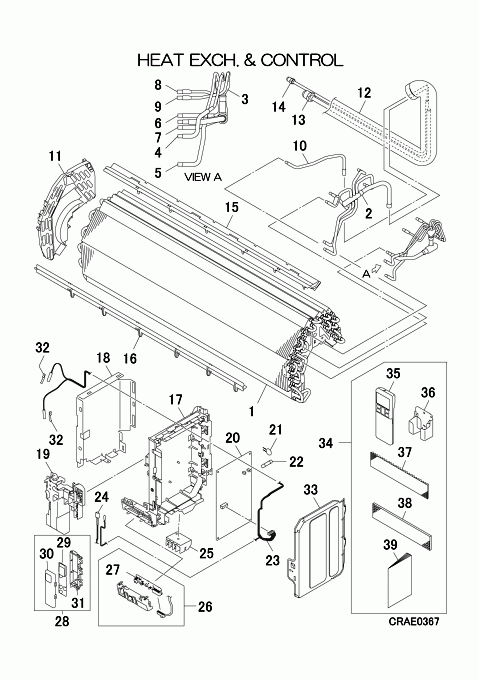

SRK60ZSXA-WF HEAT EXCH. AND CONTROL

SRK60ZSXA-WF HEAT EXCH. AND CONTROL

SRK60ZSXA-WF HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-16] In Stock
RLF301A202B
HEAT EXCH ASSY (AIR)
[2] Contact
RLF315D201
HEADER ASSY
Contact
[3] Contact
SSA315A252D
DISTRIBUTOR
Contact
[3-9] Contact
RLF315A201A
DISTRIBUTOR ASSY
Contact
[4] Contact
RLF321A048
PIPE ASSY
Contact
Notes: D2.8xD4.0 L120, f2.8”f4.0 L120
[5] Contact
RLF321A060
PIPE ASSY
Contact
Notes: D2.8xD4.0 L120
[6] Contact
RLF321A050
PIPE ASSY
Contact
Notes: D2.8xD4.0 L120, f2.8”f4.0 L120
[7] Contact
RLF321A051
PIPE ASSY
Contact
Notes: D2.8xD4.0 L120, f2.8”f4.0 L120
[8] Contact
RLF315B009
CAPILLARY
Contact
Notes: D2.8xD4.0 L120, f2.8”f4.0 L120
[9] Contact
RLF315B010
CAPILLARY
Contact
Notes: D2.8xD4.0 L120, f2.8”f4.0 L120
[10] Contact
RLF321A039
PIPE
Contact
[11] Contact
RLF129A200
BRACKET(L)
Contact
[12-14] In Stock
RLF321A025A
PIPE ASSY
[13] Contact
SSA323F091B
UNION (SLD)
Contact
Notes: FOR GAS
[14] Contact
SSA323F091A
UNION (SLD)
Contact
Notes: FOR LIQ.
[15] Contact
RLF129A201
PLATE,BAFFLE
Contact
[16] Contact
RLF129A202
SEAL
Contact
Show Image
RLF129A202
[17] In Stock
RLF142A202
BOX,CONTROL
[17-18] In Stock
RLF142A201
BOX ASSY,CONTROL
[18] Contact
RLF132A200
COVER,CONTROL
Contact
[19] Contact
RLF129A231
COVER, BEND
Contact
[20] In Stock
RLF505A200CF
PWB ASSY
[21] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[22] In Stock
SSA564A132
FUSE(CURRENT)
Notes: F1 3.15A, 3.15A Show Image
SSA564A132
[23] In Stock
SSA551A223R
SENSOR ASSY
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.) Show Image
SSA551A223R
[24] In Stock
SSA551B017F
SENSOR(HUMIDITY)
[25] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: TB1, T2 Show Image
SSA561B702B
[26] In Stock
RLF503A200
DISPLAY ASSY
Show Image
RLF503A200
[27] In Stock
RLF505A202A
PWB ASSY (DISPLAY)
Show Image
RLF505A202A

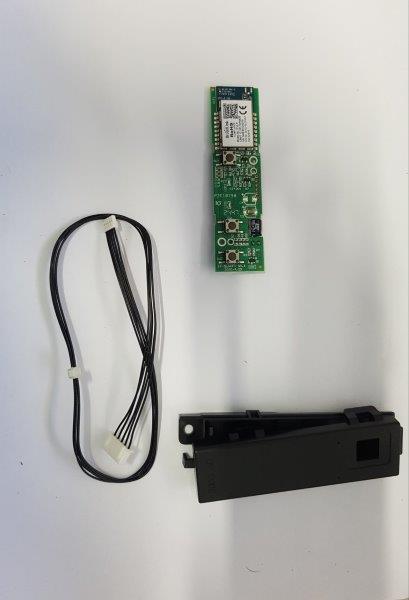

[28-31] In Stock
RLF503A202A
WF ASSY (SPARE)
Notes: ONLY FOR SUPPLY PARTS
[29] In Stock
RLH505A002
PWB (WIFI)
Notes: WIFI PWB. (NOT MAIN PWB). - does NOT include wiring harness. For wiring harness please order assembly Show Image
RLH505A002
[30] In Stock
RLF129A229
HOLDER, WF (U)
[31] In Stock
RLF129A230
HOLDER, WF (L)
[32] In Stock
PSA941F001
SPRING LEAF
Notes: 1pc ONLY Show Image
PSA941F001
[33] In Stock
RLF142A200
LID,CONTROL
Show Image
RLF142A200
[34] In Stock
RLF008A202G
PARTS, STANDARD

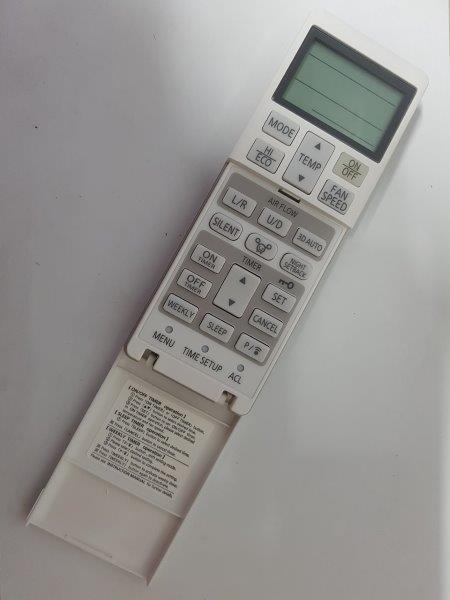

[35] In Stock
RLA502A704
REMOTE CONTROL
Notes: remote holder = RLA032A700 Show Image
RLA502A704
[36] In Stock
RLA032A700
HOLDER(REMO-CON)
Notes: Holder/Cradle for Remote control Show Image
RLA032A700
[37] In Stock
RKT437A801D
FILTER,CLEAN(BIO)
Notes: ALLERGEN FILTER
[38] In Stock
RKT437A005
FILTER,CLEAN
Notes: PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape Show Image
RKT437A005
[39] Contact
RLF012A221
MANUAL, INSTRUCTION
Contact
[40] Contact
RLF011F202Y
LABEL, MODEL NAME
Contact
SKU: SRK60ZSXA-WF HEAT EXCH. AND CONTROL Category:
