SRK60ZJX-S1/1 PANEL AND FAN ASSY

SRK60ZJX-S1/1 PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

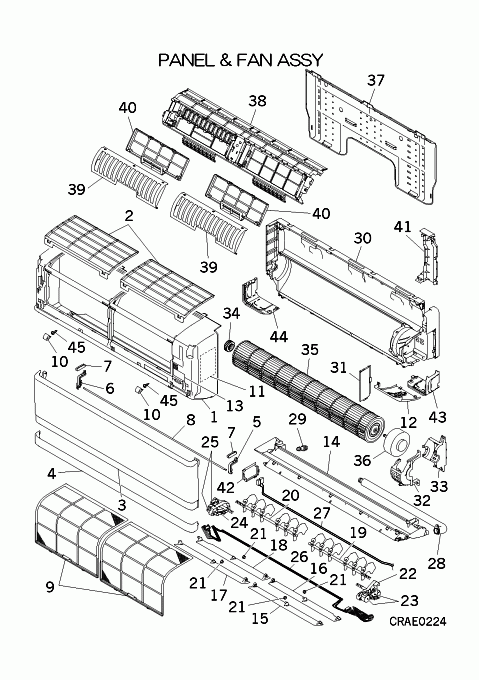

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RKY122A002F
PANEL ASSY FRONT
Notes: !
[1-13] In Stock
RKY102A001F
PANEL ASSY
Notes: FRONT COVER ASSEMBLY
[2] In Stock
RKY435A003B
GRILLE, AIR IN (TOP)
[3-8] In Stock
RKY435A004F
PANEL ASSY, AIR IN
Notes: AIR INTLET PANEL ASSY / FILTER COVER
[4] In Stock
RKY435A007F
PANEL, ORNAMENT
[5] In Stock
RKY144A005
LINK A(R)
Notes: RIGHT Show Image
RKY144A005
[6] Out of Stock
RKY144A006
LINK A(L)
Notes: LEFT
[7] In Stock
RKY144A007
LINK A
RKY144A007
[8] In Stock
RKY144A008
SHAFT
[9] In Stock
RKY437A001
FILTER
Notes: W348.5XH339(T2), RETURN AIR / DUST FILTER - UNIT HAS 2 - SOLD INDIVIDUALLY Show Image
RKY437A001
[10] In Stock
RKY129A012
COVER
RKY129A012
[11] Contact
RKY011G001B
LABEL,WIRING
Contact
Notes: !

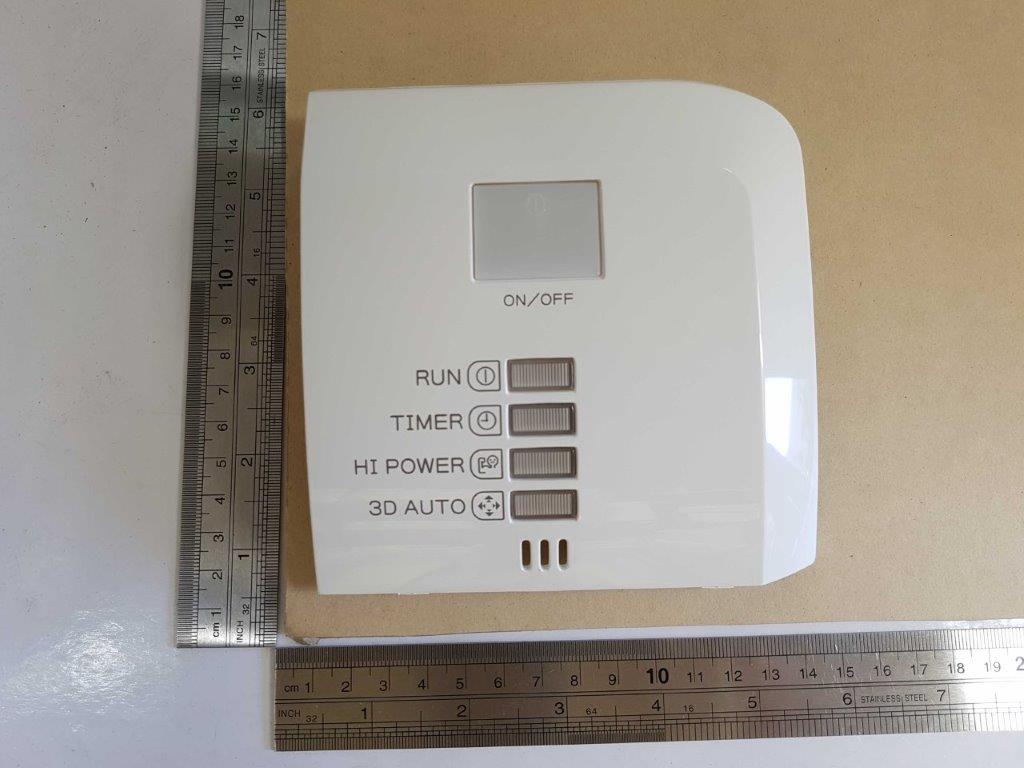

[12] In Stock
RKY133A008M
PLATE ASSY, ORNAMENT
Notes: PANEL WITH RUN,TIME,HI POWER,3D AUTO & ON / OFF MARKERS & ON/OFF PUSH BUTTOM. Show Image
RKY133A008M
[13] Contact
RSA011H026
LABEL
Contact
[14] Contact
RKY435A002
GRILLE,AIR OUT
Contact
Notes: !, NOT FOR SALE-GO TO GRILLE,AIR OUT ''ASSY''
[14-29] In Stock
RKY435A001B
GRILLE ASSY,AIR OUT
Notes: INCLUDES DRIP/CONDENSATE TRAY - LOUVERS, LOUVER HARNESSES AND LOUVER MOTORS
[15] In Stock
RKY436A001
LOUVER
Notes: FLAP ASSY(A) - WIDER/UPPER FLAP
[16] In Stock
RKY436A003
LOUVER
Notes: FLAP ASSY(B) - THINNER/LOWER FLAP
[17] In Stock
RKY436A005
LOUVER
Notes: WIDER/UPPER FLAP
[18] In Stock
RKY436A007
LOUVER
Notes: THINNER/LOWER FLAP Show Image
RKY436A007
[19] In Stock
RKY436A009
LOUVER ASSY
Notes: CONNECTIING PLATE & 6 LOUVER BLADES - RIGHT SIDE Show Image
RKY436A009

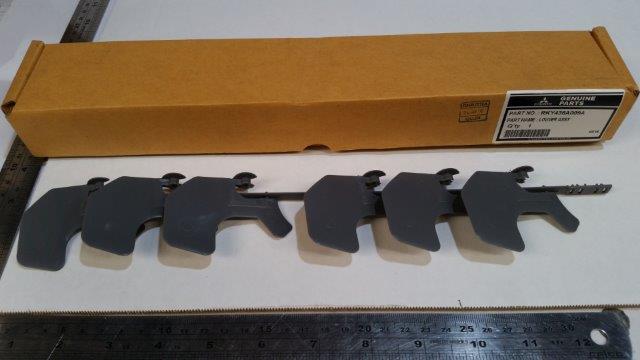

[20] In Stock
RKY436A009A
LOUVER ASSY
Notes: CONNECTIING PLATE & 6 LOUVER BLADES - LEFT SIDE Show Image
RKY436A009A
[21] Out of Stock
RKW935C200
COLLAR
Notes: ***SOLD INDIVIDUALLY***

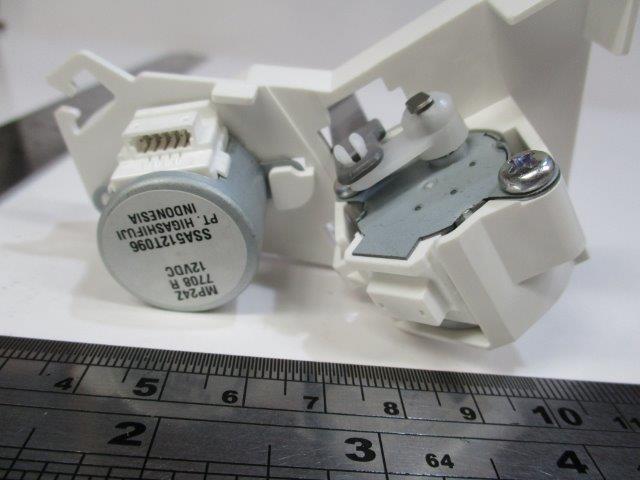

[22-23] Out of Stock
RKY144A010
LINK ASSY(R)
Notes: RIGHT Show Image
RKY144A010
[23] In Stock
SSA512T158
MOTOR STEPPING
SSA512T158

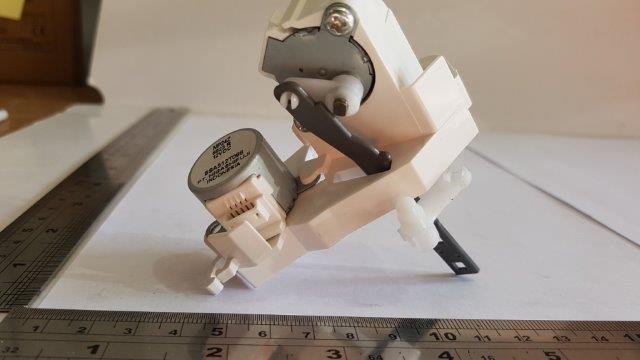

[24-25] In Stock
RKY144A011
LINK ASSY(L)
Notes: LEFT Show Image
RKY144A011
[25] In Stock
SSA512T158
MOTOR STEPPING
SSA512T158
[26] In Stock
RKY504A003A
HARNESS ASSY
Notes: FOR FLAP & LOUVER

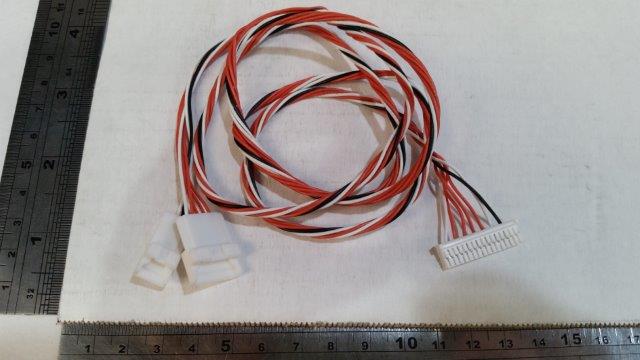

[27] In Stock
RKY504A004A
HARNESS ASSY
RKY504A004A
[28] In Stock
SSA423A114
HOSE,DRAIN
[29] In Stock
SSA326A047
PLUG
Notes: Plug for condensate/drain tray.
[30] In Stock
RKY111A001
BASE ASSY
[31] Contact
RKY129A002
PLATE,BASE
Contact

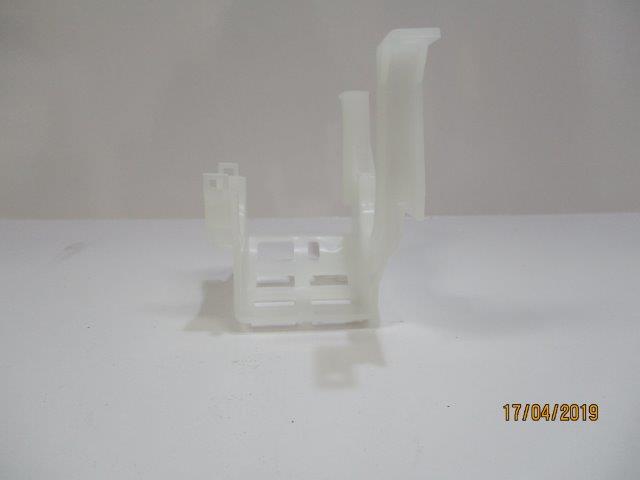

[32] In Stock
RKY129A003
BRACKET,MOTOR(U)
Notes: FRONT Show Image
RKY129A003

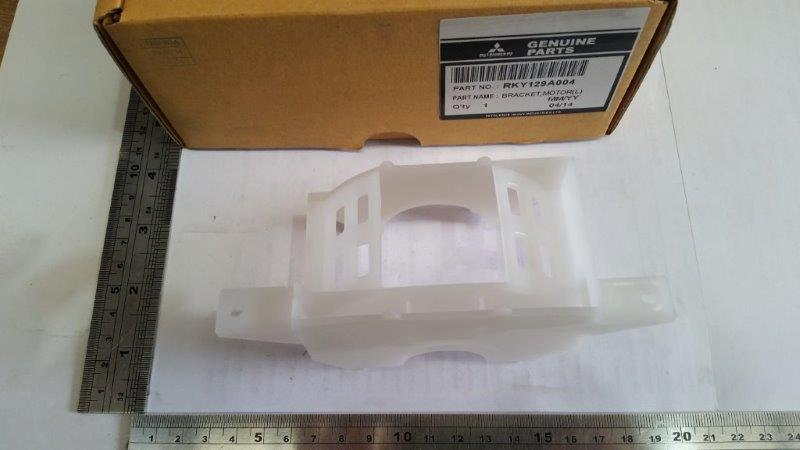

[33] In Stock
RKY129A004
BRACKET,MOTOR(L)
Notes: REAR Show Image
RKY129A004
[34] In Stock
SSA923C136
BEARING, PLANE
Notes: END BEARING Show Image
SSA923C136
[35] In Stock
SSA431G050A
IMPELLER
Notes: INDOOR FAN BARREL
[36] In Stock
SSA512T127D
MOTOR DC
Notes: FOR IMPELLER
[37] In Stock
RKY032A001
PLATE,INSTALLATION
[38] In Stock
RKY129A036
HOLDER,FILTER
Notes: !
[38-40] In Stock
RKY129A023B
FILTER UNIT ASSY
[39] In Stock
RKY129A025
HOLDER,FILTER(R)
Notes: !
[40] In Stock
RKY129A028
HOLDER,FILTER
Notes: ! Show Image
RKY129A028
[41] Contact
RKY129A034
COVER ASSY(PIPE)
Contact
[42] In Stock
RKY129A030
COVER,CONNECTOR
[43] In Stock
RKY132A001A
LID
[44] In Stock
RKY132A002
LID(L)
[45] In Stock
SSA913A007
SCREW
Notes: 4X14, 1pc ONLY Show Image
SSA913A007
SKU: SRK60ZJX-S1/1 PANEL AND FAN ASSY Category:
