SRK568HENF-A PANEL AND FAN ASSY

SRK568HENF-A PANEL AND FAN ASSY

Available Parts

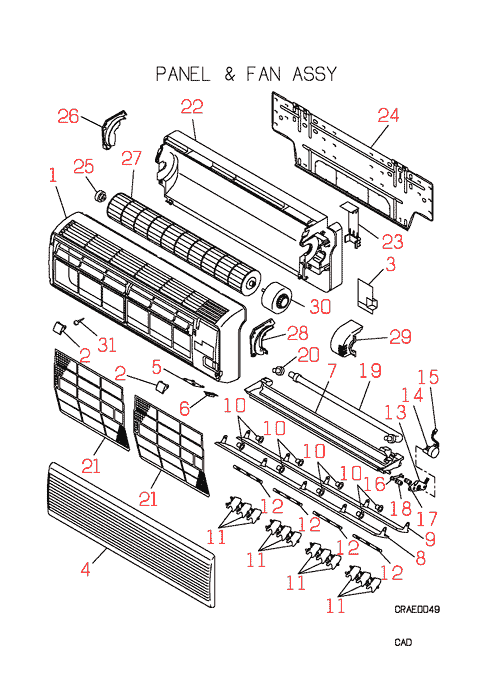

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RKS122A001B PANEL FRONT In Stock
  • [1-6] RKS102A002D PANEL,FRONT Contact   Contact
  • [2] RKS129A006 CAP Contact   Contact
  • [3] RKS132A001 LID Contact   Contact
  • [4] RKS435A001B GRILLE,AIR Contact   Contact
  • [5-6] RKS133A005B PLATE ASSY Contact   Contact
  • [6] RKS133A003 PLATE Contact   Contact
  • [7] RKS435A003 GRILLE,AIR Contact   Contact
  • [7-20] RKS435A002C GRILLE,INLT Contact   Contact
  • [8] RKS436A001 FLAP(A) In Stock Notes: LOWER
  • [9] RKS436A002 FLAP(B) In Stock Notes: UPPER
  • [10] RKR935C001 COLLAR In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY Show Image
  • [11] RKS436A006 LOUVER Contact Notes: OUT OF PRODUCTION, 1pc ONLY   Contact

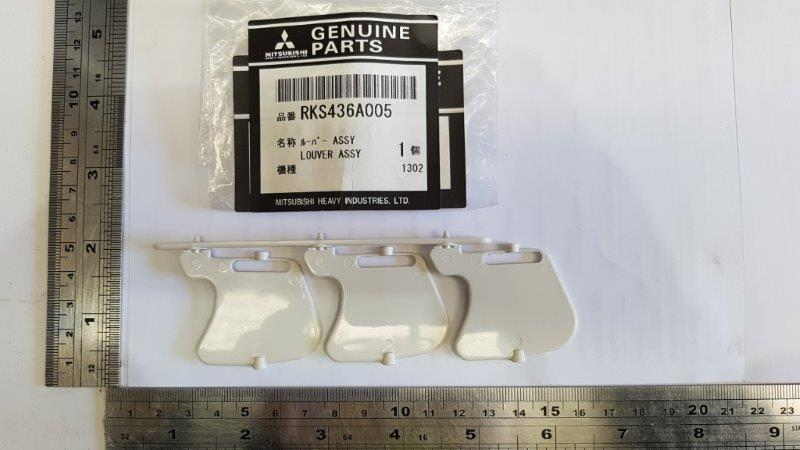

  • [11-12] RKS436A005 LOUVER ASSY In Stock Show Image
  • [12] RKS129A013 PLATE,CONEC Contact   Contact

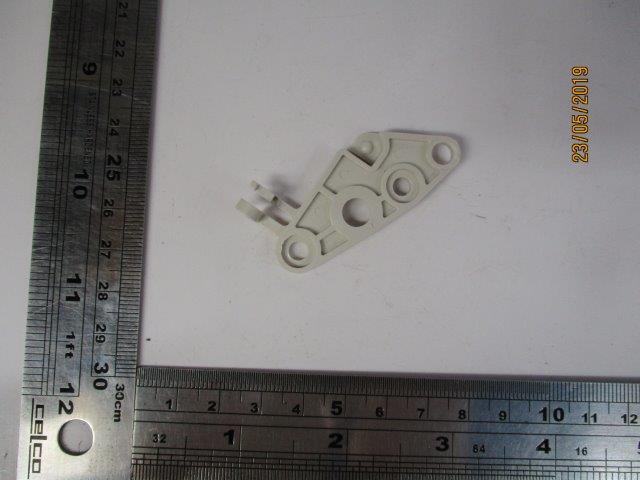

  • [13] RKR129A009 BRACKET MOT In Stock Show Image
  • [13-18] RKR144A006 LINK,ASSY Contact   Contact
  • [14] SSA512T017 MOTOR,STEPPING In Stock Substitute: SSA512T096 Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
  • [15] RKR504A003 HARNESS In Stock
  • [16] RKR144A007 LINK Contact   Contact
  • [17] RKR144A003 CLANK Contact   Contact
  • [18] RKR144A004 CLANK Contact   Contact
  • [19] RSA423A001 DRAIN HOSE In Stock Substitute: SSA423A073
  • [20] SSA326A038 PLUG In Stock Show Image
  • [21] RKS437A001 FILTER,AIR Out of Stock Notes: RETURN AIR FILTER - SOLD INDIVIDUALLY, 1pc ONLY
  • [22] RKS111A001 BASE ASSY Contact   Contact
  • [23] RKS129A007 COVER PIPE Contact   Contact
  • [24] RKS032A001 PLATE INSU Contact   Contact
  • [25] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING

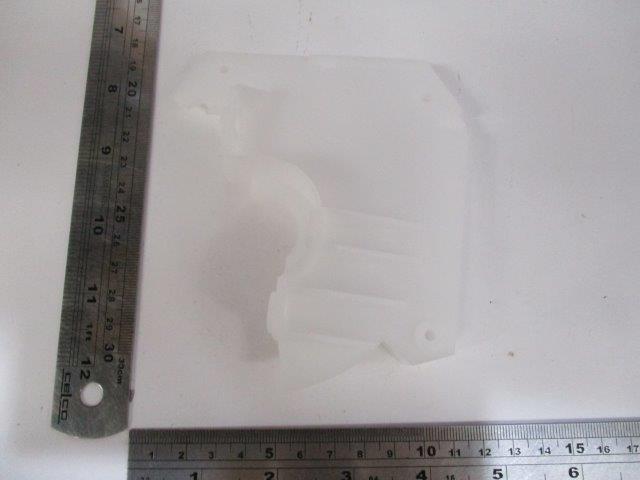

  • [26] RKS129A002 BRACKET,L In Stock Notes: LEFT Show Image
  • [27] SSA431G026 IMPELLER In Stock
  • [28] RKS129A001 BRACKET,R Contact Notes: RIGHT   Contact
  • [29] RKS129A008 BRACKET,MOT Contact   Contact

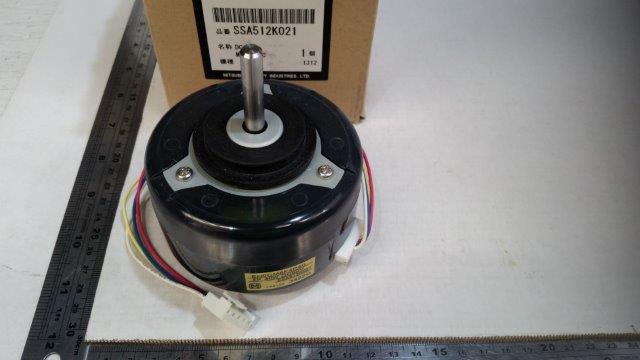

  • [30] SSA512K021 MOTOR,DC In Stock Show Image
  • [31] SSA913A007B SCREW TAP Contact Notes: 1PC ONLY   Contact
SKU: SRK568HENF-A PANEL AND FAN ASSY Category:
