SRK50ZSXA-W PANEL AND FAN ASSY

SRK50ZSXA-W PANEL AND FAN ASSY

Available Parts

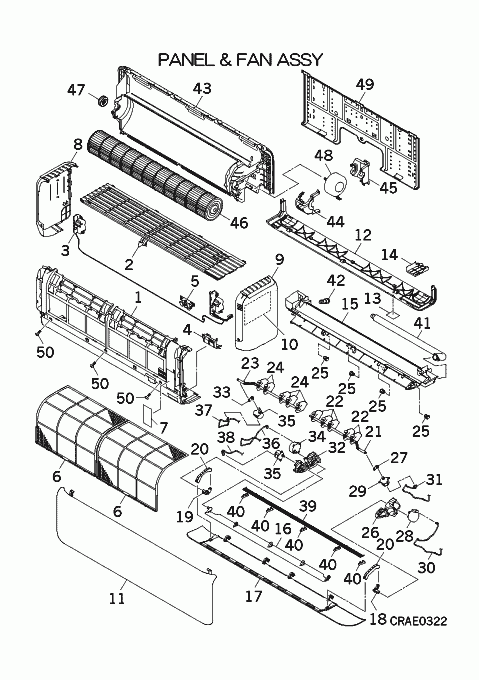

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RLF122A200 PANEL,FRONT Contact Substitute: RLF122A200C Notes: SUBSTITUTE= RLF122A200C   Contact
  • [1-7] RLF102A201S PANEL ASSY In Stock
  • [2] RLF435A203 GRILLE,AIR IN(TOP) Contact   Contact
  • [3] RLF142A203 BOX ASSY,GEAR In Stock
  • [4] RLF133A200 ORNAMENT ASSY Contact   Contact
  • [5] RLF129A213 SENSOR ASSY In Stock Show Image
  • [6] RLF437A200 FILTER,AIR Out of Stock Notes: W355XH353(T2), W355xH353(t2)
  • [7] RSA011H056 LABEL,NOTICE Contact   Contact
  • [8] RLF123A202 PANEL ASSY,SIDE(L) Contact   Contact
  • [9-10] RLF123A200M PANEL ASSY,SIDE(R) Out of Stock
  • [10] RLF011G200 LABEL,WIRING Contact   Contact
  • [11] RLF435A202H PANEL ASSY, AIR IN In Stock
  • [12-13] RLF125A200J PANEL ASSY, BOTTOM In Stock
  • [13] RSA011H054 LABEL,NOTICE Contact   Contact
  • [14] RLA129A023 COVER ASSY(TB) In Stock
  • [15] RLF435A201 GRILLE,AIR OUTLET In Stock
  • [15-42] RLF435A200H GRILLE ASSY In Stock
  • [16] RLF436A200 FLAP(U) In Stock Notes: UPPER HORIZONTAL FLAP, UPPER
  • [17] RLF436A201 FLAP ASSY(L) In Stock Notes: LOWER HORIZONTAL FLAP, LOWER
  • [18] RLF144A200A CRANK,FLAP(R) In Stock
  • [19] RLF144A201 CRANK,FLAP(L) In Stock Substitute: RLF144A201A Notes: SUB =RLF144A201A
  • [20] RLF144A202 LINK(FLAP) In Stock
  • [21] RLF129A207 PLATE,CONNECTING(R) Contact   Contact
  • [21-22] RLF436A204 LOUVER ASSY(R) In Stock Show Image
  • [22] RLF436A206 LOUVER In Stock
  • [23] RLF129A208 PLATE,CONNECTING(L) Contact   Contact
  • [23-24] RLF436A205 LOUVER ASSY(L) In Stock Show Image
  • [24] RLF436A206 LOUVER In Stock
  • [25] RLD129A021 SHAFT In Stock Notes: LOCKS HORIZONTAL UP/DOWN LOUVER ONTO INDOOR HEAD UNIT.- SOLD INDIVIDUALLY, 3x10 Show Image
  • [26] RLF129A209 BRACKET,MOTOR(R) In Stock Show Image
  • [26-31] RLF129A203 BRACKET ASSY(R) Contact   Contact
  • [27] RLB144A005 CRANK(C) In Stock
  • [28] SSA512T103 MOTOR,STEPPING In Stock Notes: FOR FLAP, FOR FLAP Show Image
  • [29] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049 Notes: 269915492, FOR LOUVER
  • [30] RLF504A200 HARNESS ASSY In Stock Notes: FOR FLAP MOTOR, FOR FLAP MOTOR
  • [31] RLF504A200A HARNESS ASSY In Stock Notes: FOR LOUVER MOTOR(RIGHT), FOR LOUVER MOTOR(RIGHT)
  • [32] RLF129A210 BRACKET,MOTOR(L) In Stock Show Image
  • [32-38] RLF129A204 BRACKET ASSY(L) Contact   Contact
  • [33] RLB144A005 CRANK(C) In Stock
  • [34] SSA512T103 MOTOR,STEPPING In Stock Notes: FOR FLAP, FOR FLAP Show Image
  • [35] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049 Notes: 269915492, FOR LOUVER
  • [36] RLF504A200B HARNESS ASSY In Stock Notes: FOR FLAP MOTOR, FOR FLAP MOTOR
  • [37] RLF504A200C HARNESS ASSY In Stock Notes: FOR LOUVER MOTOR(LEFT), FOR LOUVER MOTOR(LEFT)
  • [38] RLF504A200D HARNESS ASSY In Stock Notes: FOR FLAP MOTOR, FOR FLAP MOTOR
  • [39] RLF131A200 GUARD,FAN In Stock
  • [40] RLF129A205 MOUNT(GUARD,FAN) In Stock Show Image
  • [41] SSA423A114 HOSE,DRAIN In Stock
  • [42] SSA326A047 PLUG In Stock Notes: PLUG FOR CONDENSATE/DRAIN TRAY.
  • [43] RLF111A200 BASE ASSY Contact   Contact
  • [44] RLF129A118 CASE ASSY(U) In Stock
  • [45] RLF129A102 CASE ASSY(L) In Stock
  • [46] SSA431G054 IMPELLER In Stock
  • [47] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING
  • [48] SSA512T126A MOTOR DC In Stock Notes: INDOOR FAN MOTOR, FOR IMPELLER Show Image
  • [49] RLF032A200 PLATE,INSTALLATION Contact   Contact
  • [50] SSA913A007 SCREW In Stock Notes: 1PC ONLY, 4x12 Show Image
SKU: SRK50ZSXA-W PANEL AND FAN ASSY Category:
