SRK50ZSXA-W HEAT EXCH. AND CONTROL

SRK50ZSXA-W HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

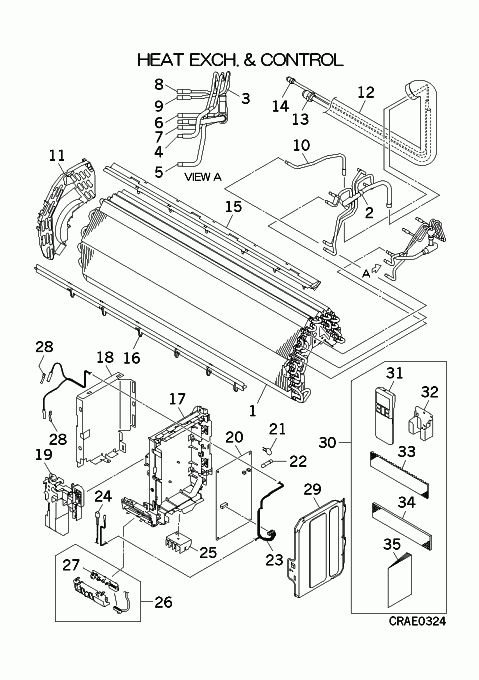

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-16] In Stock

RLF301A202A

HEAT EXCH ASSY

[2] Contact

RLF315D201

HEADER ASSY

Contact

[3] Contact

SSA315A252D

DISTRIBUTOR

Contact

[3-9] Contact

RLF315A201

DISTRIBUTOR ASSY

Contact

[4] Contact

RLF321A048

PIPE ASSY

Contact

Notes: f2.8xf4.0 L120, f2.8”f4.0 L120

[5] Contact

RLF321A049

PIPE ASSY

Contact

Notes: f2.8xf4.0 L120, f2.8”f4.0 L120

[6] Contact

RLF321A050

PIPE ASSY

Contact

Notes: f2.8xf4.0 L120, f2.8”f4.0 L120

[7] Contact

RLF321A051

PIPE ASSY

Contact

Notes: f2.8xf4.0 L120, f2.8”f4.0 L120

[8] Contact

RLF315B009

CAPILLARY

Contact

Notes: f2.8xf4.0 L120, f2.8”f4.0 L120

[9] Contact

RLF315B010

CAPILLARY

Contact

Notes: f2.8xf4.0 L120, f2.8”f4.0 L120

[10] Contact

RLF321A039

PIPE

Contact

[11] Contact

RLF129A200

BRACKET(L)

Contact

[12-14] Contact

RLF321A025A

PIPE ASSY

Contact

[13] In Stock

SSA323F088B

UNION(SLD)

Notes: FOR GAS, FOR GAS‚ / LENGTH 3.2CM Show Image

SSA323F088B

[14] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

SSA323F088A

[15] Contact

RLF129A201

PLATE,BAFFLE

Contact

[16] Contact

RLF129A202

SEAL

Contact

Show Image

RLF129A202

[17] In Stock

RLF142A202

BOX,CONTROL

[17-18] In Stock

RLF142A201

BOX ASSY,CONTROL

[18] Contact

RLF132A200

COVER,CONTROL

Contact

[19] Contact

RLF129A211

COVER,BEND

Contact

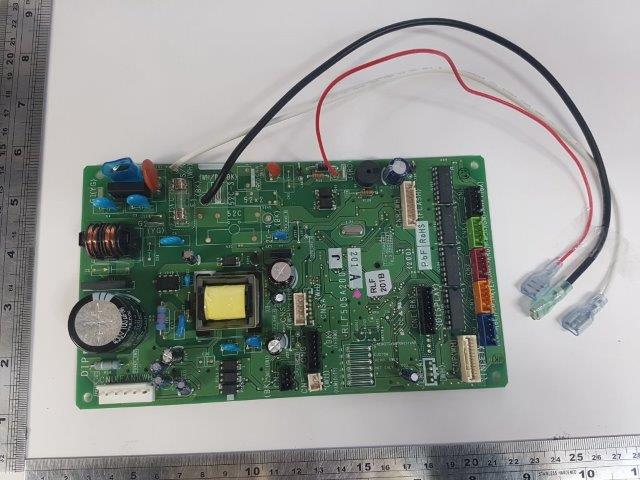

[20-22] In Stock

RLF505A200J

PWB ASSY

Notes: CONFIRM SERVICE CODE - SRK50ZSXA-W/A USES RLF505A200BD Show Image

RLF505A200J

[21] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

SSA555B050C

[22] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

SSA564A132

[23] In Stock

SSA551A223R

SENSOR ASSY

Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.) Show Image

SSA551A223R

[24] Contact

SSA551B017F

SENSOR(HUMIDITY)

Contact

[25] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

SSA561B702B

[26] In Stock

RLF503A200

DISPLAY ASSY

Show Image

RLF503A200

[27] In Stock

RLF505A202

PWB ASSY(DISPLAY)

Show Image

RLF505A202

[28] In Stock

RKJ941F001

SPRING LEAF

Show Image

RKJ941F001

[29] In Stock

RLF142A200

LID,CONTROL

[30] Contact

RLF008A201G

PARTS,STANDARD

Contact

[31] In Stock

RLA502A700K

CONTROL, REMOTE

Notes: remote holder = RLA032A700 Show Image

RLA502A700K

[32] In Stock

RLA032A700

HOLDER(REMO-CON)

Notes: REMOTE CONTROL HOLDER/CRADLE Show Image

RLA032A700

[33] In Stock

RKT437A801D

FILTER,CLEAN(BIO)

Notes: ALLERGEN FILTER / LENGTH 25.5CM Show Image

RKT437A801D

[34] In Stock

RKT437A005

FILTER,CLEAN

Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape

[35] Contact

RLF012A204

MANUAL,INSTRUCTION

Contact

[36] Contact

RLF011F200P

LABEL,MODEL NAME

Contact

SKU: SRK50ZSXA-W HEAT EXCH. AND CONTROL Category: Uncategorised
