Parts List
Key:
Instock.
Nilstock.
Contact MRE.

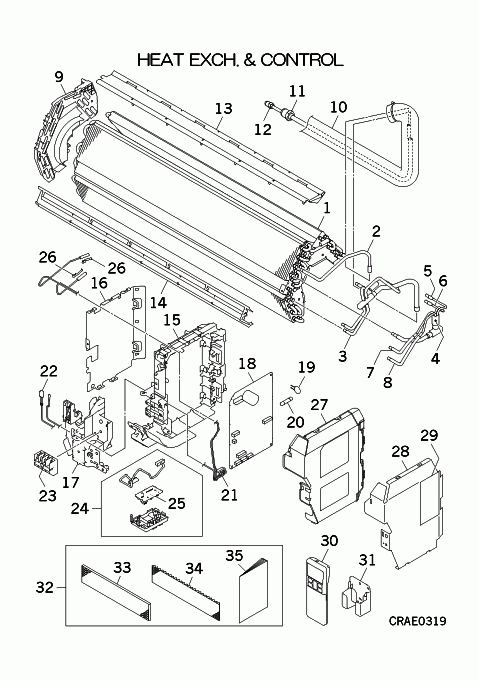

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1-14]
Contact
RLF301A102
HEAT EXCH ASSY(AIR
Contact
[2]
Contact
RLF321A015
PIPE
Contact
[3]
Contact
RLF315D100
HEADER ASSY
Contact
[4]
Contact
RKX315A003
DISTRIBUTOR
Contact
[4-8]
In Stock
RLF315A100
DISTRIBUTOR ASSY
[5]
Contact
RLF315B001
CAPILLARY
Contact
[6]
Contact
RLF315B002
CAPILLARY
Contact
[7]
Contact
RLF321A016
PIPE ASSY
Contact
[8]
Contact
RLF321A017
PIPE ASSY
Contact
[9]
Contact
RLF129A119
BRACKET ASSY(L)
Contact
[10-12]
Contact
RLF321A001A
PIPE ASSY
Contact
[11]
In Stock
SSA323F088B
UNION(SLD)
Notes: FOR GAS, FOR GAS‚ / LENGTH 3.2CM Show Image
[12]
In Stock
SSA323F088A
UNION(SLD)
Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image
[13]
In Stock
RLF129A105
PLATE,BAFFLE
[14]
In Stock
RLF129A106
SEAL
[15]
In Stock
RLF142A101
BOX,CONTROL
[15-16]
In Stock
RLF142A100
BOX ASSY CONTROL
[16]
In Stock
RLF132A100
COVER,CONTROL
[17]
Contact
RLF129A107
COVER,BEND
Contact
[18-20]
Contact
RLF505A102C
PWB ASSY
Contact
[19]
In Stock
SSA555B050C
VARISTOR
[20]
In Stock
SSA564A132
FUSE(CURRENT)
[21]
In Stock
SSA551A223AF
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.)
[22]
In Stock
SSA551B017C
SENSOR(HUMIDITY)
[23]
In Stock
SSA561B702B
BLOCK,TERMINAL
[24]
In Stock
RLF503A100
PWB, DISPLAY ASSY
Notes: DISPLAY / RECEIVER PWB COMES WITH HARNESS AND CASING Show Image
[25]
Contact
RLF505A101AZ
Contact
[26]
Contact
PSA941F001
Contact
[27]
In Stock
RLF132A104
LID,CONTROL
[27-29]
Contact
RLF142A103
LID ASSY,CONTROL
Contact
[28]
In Stock
RLF142A105
LID,CONTROL
[29]
Contact
RLF011G100A
LABEL,WIRING
Contact
[30]
In Stock
RLA502A730L
[31]
In Stock
RLA032A700
HOLDER(REMO-CON)
Notes: Holder/Cradle for Remote control Show Image
[32]
Contact
RLF008A100F
PARTS,STANDARD
Contact
[33]
In Stock
RKT437A005
FILTER,CLEAN
Notes: PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape Show Image
[34]
In Stock
RKT437A801D
FILTER,CLEAN(BIO)
[35]
Contact
RLF012A102B
MANUAL,INSTRUCTION
Contact
[36]
Contact
RMA011F090H
LABEL,MODEL NAME
Contact
