SRK50ZGA-S PANEL AND FAN ASSY

SRK50ZGA-S PANEL AND FAN ASSY

Available Parts

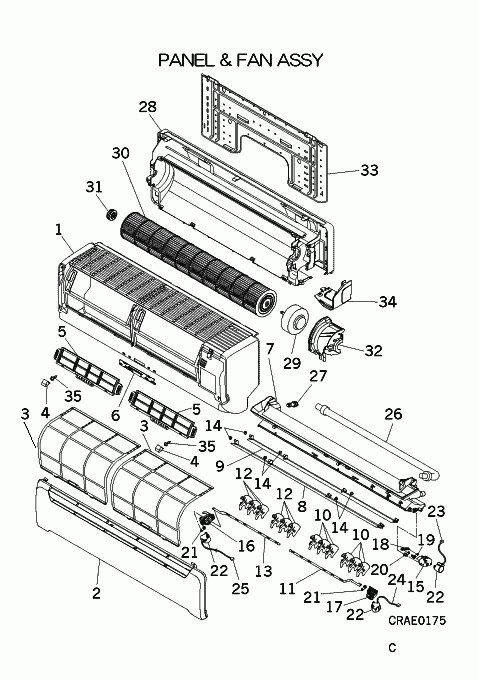

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RKX122A001F PANEL,FRONT In Stock Notes: !
  • [1-6] RKX102A001H PANEL ASSY,FRONT In Stock
  • [2] RKX435A004C PANEL ASSY In Stock

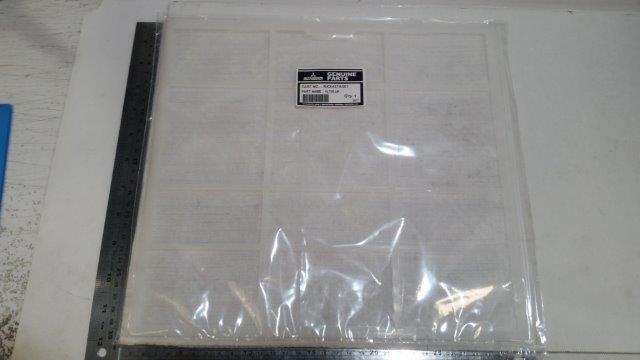

  • [3] RKX437A001 FILTER,AIR In Stock Notes: W315.5XH294.3(T2), RETURN AIR FILTERS - SOLD INDIVIDUALLY - UNIT HAS 2, 1pc ONLY Show Image
  • [4] RKX129A013 CAP In Stock Show Image
  • [5] RKX129A014 HOLDER,FILTER In Stock Notes: FILTER HOLDER - UNIT HAS 2 - SOLD INDIVIDUALLY, 1pc ONLY
  • [6] RKX133A001 PLATE,ORNAMENT Contact   Contact
  • [7] RKX435A003 GRILLE,AIR OUTLET In Stock Substitute: RKX435A003A Notes: USE THIS PART NUMBER FULL ASSY RKX435A002
  • [7-27] RKX435A002 GRILLE ASSY,AIR OU Out of Stock Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION
  • [8] RKX436A001 FLAP(A) In Stock Notes: UPPER, UPPER
  • [9] RKX436A002C FLAP(B) In Stock Notes: LOWER
  • [10] RKX436A005B LOUVER In Stock Notes: *** ONE LOUVER ONLY ***, SEE LOUVER ASSY Show Image
  • [10-11] RKX436A003A LOUVER ASSY (R ) In Stock Notes: 6 LOUVERS AND CONNECTING ROD - RIGHT SIDE ONLY
  • [11] RKX129A008A PLATE,CONNECTING(R) In Stock Show Image
  • [12] RKX436A005B LOUVER In Stock Notes: *** ONE LOUVER ONLY ***, SEE LOUVER ASSY Show Image
  • [12-13] RKX436A004B LOUVER ASSY (L) In Stock Notes: 6 LOUVERS AND CONNECTING ROD - LEFTSIDE ONLY - SPARE PART IS BLACK COLOUR Show Image
  • [13] RKX129A009 PLATE,CONNECTING(L Contact Notes: !   Contact
  • [14] RKW935C200 COLLAR In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [15] RKX129A010 BRACKET,MOTOR(A) In Stock
  • [16] RKX129A011 BRACKET,MOTOR(B) In Stock

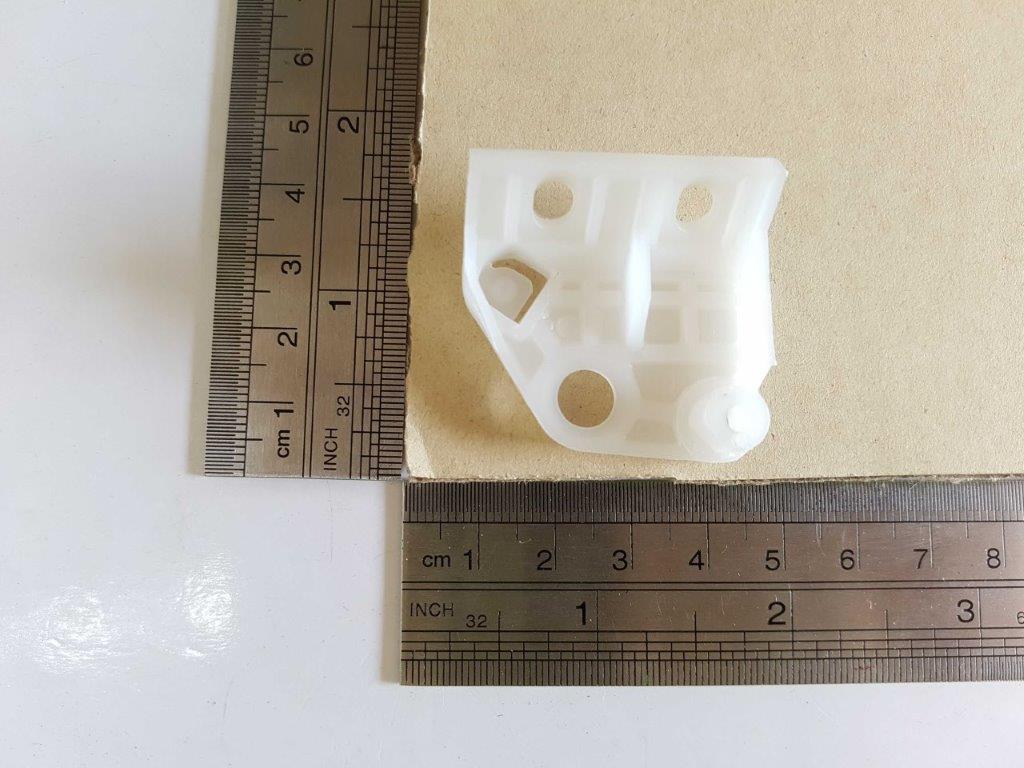

  • [17] RKX129A012 BRACKET,MOTOR(C) In Stock
  • [18] RKX144A001 LINK In Stock Show Image
  • [19] RKX144A002 CRANK(A) In Stock Show Image
  • [20] RKX144A003 CRANK(B) In Stock Show Image
  • [21] RKW144A204 CRANK(C) In Stock
  • [22] SSA512T017 MOTOR,STEPPING In Stock Substitute: SSA512T096 Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
  • [23] RKS504A100G HARNESS In Stock Notes: WIRING HARNESS FOR FLAP - UP AND DOWN, FOR FLAP MOTOR
  • [24] RKS504A100 HARNESS In Stock Notes: WIRING HARNESS FOR FOR RIGHT LOUVER SET, FOR RIGHT LOUVER MOTOR Show Image
  • [25] RKS504A100L HARNESS In Stock Notes: WIRING HARNESS FOR LEFT LOUVER MOTOR, FOR LEFT LOUVER MOTOR
  • [26] SSA423A114 HOSE,DRAIN In Stock
  • [27] SSA326A047 PLUG In Stock Notes: PLUG FOR CONDENSATE/DRAIN TRAY.
  • [28] RKX111A001 BASE ASSY In Stock Substitute: RKX111A001C Show Image
  • [29] SSA512T127 MOTOR, DC In Stock Notes: FOR IMPELLER Show Image
  • [30] SSA431G044A IMPELLER In Stock
  • [31] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING
  • [32] RKX129A005 COVER(MOTOR) In Stock Show Image
  • [33] RKX032A001 PLATE,INSTALLATION In Stock Notes: MOUNTING PLATE
  • [34] RKX132A001A LID In Stock Notes: RIGHT HAND SIDE LID. (COVERS PIPING) Show Image
  • [35] SSA913A007A SCREW,TAP In Stock Notes: 1PC ONLY, 4X14
SKU: SRK50ZGA-S PANEL AND FAN ASSY Category:
