SRK50ZDA-S PANEL AND FAN ASSY

SRK50ZDA-S PANEL AND FAN ASSY

Available Parts

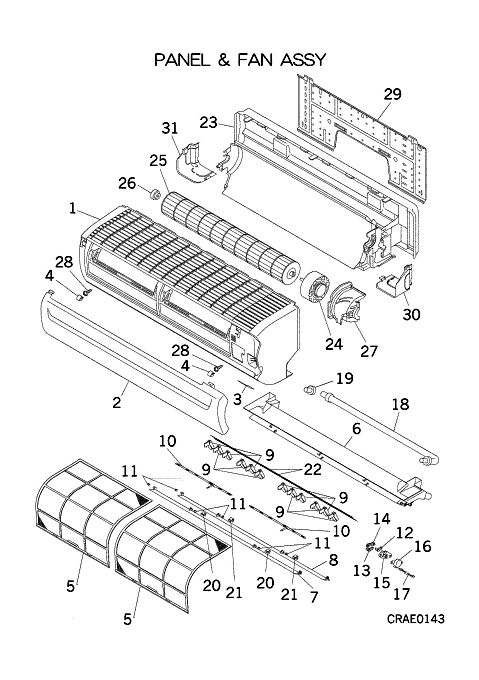

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RKV122A001G PANEL FRONT In Stock
  • [1-5] RKV102A600 FRONT PANEL Out of Stock
  • [2] RKV435A100B PANEL,AIR I In Stock

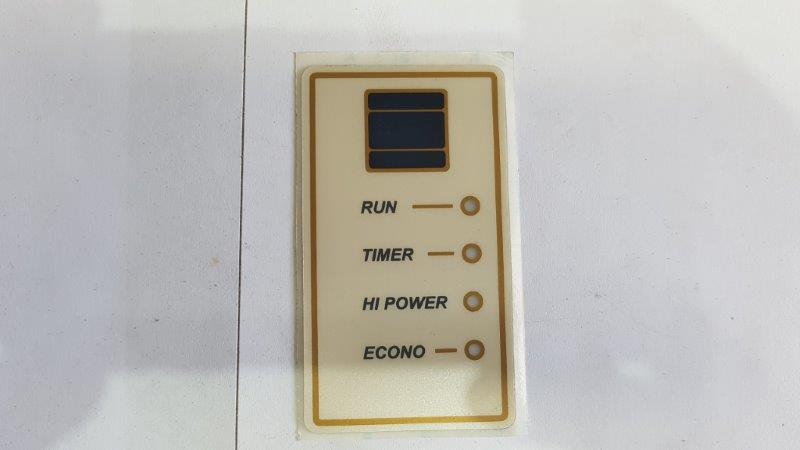

  • [3] RKV133A501 PLATE,DISPL In Stock Show Image

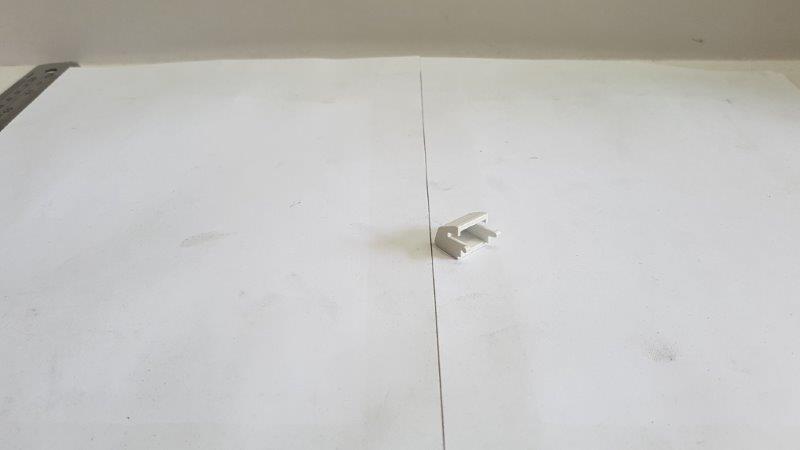

  • [4] RKV129A007 CAP In Stock Show Image
  • [5] RKV437A001 FILTER In Stock Notes: 1pc ONLY
  • [6] RKV435A003 GRILLE,AIR OUTLET Out of Stock Notes: !
  • [6-22] RKV435A101B GRILLE OUT In Stock
  • [7] RKV436A100 FLAP,A In Stock Notes: UPPER
  • [8] RKV436A101 FLAP,B In Stock Notes: LOWER
  • [9] RKV436A103 LOUVER Contact Notes: 1pc ONLY   Contact

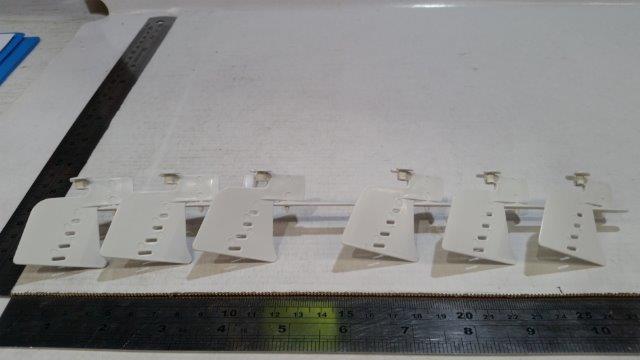

  • [9-10] RKV436A102 LOUVER ASSY In Stock Show Image
  • [10] RKV129A003 PLATE,CONNECTING Contact   Contact
  • [11] RKR935C001B COLLAR Out of Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY

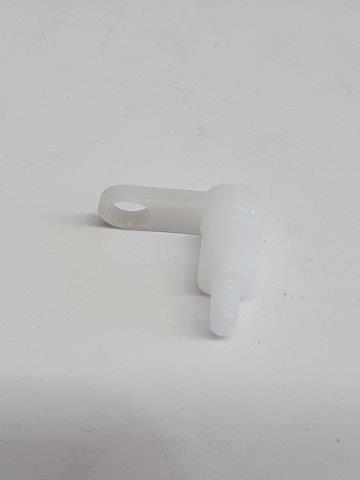

  • [12] RKV144A001 CRANK,A In Stock

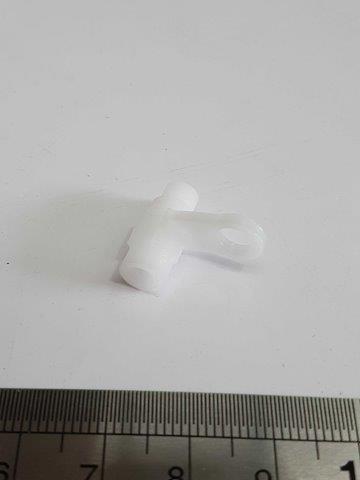

  • [13] RKV144A002 CRANK,B In Stock

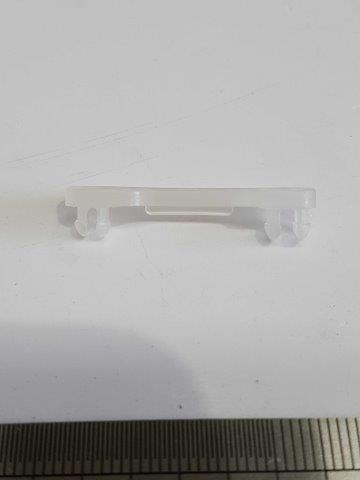

  • [14] RKV144A003 LINK In Stock
  • [15] RKV129A005 BRACKET,MOT Contact   Contact
  • [16] SSA512T017 MOTOR,STEPPING In Stock Substitute: SSA512T096 Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

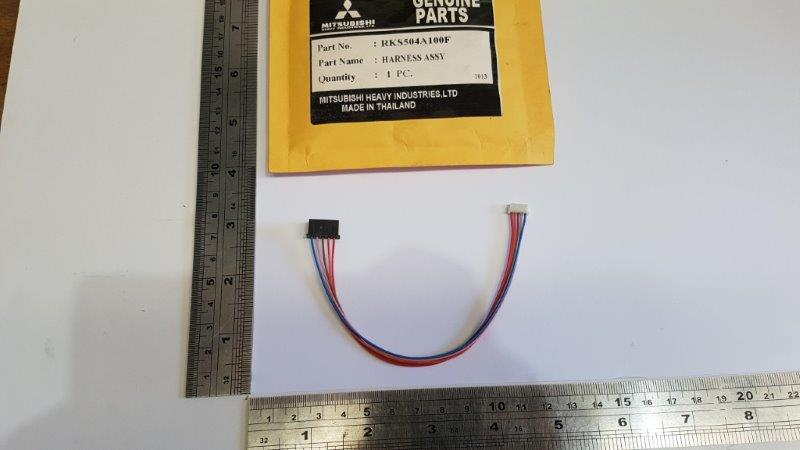

  • [17] RKS504A100F HARNESS In Stock Notes: FOR FLAP MOTOR Show Image
  • [18] SSA423A114 HOSE,DRAIN In Stock
  • [19] SSA326A041 PLUG In Stock Substitute: SSA326A043 Show Image

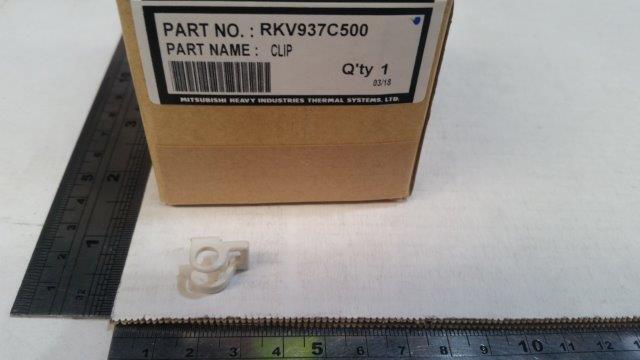

  • [20] RKV937C500 CLIP Out of Stock Show Image
  • [21] RKV937C500A CLIP In Stock
  • [22] RKV131A500 GUARD,FAN Contact   Contact
  • [23] RKV111A001 BASE ASSY Contact   Contact

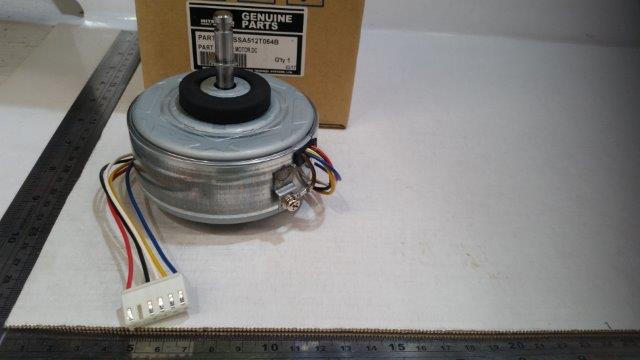

  • [24] SSA512T064B MOTOR,DC In Stock Notes: FOR IMPELLER Show Image
  • [25] SSA431G042C IMPELLER In Stock
  • [26] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING

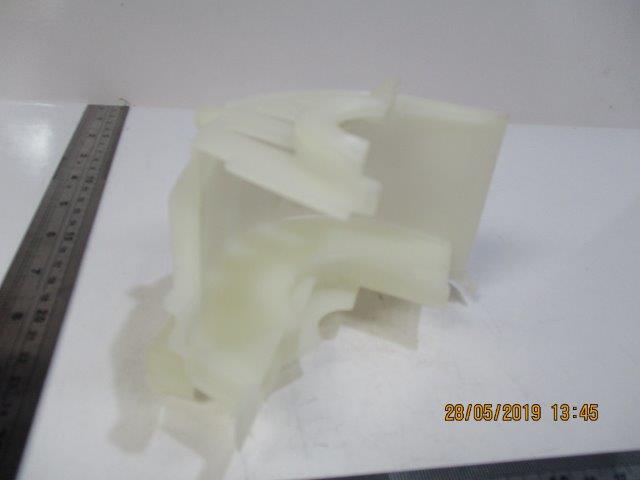

  • [27] RKV129A002 COVER,MOTOR In Stock Show Image
  • [28] SSA913A007A SCREW,TAP In Stock Notes: 1PC ONLY, 4X14
  • [29] RKV032A001 PLATE,INSTA Out of Stock

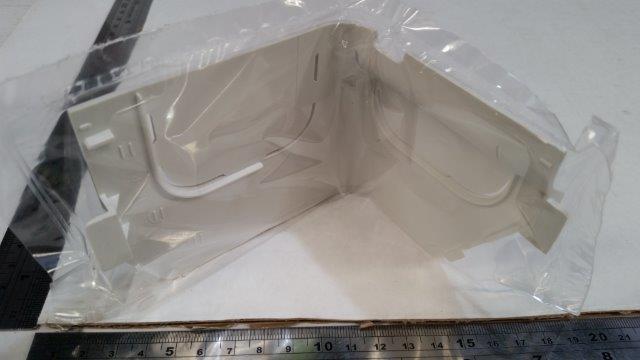

  • [30] RKV132A001A LID(R) In Stock Notes: RIGHT LID Show Image

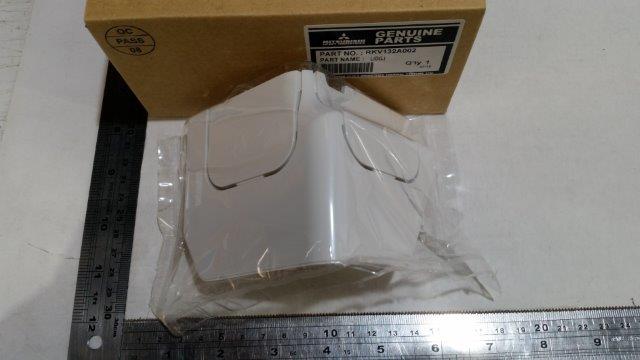

  • [31] RKV132A002 LID,L In Stock Notes: LEFT LID Show Image
SKU: SRK50ZDA-S PANEL AND FAN ASSY Category:
