SRK508HENF-A PANEL AND FAN ASSY

Name: SRK508HENF-A PANEL AND FAN ASSY
SKU: SRK508HENF-A PANEL AND FAN ASSY
Availability: InStock

SRK508HENF-A PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

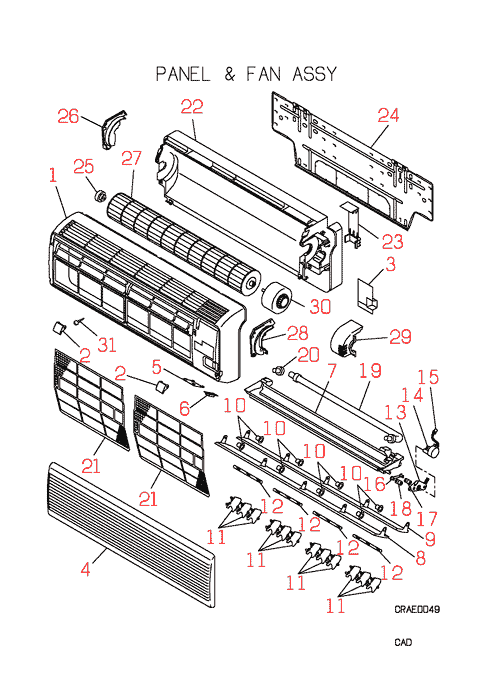

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

RKS122A001B

PANEL FRONT

[1-6] Out of Stock

RKS102A002B

PANEL,FRONT

[2] Contact

RKS129A006

CAP

Contact

[3] Out of Stock

RKS132A001

LID

[4] Out of Stock

RKS435A001B

GRILLE,AIR

[5-6] Contact

RKS133A005

PLATE INSU

Contact

[6] Contact

RKS133A003

PLATE

Contact

[7] Out of Stock

RKS435A003

GRILLE,AIR

[7-20] Contact

RKS435A002C

GRILLE,INLT

Contact

[8] In Stock

RKS436A001

FLAP(A)

Notes: LOWER

[9] In Stock

RKS436A002

FLAP(B)

Notes: UPPER

[10] In Stock

RKR935C001

COLLAR

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY*** Show Image

[11] Out of Stock

RKS436A006

LOUVER

Notes: 1pc ONLY, out of production

[11-12] In Stock

RKS436A005

LOUVER ASSY

Show Image

[12] Contact

RKS129A013

PLATE,CONEC

Contact

[13] In Stock

RKR129A009

BRACKET MOT

Show Image

[13-18] Out of Stock

RKR144A006

LINK,ASSY

[14] In Stock

SSA512T017

MOTOR,STEPPING

Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

[15] In Stock

RKR504A003

HARNESS

[16] Out of Stock

RKR144A007

LINK

[17] Out of Stock

RKR144A003

CLANK

[18] Out of Stock

RKR144A004

CLANK

[19] In Stock

RSA423A001

DRAIN HOSE

[20] In Stock

SSA326A038

PLUG

Show Image

[21] Out of Stock

RKS437A001

FILTER,AIR

Notes: 1pc ONLY, RETURN AIR FILTER - SOLD INDIVIDUALLY

[22] Contact

RKS111A001

BASE ASSY

Contact

[23] Contact

RKS129A007

COVER PIPE

Contact

[24] Contact

RKS032A001

PLATE INSU

Contact

[25] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[26] In Stock

RKS129A002

BRACKET,L

Notes: LEFT Show Image

[27] In Stock

SSA431G026

IMPELLER

[28] Contact

RKS129A001

BRACKET,R

Contact

Notes: RIGHT

[30] In Stock

SSA512K021

MOTOR,DC

Show Image

[31] Contact

SSA913A007B

SCREW TAP

Contact

Notes: 1pc ONLY

SKU: SRK508HENF-A PANEL AND FAN ASSY Category: Uncategorised
