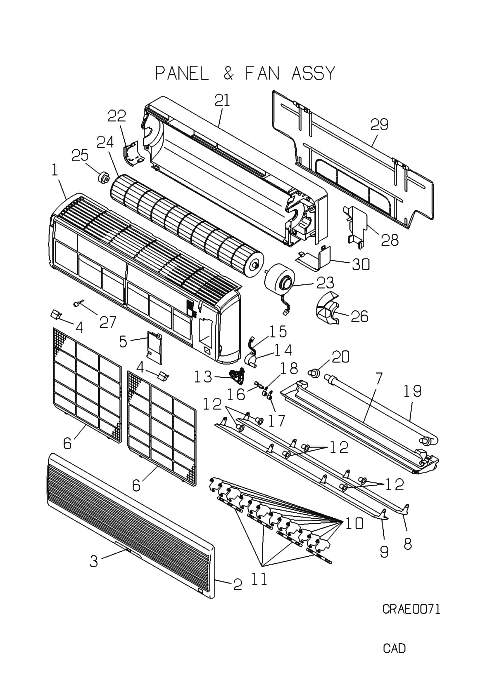

SRK502Z-L PANEL AND FAN ASSY

SRK502Z-L PANEL AND FAN ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RKS122A200H FRONT PANEL Out of Stock
  • [1-5] RKS102A410C FRONT PANEL Contact   Contact
  • [2-3] RKS435A410C GRILLE IN In Stock
  • [3] RKS133A200 ORNAMENT P Contact   Contact
  • [4] RKS129A207 C A P Contact   Contact
  • [5] RKS132A202C L I D Contact   Contact
  • [6] RKS437A200A FILTER In Stock Notes: RETURN AIR/DUST FILTER - SOLD INDIVIDUALLY - UNIT HAS 2, 1pc ONLY Show Image
  • [7] RKS435A203 GRILLE OUT Contact Substitute: RKS435A202   Contact
  • [7-20] RKS435A401F GRILLE IN Out of Stock
  • [8] RKS436A200 FLAP In Stock Notes: LOWER
  • [9] RKS436A201 FLAP In Stock Notes: UPPER
  • [10] RKS436A304 LOUVER In Stock Notes: 1pc ONLY Show Image
  • [10-11] RKS436A302 LOUVER In Stock
  • [11] RKS129A302 PLATE CONEC In Stock Show Image
  • [12] RKR935C001 COLLAR In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY Show Image
  • [13] RKS129A205 BRACKET MOR In Stock Show Image
  • [13-18] RKS144A400 LINK In Stock Show Image
  • [14] SSA512T017 MOTOR,STEPPING In Stock Substitute: SSA512T096 Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
  • [15] RKS504A100B HARNESS In Stock Show Image
  • [16] RKS144A201 LINK Contact   Contact
  • [17] RKS144A202 CLANK Contact   Contact
  • [18] RKS144A203 CLANK Contact   Contact
  • [19] SSA423A089 DRAIN HOSE Contact Substitute: RSA423A001A   Contact
  • [20] SSA326A038 PLUG In Stock Show Image
  • [21-22] RKS111A200 BASE Contact   Contact
  • [22] RKS132A201 L I D Contact   Contact
  • [23] SSA512T031C MOTOR DC Out of Stock Notes: FOR IMPELLER Show Image
  • [24] SSA431G039 IMPELLER In Stock
  • [25] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING
  • [26] RKS129A202 COVER Contact   Contact
  • [27] SSA913A007 SCREW In Stock Notes: 1PC ONLY, 4X12 Show Image
  • [28] RKS129A204 COVER Contact   Contact
  • [29] RKR032A001B INSTLATION Out of Stock
  • [30] RKS132A200 L I D In Stock Show Image
