SRK502Z-L HEAT EXCH. AND CONTROL

SRK502Z-L HEAT EXCH. AND CONTROL

Available Parts

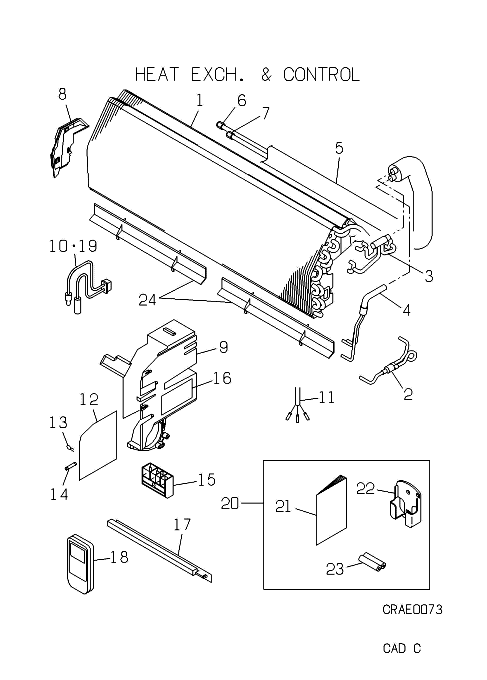

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-4] RKS301A209 HEAT EXCH Contact Substitute: RKS301A208A   Contact
  • [1-8] RKS301A208A HEAT EXCH Contact   Contact
  • [2] RKS321A240 PIPE ASSY Contact   Contact
  • [3] RKS315D203 HEADER ASSY Contact   Contact
  • [4] RKS315A200 DISTRI ASSY Contact   Contact
  • [5-7] RKS321A228A PIPE Contact Substitute: RKS301A208A   Contact
  • [6] SSA323F084 UNION Contact Notes: LIQ.   Contact
  • [7] SSA323F006B UNION Contact   Contact
  • [8] RKS129A203 BRACKET Contact   Contact
  • [9] RKS142A200 CONT BOX Contact   Contact
  • [10] SSA551A163J SENSOR Out of Stock Substitute: OUT OF PRODUCTION Notes: INCL.SENSOR(ROOM TEMP.AND HEAT EXCH.), INCL.SENSOR(ROOM TEMP.& HEAT EXCH.)
  • [11] RKS504A014B HARNESS Contact Substitute: RKS504A014D   Contact

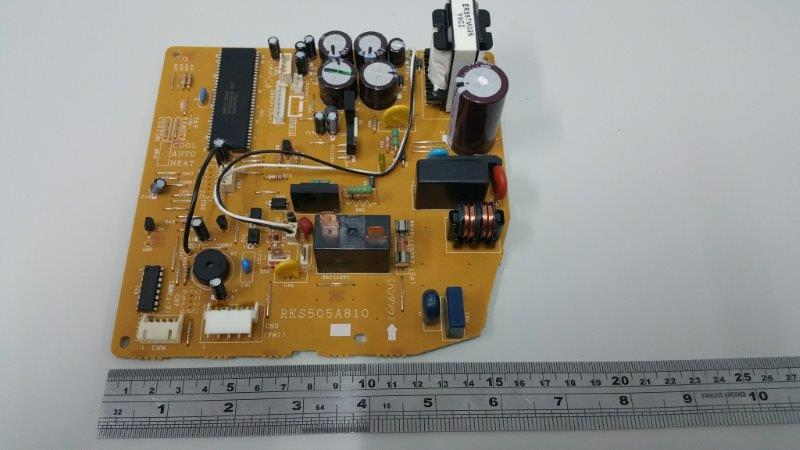

  • [12-14] RKS505A810 PWB ASSY In Stock Show Image
  • [13] SSA555B003B VARISTOR Contact Notes: Z   Contact
  • [14] SSA564A132 FUSE(CURRENT) In Stock Notes: 3.15A, 3.15A Show Image
  • [15] SSA561B675B BLOCK,TERMI Contact   Contact
  • [16] RKS011G810 LABEL,WIRING Contact   Contact
  • [17] RKS503A400B DISPLAY In Stock Show Image
  • [18] RKS502A503 REMOCON In Stock Show Image
  • [19] RKJ941F001 SPRING LEAF In Stock Substitute: PSA941F001 Notes: FOR THI-R Show Image
  • [20] RWA008A047G PARTS,STANDARD Contact   Contact
  • [21] RWA012A174 MANUAL,INSTRUCTION Contact   Contact
  • [22] RKN032A002A PLATE REMOC In Stock Substitute: RKN032A002B Show Image
  • [23] RSA549A005 BUTTERY Contact Substitute: RKH549A500B Notes: RSA549A001 ALSO SUB   Contact
  • [24] RKS129A213 PLATE Contact   Contact
  • [25] RSA011F363K LABEL,MODEL NAME Contact   Contact
SKU: SRK502Z-L HEAT EXCH. AND CONTROL Category:
