SRK40HCA-S HEAT EXCH. AND CONTROL

SRK40HCA-S HEAT EXCH. AND CONTROL

Available Parts

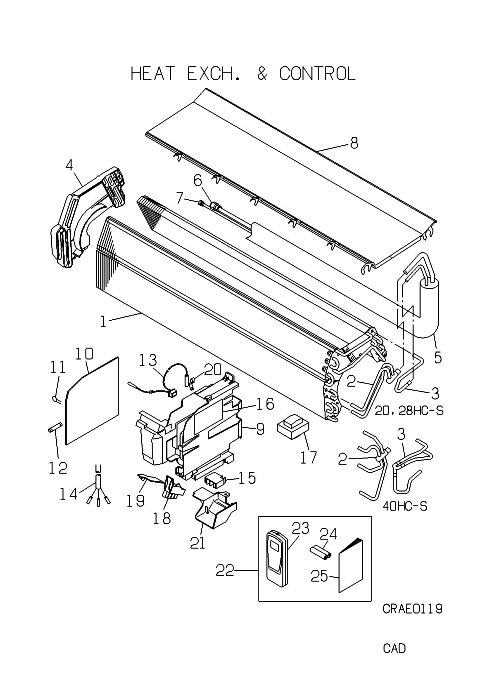

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-8] RKV301A500H HEAT EXCH A In Stock
  • [2] RKV315D501 HEADER ASSY Contact   Contact
  • [3] RKV321A507 PIPE ASSY Contact   Contact
  • [4] RKV129A001 BRACKET(L) Contact   Contact
  • [5-7] RKV321A512 PIPE ASSY Contact   Contact
  • [6] SSA323F082B UNION(SLD) Contact Notes: FOR GAS, GAS   Contact
  • [7] SSA323F082A UNION(SLD) Contact Notes: LIQ., LIQ.   Contact
  • [8] RKV129A004 PLATE Contact   Contact

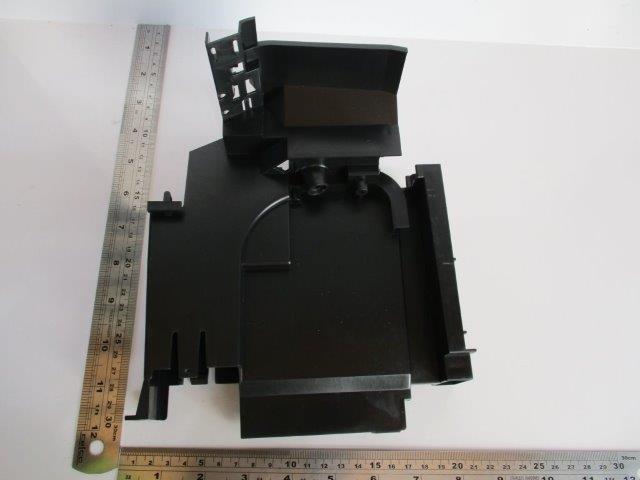

  • [9] RKV142A500 BOX,CONTROL In Stock Show Image
  • [10-12] RKV505A500B PWB ASSY In Stock Substitute: OUT OF PRODUCTION
  • [11] SSA555B041B VARISTOR Contact Notes: Z   Contact
  • [12] SSA564A132 FUSE(CURRENT) In Stock Notes: 3.15A, 3.15A Show Image
  • [13] SSA551A163F SENSOR In Stock Notes: INCL.SENSOR (ROOM TEMP.AND HEAT EXCH.), INCL SENSOR ROOM TEMP and HEAT EXCH Show Image
  • [14] RKV504A500G HARNESS ASSY In Stock
  • [15] SSA561B702 BLOCK,TERMI In Stock Notes: TB1 Show Image
  • [16] RKV011G500 LABEL,WIRING Contact   Contact

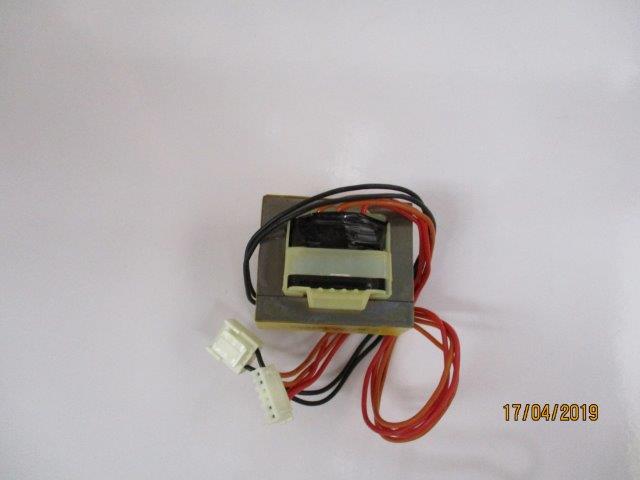

  • [17] SSA554A441 TRANSFORMER In Stock Show Image
  • [18] RKV129A006 HOLDER,DISP Out of Stock
  • [18-19] RKV503A500ZA DISPLAYASSY In Stock Show Image

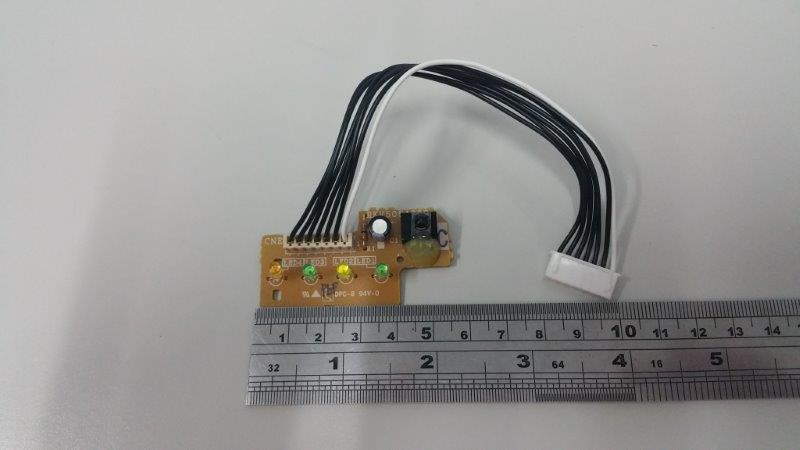

  • [19] RKV505A002C PWB DISPLAY In Stock Show Image
  • [20] RKJ941F001 SPRING LEAF In Stock Substitute: PSA941F001 Notes: FOR THI-R Show Image

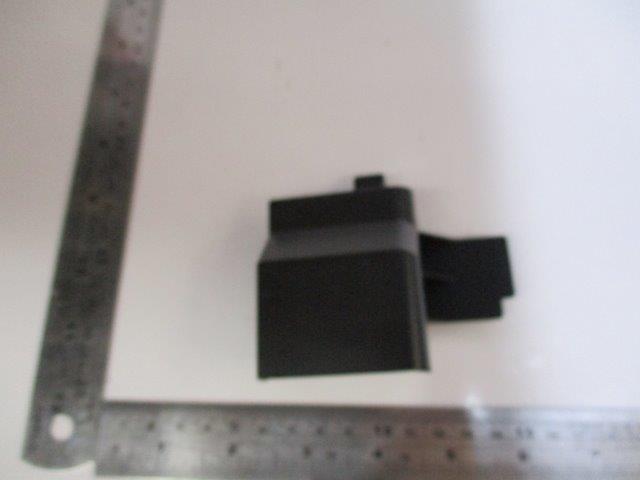

  • [21] RKV142A501 COVER In Stock Show Image
  • [22] RKV008A500 PARTS,STAND Contact   Contact
  • [23] RMA502A001F REMOCON ASSY In Stock Notes: RKR032A002 REMOTE CONTROL HOLDER - Show Image
  • [24] RKH549A500B BATTERY Contact   Contact
  • [25] RKV012A501 MANUAL,INST Contact   Contact
  • [26] RSA011F375P LABEL,MODEL NAME Contact   Contact
SKU: SRK40HCA-S HEAT EXCH. AND CONTROL Category:
