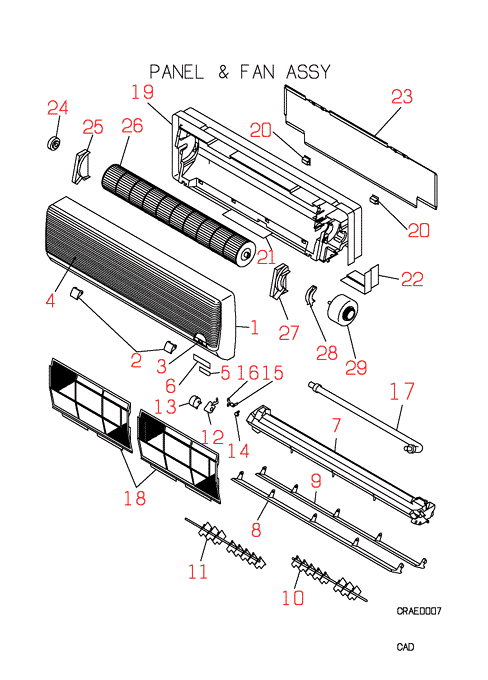

SRK388HENF-A PANEL AND FAN ASSY

SRK388HENF-A PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock
RKM122A100D
PANEL FRONT
[1-6] Out of Stock
RWA102A004B
PANEL,FRONT
[2] Out of Stock
RKM129A105D
CAP
[3] Out of Stock
SSA944D057
LUCH
[4] In Stock
RWA435A002
GRILL ASY A
[5] Contact
RKM133A101A
PLATE ORNAM
Contact
[6] Contact
RKM133A204AJ
PLATE,DISPL
Contact
[7] Out of Stock
RKM435A103A
GRILLE ASY
Notes: OUT OF PRODUCTION
[7-17] Contact
RKM435A200V
GRILLE ASSY,AIR OU
Contact
[8] In Stock
RKM436A101D
FLAP,B
Notes: UPPER
[9] In Stock
RKM436A100D
FLAP,A
Notes: LOWER
[10] Contact
RKM436A200
LOUVER ASSY
Contact
[11] Contact
RKM436A201
LOUVER ASSY
Contact
[12] Out of Stock
RKM129A108
BRACKET MOT
[12-16] In Stock
RKM144A100B
LINK ASSY
Show Image
RKM144A100B
[13] Out of Stock
SSA512T008D
MOTOR STEP
Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION
[14] Out of Stock
RKM144A102
LINK
[15] Out of Stock
RKM144A103
LINK
[16] Out of Stock
RKM144A104
RINK
Substitute: OUT OF PRODUCTION
[17] In Stock
SSA423A090
DRAIN HOSE
[18] Out of Stock
RKM437A101
FILTER AIR
Notes: 1pc ONLY Show Image
RKM437A101
[19-21] Out of Stock
RKM111A100H
BASE ASSY
Substitute: RKM111A100G
[20] Contact
SSA944D043
CATCH,MAGNE
Contact
[21] Contact
RKM129A110F
PLATE
Contact
[22] Out of Stock
RKM132A100F
LID
[23] Out of Stock
RKM032A100A
PLATE INST
Substitute: OUT OF PRODUCTION
[24] In Stock
SSA923C136
BEARING, PLANE
Notes: END BEARING Show Image
SSA923C136
[25] Contact
RKM129A112
BRACKET
Contact
[26] Out of Stock
SSA431G024
IMPELLER
Substitute: OUT OF PRODUCTION
[27] In Stock
RKM129A111
BRACKET
Show Image
RKM129A111
[28] In Stock
RKM129A113
BRACKET

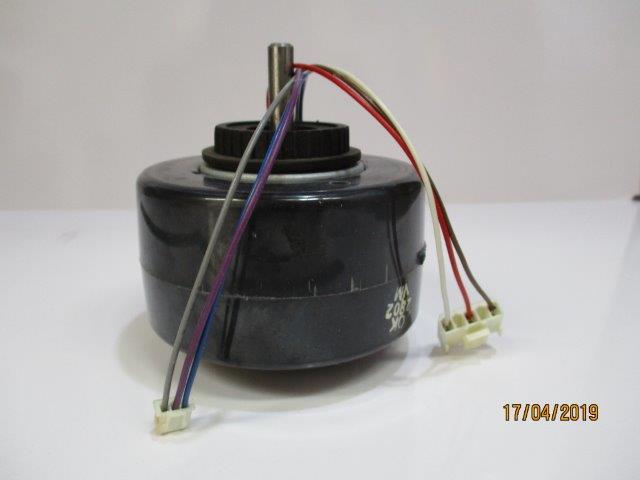

[29] In Stock
SSA511D060
MOTOR
Show Image
SSA511D060
SKU: SRK388HENF-A PANEL AND FAN ASSY Category:
