SRK35ZSXA-W HEAT EXCH. AND CONTROL

SRK35ZSXA-W HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-14] Out of Stock
RLF301A200A
HEAT EXCH ASSY
[2] Contact
RLF315D200
HEADER ASSY
Contact
[3] Contact
RKX315A003
DISTRIBUTOR
Contact
Notes: !
[3-7] Contact
RLF315A200
DISTRIBUTOR ASSY
Contact
[4] Contact
RLF321A037
PIPE ASSY
Contact
Notes: f2.8xf4.0 L100, f2.8”f4.0 L100
[5] Contact
RLF315B005
CAPILLARY
Contact
Notes: f2.8xf4.0 L100, f2.8”f4.0 L100
[6] Contact
RLF315B006
CAPILLARY
Contact
Notes: f2.8xf4.0 L100, f2.8”f4.0 L100
[7] Contact
RLF315B007
CAPILLARY
Contact
Notes: f2.8xf4.0 L100, f2.8”f4.0 L100
[8] Contact
RLF321A030
PIPE
Contact
[9] Contact
RLF129A200
BRACKET(L)
Contact
[10-12] Contact
RLF321A025
PIPE ASSY
Contact
[11] In Stock
SSA323F088
UNION(SLD)
Notes: LENGTH 2.6CM Show Image
SSA323F088
[12] In Stock
SSA323F088A
UNION(SLD)
Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image
SSA323F088A
[13] Contact
RLF129A201
PLATE,BAFFLE
Contact
[14] Contact
RLF129A202
SEAL
Contact
Show Image
RLF129A202
[15] In Stock
RLF142A202
BOX,CONTROL
[15-16] In Stock
RLF142A201
BOX ASSY,CONTROL
[16] Contact
RLF132A200
COVER,CONTROL
Contact
[17] Contact
RLF129A211
COVER,BEND
Contact

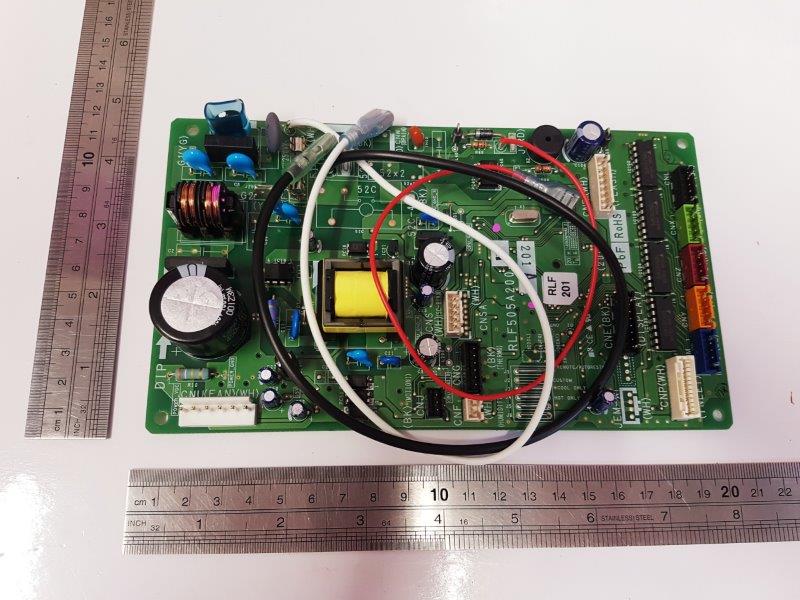

[18-20] In Stock
RLF505A200H
PWB ASSY
Notes: CONFIRM SERVICE CODE - SRK35ZSXA-W/A USES RLF505A200BC
[19] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[20] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[21] In Stock
SSA551A223R
SENSOR ASSY
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.) Show Image
SSA551A223R
[22] Contact
SSA551B017F
SENSOR(HUMIDITY)
Contact
[23] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[24] In Stock
RLF503A200
DISPLAY ASSY
Show Image
RLF503A200
[25] In Stock
RLF505A202
PWB ASSY(DISPLAY)
Show Image
RLF505A202
[26] In Stock
RKJ941F001
SPRING LEAF
Show Image
RKJ941F001
[27] In Stock
RLF142A200
LID,CONTROL
[28] Contact
RLF008A201C
PARTS,STANDARD
Contact
[29] In Stock
RLA502A700K
CONTROL, REMOTE
Notes: remote holder = RLA032A700 Show Image
RLA502A700K
[30] In Stock
RLA032A700
HOLDER(REMO-CON)
Notes: REMOTE CONTROL HOLDER/CRADLE Show Image
RLA032A700
[31] In Stock
RKT437A801D
FILTER,CLEAN(BIO)
Notes: ALLERGEN FILTER / LENGTH 25.5CM Show Image
RKT437A801D
[32] In Stock
RKT437A005
FILTER,CLEAN
Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape
[33] Contact
RLF012A204
MANUAL,INSTRUCTION
Contact
[34] Contact
RLF011F200N
LABEL,MODEL NAME
Contact
