SRK35ZSXA-W/A PANEL AND FAN ASSY

SRK35ZSXA-W/A PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

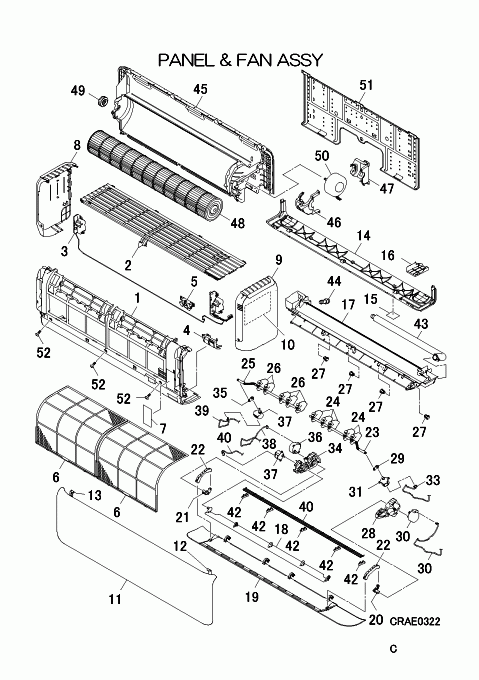

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RLF122A200C
PANEL,FRONT
[1-7] In Stock
RLF102A201Z
PANEL ASSY, FRONT
[2] In Stock
RLF435A203B
GRILLE,AIR IN(TOP)
[3] In Stock
RLF142A203
BOX ASSY,GEAR
RLF142A203
[4] Contact
RLF133A200C
ORNAMENT ASSY
Contact
[5] Contact
RLF129A213C
SENSOR ASSY
Contact
Notes: Motion Sensor - Infrared Motion detector
[6] In Stock
RLF437A200
FILTER,AIR
Notes: W355XH353( 2), W355‚¾H353(t2) Show Image
RLF437A200
[7] Contact
RSA011H056
LABEL,NOTICE
Contact
[8] In Stock
RLF123A202H
PANEL ASSY,SIDE(L)
[9-10] In Stock
RLF123A200M
PANEL ASSY,SIDE(R)
[10] Contact
RLF011G200
LABEL,WIRING
Contact
Notes: !
[11-13] In Stock
RLF435A202V
PANEL ASSY, AIR IN
Notes: FILTER ACCESS PANEL & COMES WITH INSIDE FLAP
[12] Contact
RLF129A216
ARM,INLET(R)
Contact
[13] Contact
RLF129A217
ARM,INLET(L)
Contact
[14-15] In Stock
RLF125A200J
PANEL ASSY, BOTTOM
Notes: LENGTH 92CM
[15] Contact
RSA011H054
LABEL,NOTICE
Contact
[16] In Stock
RLA129A023
COVER ASSY(TB)¿
RLA129A023
[17] In Stock
RLF435A201
GRILLE,AIR OUTLET
Notes: !, DRAIN PAN ONLY
[17-44] In Stock
RLF435A200H
GRILLE ASSY,AIR OUT
Notes: includes all louvers, all stepping/louver motors & all stepping motor wiring harnesses
[18] In Stock
RLF436A200A
FLAP(U)
Notes: UPPER
[19] In Stock
RLF436A201G
FLAP ASSY(L)
Notes: LOWER
[20] In Stock
RLF144A200A
CRANK,FLAP(R)
RLF144A200A
[21] In Stock
RLF144A201A
CRANK,FLAP(L)
RLF144A201A
[22] In Stock
RLF144A202
LINK(FLAP)
RLF144A202
[23] In Stock
RLF129A207
PLATE,CONNECTING(R)
Notes: !
[23-24] In Stock
RLF436A204
LOUVER ASSY(R)
Notes: Right side Louver assembly - 5 Vertical blades & 1 connecting plate Show Image
RLF436A204
[24] In Stock
RLF436A206
LOUVER
Notes: !, Individual Louver Fin - Sold individually Show Image
RLF436A206
[25] Contact
RLF129A208
PLATE,CONNECTING(L)
Contact
Notes: !
[25-26] In Stock
RLF436A205
LOUVER ASSY(L)
Notes: Left side Louver assembly - 5 Vertical blades & 1 connecting plate Show Image
RLF436A205
[26] In Stock
RLF436A206
LOUVER
Notes: !, Individual Louver Fin - Sold individually Show Image
RLF436A206
[27] In Stock
RLD129A021
SHAFT
Notes: secures horizontal up/down flaps onto indoor head unit - SOLD INDIVIDUALLY Show Image
RLD129A021
[28] In Stock
RLF129A209
BRACKET,MOTOR(R)
Notes: ! Show Image
RLF129A209
[28-33] In Stock
RLF129A203
BRACKET ASSY(R)
[29] In Stock
RLB144A005
CRANK(C)
Notes: !, LENGTH 2CM Show Image
RLB144A005
[30] In Stock
SSA512T103
MOTOR,STEPPING
Notes: FOR FLAP Show Image
SSA512T103
[31] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR LOUVER(RIGHT) Show Image
SSA512T158
[32] In Stock
RLF504A200
HARNESS ASSY
Notes: FOR FLAP MOTOR, FOR FLAP MOTOR/ LENGTH 35CM - yellow/orange plug Show Image
RLF504A200
[33] In Stock
RLF504A200A
HARNESS ASSY
Notes: FOR LOUVER MOTOR(RIGHT), FOR LOUVER MOTOR(RIGHT)/ LENGTH 32.5CM - red plug Show Image
RLF504A200A
[34] In Stock
RLF129A210
BRACKET,MOTOR(L)
Notes: ! Show Image
RLF129A210
[34-40] In Stock
RLF129A204
BRACKET ASSY(L)
[35] In Stock
RLB144A005
CRANK(C)
Notes: !, LENGTH 2CM Show Image
RLB144A005
[36] In Stock
SSA512T103
MOTOR,STEPPING
Notes: FOR FLAP Show Image
SSA512T103
[37] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR LOUVER(RIGHT) Show Image
SSA512T158
[38] In Stock
RLF504A200B
HARNESS ASSY
Notes: FOR FLAP MOTOR, FOR FLAP MOTOR/ LENGTH 118.5CM - green plug Show Image
RLF504A200B
[39] In Stock
RLF504A200C
HARNESS ASSY
Notes: FOR LOUVER MOTOR(LEFT), FOR LOUVER MOTOR(LEFT)/ LENGTH 113.5CM - black plug Show Image
RLF504A200C
[40] In Stock
RLF504A200D
HARNESS ASSY
Notes: FOR FLAP MOTOR, FOR FLAP MOTOR/ LENGTH 100.5CM - blue plug Show Image
RLF504A200D
[41] In Stock
RLF131A200
GUARD,FAN
[42] In Stock
RLF129A205
MOUNT(GUARD,FAN)
RLF129A205
[43] In Stock
SSA423A114
HOSE,DRAIN
[44] In Stock
SSA326A047
PLUG
Notes: !, Plug for condensate/drain tray.
[45] In Stock
RLF111A200F
BASE ASSY
[46] In Stock
RLF129A118
CASE ASSY(U)
Notes: Upper Fan motor housing Show Image
RLF129A118
[47] In Stock
RLF129A102
CASE ASSY(L)
Notes: LENGTH 13.5CM - Lower / Rear Fan motor housing
[48] In Stock
SSA431G054
IMPELLER
Notes: FAN BARREL
[49] In Stock
SSA923C136
BEARING, PLANE
Notes: END BEARING Show Image
SSA923C136
[50] In Stock
SSA512T126A
MOTOR DC
Notes: FOR IMPELLER, INDOOR FAN MOTOR Show Image
SSA512T126A
[51] In Stock
RLF032A200
PLATE,INSTALLATION
Notes: MOUNTING BRACKET / INSTALLATION PLATE
[52] In Stock
SSA913A007
SCREW
Notes: 4X12, 1pc ONLY Show Image
SSA913A007
