SRK35ZIX-S PANEL AND FAN ASSY

SRK35ZIX-S PANEL AND FAN ASSY

Available Parts

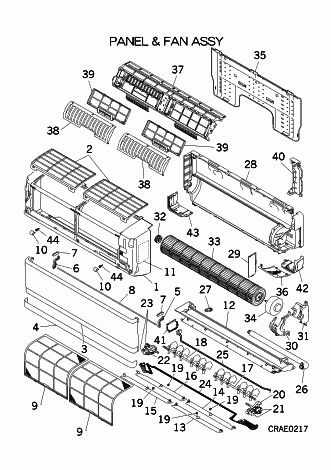

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RKY122A002F PANEL ASSY FRONT In Stock
  • [1-11] RKY102A001B PANEL ASSY,FRONT In Stock Notes: GRILLE INCLUDED
  • [2] RKY435A003 GRILLE INLET In Stock Substitute: RKY435A003B Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [3-8] RKY435A004F PANEL ASSY, AIR IN In Stock Notes: AIR INTLET PANEL ASSY / FILTER COVER
  • [4] RKY435A007B PANEL,ORNAMENT In Stock
  • [5] RKY144A005 LINK A(R) In Stock Notes: RIGHT, RIGHT Show Image
  • [6] RKY144A006 LINK A(L) In Stock Notes: LEFT, LEFT
  • [7] RKY144A007 LINK A In Stock Show Image
  • [8] RKY144A008 SHAFT In Stock
  • [9] RKY437A001 FILTER In Stock Notes: RETURN AIR / DUST FILTER - UNIT HAS 2 - SOLD INDIVIDUALLY, 1pc ONLY
  • [10] RKY129A012 COVER In Stock Show Image
  • [11] RKY011G001B LABEL,WIRING Contact Notes: !   Contact
  • [12] RKY435A002 GRILLE,AIR OUT Out of Stock Notes: NOT FOR SALE-GO TO GRILLE,AIR OUT ASSY
  • [12-27] RKY435A001B GRILLE ASSY,AIR OU In Stock Notes: INCLUDES DRIP/CONDENSATE TRAY - LOUVERS, LOUVER HARNESSES AND LOUVER MOTORS
  • [13] RKY436A001 LOUVER In Stock Notes: FLAP ASSY(A) - WIDER/UPPER FLAP
  • [14] RKY436A003 LOUVER In Stock Notes: FLAP ASSY(B) - THINNER/LOWER FLAP
  • [15] RKY436A005 LOUVER In Stock Notes: WIDER/UPPER FLAP
  • [16] RKY436A007 LOUVER In Stock Notes: THINNER/LOWER FLAP Show Image
  • [17] RKY436A009 LOUVER ASSY In Stock Notes: CONNECTIING PLATE AND 6 LOUVER BLADES - RIGHT SIDE
  • [18] RKY436A009A LOUVER ASSY In Stock Notes: CONNECTIING PLATE AND 6 LOUVER BLADES - LEFT SIDE Show Image
  • [19] RKW935C200 COLLAR In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [20-21] RKY144A010 LINK ASSY(R) In Stock Notes: RIGHT, RIGHT Show Image
  • [21] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049 Notes: FOR LOUVER(LEFT/RIGHT)
  • [22-23] RKY144A011 LINK ASSY(L) In Stock Notes: LEFT, LEFT Show Image
  • [23] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049 Notes: FOR LOUVER(LEFT/RIGHT)
  • [24] RKY504A003A HARNESS ASSY In Stock Notes: FOR FLAP AND LOUVER, FOR FLAP & LOUVER
  • [25] RKY504A004A HARNESS ASSY In Stock Show Image
  • [26] SSA423A114 HOSE,DRAIN In Stock
  • [27] SSA326A047 PLUG In Stock Notes: PLUG FOR CONDENSATE/DRAIN TRAY.
  • [28] RKY111A001 BASE ASSY In Stock
  • [29] RKY129A002 PLATE,BASE Contact   Contact
  • [30] RKY129A003 BRACKET,MOTOR(U) In Stock Notes: FRONT, FRONT Show Image
  • [31] RKY129A004 BRACKET,MOTOR(L) In Stock Notes: REAR, REAR Show Image
  • [32] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING
  • [33] SSA431G045A FAN In Stock
  • [34] SSA512T092 MOTOR, DC In Stock Substitute: SSA512T127D Notes: FOR IMPELLER
  • [35] RKY032A001 PLATE,INSTALLATION In Stock
  • [36] RKY133A008A PLATE ASSY,ORNAMEN In Stock
  • [37] RKY129A036 HOLDER,FILTER In Stock Notes: 1pc ONLY
  • [37-39] RKY129A023B FILTER UNIT ASSY In Stock
  • [38] RKY129A025 HOLDER,FILTER(R) In Stock Notes: !, 1pc ONLY
  • [39] RKY129A028 HOLDER,FILTER In Stock Notes: !, 1pc ONLY
  • [40] RKY129A034 COVER ASSY(PIPE) Contact   Contact
  • [41] RKY129A030 COVER,CONNECTOR Contact   Contact
  • [42] RKY132A001A LID In Stock
  • [43] RKY132A002 LID(L) In Stock Substitute: RKY132A002A
  • [44] SSA913A007 SCREW In Stock Notes: 1PC ONLY, 4X12 Show Image
SKU: SRK35ZIX-S PANEL AND FAN ASSY Category:
