SRK35ZGX-S PANEL AND FAN ASSY

SRK35ZGX-S PANEL AND FAN ASSY

Available Parts

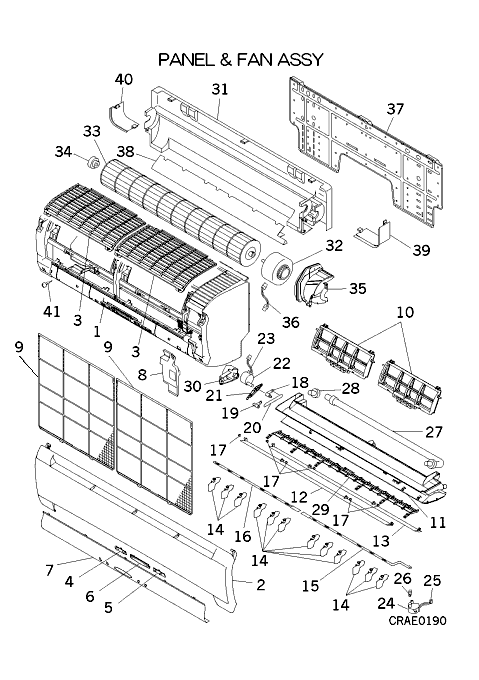

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RKT122A600B PANEL ASSY FRONT In Stock
  • [1-10] RKT102A750F PANEL ASSY,FRONT In Stock
  • [2] RKT435A600K GRILLE,INLE In Stock
  • [3] RKT435A601 GRILLE,OUT In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [4] RKT133A601 LENS(L) Contact   Contact
  • [5] RKT133A602A LENS(R) Contact   Contact
  • [6] RKT133A750 PLATE,ORNAM Contact   Contact
  • [7] RKT133A751D PLATE,DISPLAY Contact   Contact
  • [8] RKT132A751 LID(TERMINA In Stock
  • [9] RKT437A600 FILTER In Stock Notes: RETURN AIR FILTER - SOLD INDIVIDUALLY, 1pc ONLY
  • [10] RKT129A607 HOLDER FILT In Stock
  • [11] RKT435A401G GRILLE,OUT In Stock
  • [11-30] RKT435A750A GRILLE OUTLET Out of Stock Substitute: OUT OF PRODUCTION
  • [12] RKT436A400B FLAP,A In Stock Notes: UPPER HORIZONTAL FLAP, UPPER
  • [13] RKT436A401B FLAP,B In Stock Notes: LOWER FLAP, LOWER Show Image
  • [14] RKT436A403B LOUVER In Stock Notes: 1pc ONLY Show Image
  • [14-16] RKT436A402B LOUVER ASSY In Stock
  • [15] RKT129A409B PLATE,CONNECTING(R Contact   Contact
  • [16] RKT129A410B PLATE,CONNECTING(L Contact   Contact
  • [17] RKR935C001B COLLAR Out of Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [18] RKT144A400 CRANK,A In Stock Notes: LOWER Show Image
  • [19] RKT144A401 CRANK,B In Stock Notes: UPPER Show Image
  • [20] RKT144A402 LINK In Stock Show Image
  • [21] RKT129A404 BRACKET,MOT In Stock Notes: FOR FLAP Show Image
  • [22] SSA512T028 MOTOR STEPPING In Stock Notes: FOR FLAP - FOR HORIZONTAL UP/DOWN, FOR FLAP Show Image
  • [23] RKS504A100A HARNESS In Stock Notes: HARNESS FOR FLAP MOTOR, FOR FLAP MOTOR Show Image
  • [24] SSA512T017 MOTOR,STEPPING In Stock Substitute: SSA512T096 Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
  • [25] RKS504A100D HARNESS In Stock Show Image
  • [26] RKT144A403 CRANK(C) Contact   Contact
  • [27] SSA423A114 HOSE,DRAIN In Stock
  • [28] SSA326A041 PLUG In Stock Substitute: SSA326A043 Show Image
  • [29] RKT131A750 GUARD FAN Contact   Contact
  • [30] RKT129A755 COVER In Stock
  • [31] RKT111A750 BASE ASSY Contact   Contact
  • [32] SSA512T046F MOTOR In Stock Substitute: SSA512T149A Notes: NO HARNESS, FOR IMPELLER Show Image
  • [33] SSA431G040A IMPELLER In Stock Notes: FAN BARREL
  • [34] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING
  • [36] RKS504A601 HARNESS Contact Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION, FOR FAN MOTOR   Contact
  • [37] RKT032A400A PLATE,INSTA In Stock
  • [38] RKT132A752A LID ASSY Contact   Contact
  • [39] RKT132A401B LID,R In Stock
  • [40] RKT132A402B LID,L In Stock Notes: COOL WHITE
  • [41] SSA913A007A SCREW,TAP In Stock Notes: 1PC ONLY, 4X14
