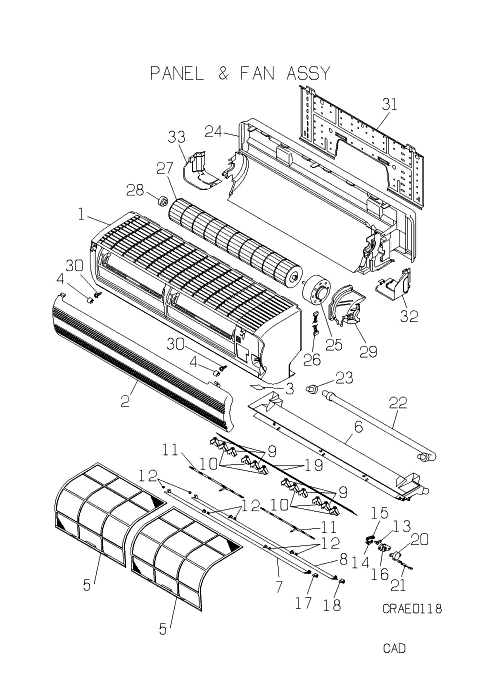

SRK28HCA-S PANEL AND FAN ASSY

SRK28HCA-S PANEL AND FAN ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RKV122A001A PANEL FRONT Out of Stock
  • [1-5] RKV102A500 PANEL ASSY Out of Stock
  • [2] RKV435A501 GRILLE,AIR Contact   Contact
  • [3] RKV133A500 PLATE,DISPL Contact   Contact
  • [4] RKV129A007 CAP In Stock Show Image
  • [5] RKV437A001 FILTER In Stock Notes: 1pc ONLY
  • [6] RKV435A003 GRILLE,AIR OUTLET Out of Stock Notes: !
  • [6-23] RKV435A500 GRILLE ASSY Out of Stock Substitute: OUT OF PRODUCTION
  • [7] RKV436A001 FLAP,A In Stock Notes: UPPER
  • [8] RKV436A002 FLAP,B In Stock Notes: LOWER
  • [9] RKV436A501 LOUVER Contact Notes: 1pc ONLY   Contact
  • [9-11] RKV436A500 LOUVER ASSY Contact   Contact
  • [10] RKV436A501A LOUVER Contact Notes: 1pc ONLY   Contact
  • [11] RKV129A003 PLATE,CONNECTING Contact   Contact
  • [12] RKR935C001B COLLAR Out of Stock Substitute: OUT OF PRODUCTION Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [13] RKV144A001 CRANK,A In Stock Show Image
  • [14] RKV144A002 CRANK,B In Stock Notes: LENGTH 1.7CM Show Image
  • [15] RKV144A003 LINK In Stock Notes: LENGTH 3CM Show Image
  • [16] RKV129A005 BRACKET,MOT Contact   Contact
  • [17] RKV937C500 CLIP Out of Stock Substitute: OUT OF PRODUCTION Show Image
  • [18] RKV937C500A CLIP In Stock
  • [19] RKV131A500 GUARD,FAN Contact   Contact
  • [20] SSA512T017 MOTOR,STEPPING In Stock Substitute: SSA512T096 Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
  • [21] RKS504A100F HARNESS In Stock Notes: FOR FLAP MOTOR Show Image
  • [22] SSA423A114 HOSE,DRAIN In Stock
  • [23] SSA326A043 PLUG In Stock Notes: LENGTH 3.5CM Show Image
  • [24] RKV111A001 BASE ASSY Contact   Contact
  • [25] SSA511T286 MOTOR, AC In Stock Notes: FOR IMPELLER
  • [26] RKR504A016 HARNESS In Stock Notes: FOR MOTOR,AC Show Image
  • [27] SSA431G042C IMPELLER In Stock
  • [28] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING Show Image
  • [29] RKV129A002 COVER,MOTOR In Stock Show Image
  • [30] SSA913A007A SCREW,TAP In Stock Notes: 1PC ONLY/ LENGTH 2CM, 4X14 Show Image
  • [31] RKV032A001 PLATE,INSTA In Stock
  • [32] RKV132A001A LID(R) In Stock Notes: RIGHT LID Show Image
  • [33] RKV132A002 LID,L In Stock Notes: LEFT LID Show Image
SKU: SRK28HCA-S PANEL AND FAN ASSY Category:
