SRK25GZ-L1 HEAT EXCH. AND CONTROL

SRK25GZ-L1 HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

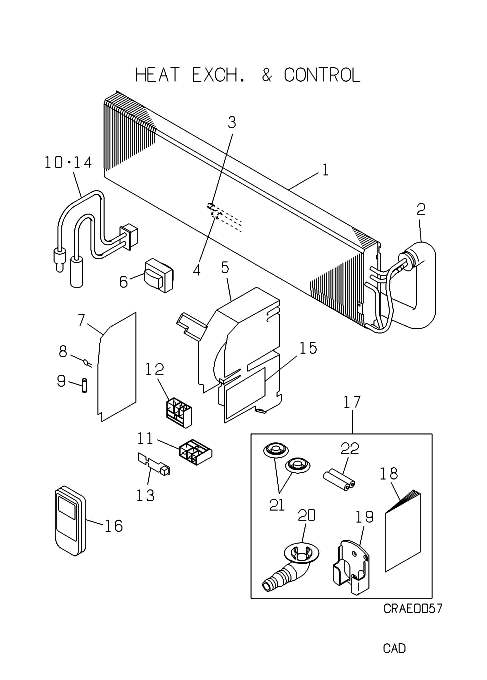

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RKS311A500B
HEAT EXCH
Contact
[1-4] Contact
RKS301A500A
HEAT EXCH
Contact
[2-4] Contact
RKS321A500
P I P E
Contact
[3] Contact
SSA323F006
UNION
Contact
[4] Contact
SSA323F006A
UNION
Contact
[5] Contact
RKS142A500
BOX CONT
Contact
[6] In Stock
SSA554A285B
TRANSFORMER
Show Image
SSA554A285B

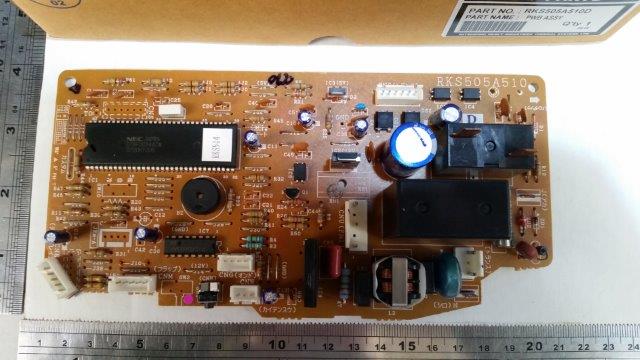

[7-9] Out of Stock
RKS505A510D
PWB ASSY
Notes: OUT OF PRODUCTION Show Image
RKS505A510D
[8] In Stock
SSA555B003A
VARISTOR
Show Image
SSA555B003A
[9] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132

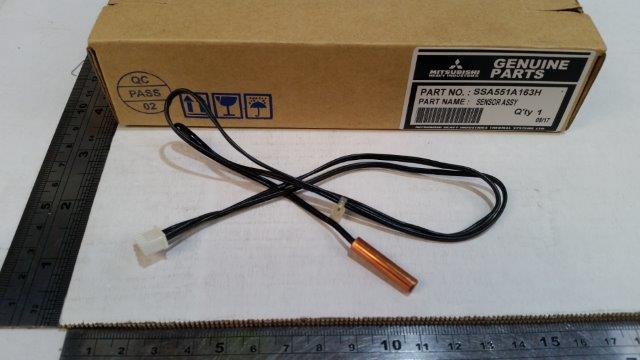

[10] In Stock
SSA551A163H
SENSOR
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), INCL.SENSOR (ROOM TEMP.& HEAT EXCH.) Show Image
SSA551A163H
[11] In Stock
SSA561B665
BLOCK TERMI
Notes: T1 Show Image
SSA561B665
[12] Contact
SSA561B211B
BLOCK,TERMI
Contact
Substitute: SSA561B665A Notes: TB2
[13] Contact
RKS505A511
PWB DISPLAY
Contact
Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION - PLUGS STRAIGHT INTO MAIN PCB - NO HARNESS
[14] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[15] Contact
RKS011G500B
LABEL,WIRING
Contact
[16] In Stock
RKS502A503
REMOTE CONTROL
Show Image
RKS502A503
[17] Out of Stock
RKS008A500T
PARTS SET
[18] Contact
RWA012A177
MANUAL,INSTRUCTION
Contact
[19] In Stock
RKN032A002A
PLATE REMOC
Show Image
RKN032A002A
[20] In Stock
RPC008A601
DRAIN KIT
Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT
[21] In Stock
SSA947A089
GROMMET
Notes: D20.1, SSA422A024 ELBOW Show Image
SSA947A089
[22] Contact
RKH549A500B
BATTERY
Contact
[23] Contact
RSA011F281AK
LABEL,MODEL NAME
Contact
SKU: SRK25GZ-L1 HEAT EXCH. AND CONTROL Category:
