SRK24YMA-S HEAT EXCH. AND CONTROL

Name: SRK24YMA-S HEAT EXCH. AND CONTROL
SKU: SRK24YMA-S HEAT EXCH. AND CONTROL
Availability: InStock

SRK24YMA-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

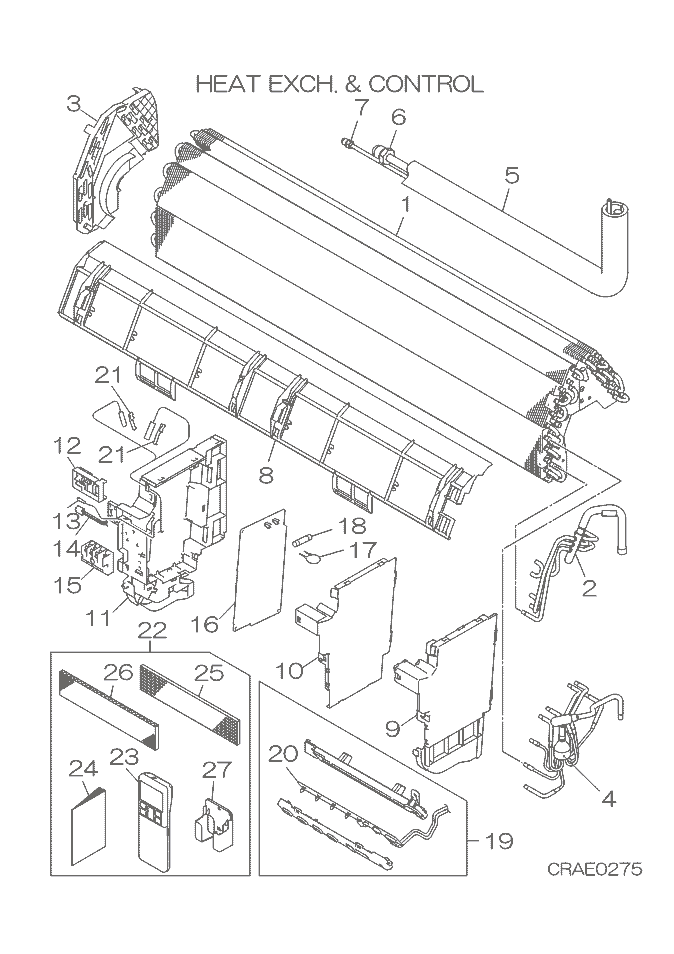

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] In Stock

RMA301A003SD

HEAT EXCH ASSY (AIR)

Notes: Indoor Heat Exchanger Coil assembly

[2] In Stock

RMA315D004A

HEADER ASSY

[3] In Stock

RKW129A410

BRACKET ASSY(L)

[4] In Stock

RMA315A004

DISTRIBUTOR ASSY

[5-7] Contact

RMA321A030A

PIPE ASSY

Contact

[6] In Stock

SSA323F012F

UNION SOLDR

Notes: GAS, UNION SOLDR/ LENGTH 3.5CM Show Image

[7] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[8] In Stock

RKW129A411

HOLDER ASSY,FILTER

[9] In Stock

RKW142A402

BOX,CONTROL(R)

Show Image

[9-10] In Stock

RKW142A400

BOX ASSY,CONTROL(R

[10] Contact

RKW132A404

COVER,CONTROL(R)

Contact

[11] In Stock

RKW142A401

BOX ASSY,CONTROL(L

Show Image

[12] In Stock

RKW129A407

HOLDER,SENSOR

Show Image

[13] In Stock

SSA551A223G

SENSOR ASSY

Notes: ROOM TEMP.& 2x HEAT EXCH. 3 ON 1 PLUG Show Image

[14] In Stock

SSA551B017C

SENSOR(HUMIDITY)

Notes: HUMIDITY SENSOR Show Image

[15] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[16-18] In Stock

RKY505A001NF

PWB ASSY

Notes: INDOOR MAIN PC BOARD

[17] In Stock

SSA555B050C

VARISTOR

Notes: Z1 Show Image

[18] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[19] In Stock

RKW503A400

PWB ASSY(DISPLAY)

Notes: Display / Receiver with push botton & wiring harness Show Image

[20] In Stock

RKW505A400

PWB (DISPLAY)

Notes: 13/01-DOES COME WITH HARNESS (RECEIVER PCB) Show Image

[21] In Stock

PSA941F001

SPRING LEAF

Notes: 1pc ONLY Show Image

[22] Contact

RKW008A402C

PARTS,STAN DARD

Contact

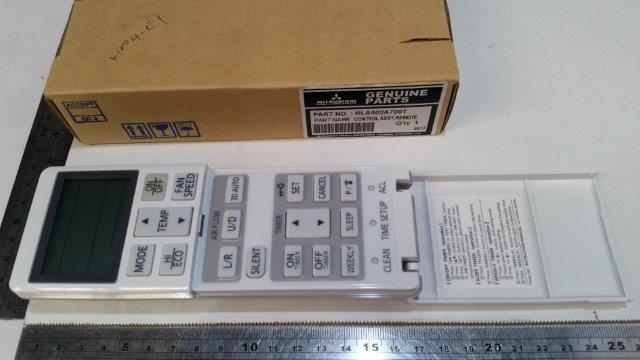

[23] In Stock

RLA502A700T

REMOTE CONTROL

Show Image

[24] Contact

RKW012A412C

MANUAL,INSTRUCTION

Contact

[25] In Stock

RKT437A005D

FILTER,LIGHT

Notes: 1pc ONLY, PHOTOCATALYTIC / DEODORIZER FILTER Show Image

[25-26] Contact

RKW437A201A

FILTER ASSY,CLEAN

Contact

[26] In Stock

RKT437A011D

FILTER,CLEAN

Notes: 1pc ONLY, ALLERGEN FILTER Show Image

[27] In Stock

RLA032A700

HOLDER(REMO-CON)

Notes: Holder/Cradle for Remote control Show Image

[28] Contact

RKW011F400AR

LABEL,MODEL NAME

Contact
