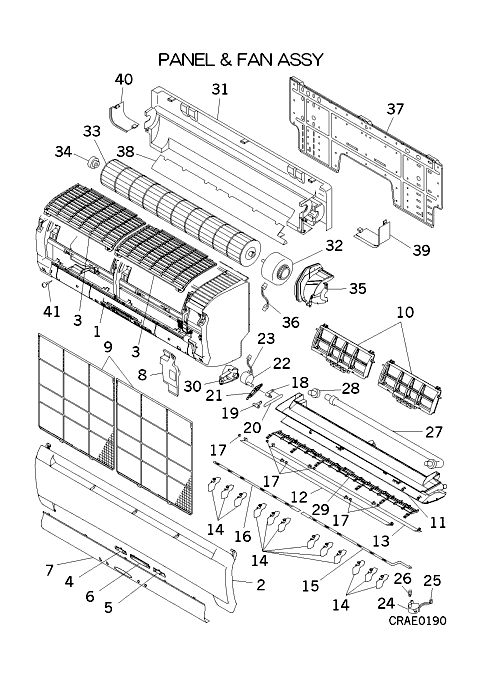

SRK20ZGX-S PANEL AND FAN ASSY

SRK20ZGX-S PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock
RKT122A600B
PANEL ASSY FRONT
Notes: !
[1-10] Out of Stock
RKT102A750F
PANEL ASSY,FRONT
Substitute: OUT OF PRODUCTION
[2] In Stock
RKT435A600K
GRILLE,INLET
Show Image
RKT435A600K
[3] In Stock
RKT435A601
GRILLE,OUT
Notes: ***SOLD INDIVIDUALLY***
[4] Contact
RKT133A601
LENS(L)
Contact
[5] Contact
RKT133A602A
LENS(R)
Contact
[6] Contact
RKT133A750
PLATE,ORNAM
Contact
[7] Contact
RKT133A751D
PLATE,DISPLAY
Contact
[8] In Stock
RKT132A751
LID(TERMINA
[9] In Stock
RKT437A600
FILTER
Notes: W339.5XH350.5(T2), RETURN AIR FILTER - SOLD INDIVIDUALLY
[10] In Stock
RKT129A607
HOLDER FILT
[11] In Stock
RKT435A401G
GRILLE,OUT
Notes: !
[11-30] Out of Stock
RKT435A750A
GRILLE OUTLET
Substitute: OUT OF PRODUCTION
[12] In Stock
RKT436A400B
FLAP,A
Notes: !UPPER, UPPER HORIZONTAL FLAP
[13] In Stock
RKT436A401B
FLAP,B
Notes: !LOWER, LOWER FLAP Show Image
RKT436A401B
[14] In Stock
RKT436A403B
LOUVER
Notes: ! Show Image
RKT436A403B
[14-16] In Stock
RKT436A402B
LOUVER ASSY
[15] Contact
RKT129A409B
PLATE,CONNECTING(R
Contact
Notes: !
[16] Contact
RKT129A410B
PLATE,CONNECTING(L
Contact
Notes: !
[17] Out of Stock
RKR935C001B
COLLAR
Substitute: OUT OF PRODUCTION Notes: !, ***SOLD INDIVIDUALLY***
[18] In Stock
RKT144A400
CRANK,A
Notes: ! Show Image
RKT144A400
[19] In Stock
RKT144A401
CRANK,B
Notes: ! Show Image
RKT144A401
[20] In Stock
RKT144A402
LINK
Notes: ! Show Image
RKT144A402
[21] In Stock
RKT129A404
BRACKET,MOT
Notes: ! Show Image
RKT129A404
[22] In Stock
SSA512T028
MOTOR STEPPING
Notes: FOR FLAP, FOR FLAP‚ - FOR HORIZONTAL UP/DOWN Show Image
SSA512T028
[23] In Stock
RKS504A100A
HARNESS
Notes: FOR FLAP MOTOR, HARNESS FOR FLAP MOTOR Show Image
RKS504A100A
[24] In Stock
SSA512T017
MOTOR,STEPPING
Notes: FOR LOUVER, VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
SSA512T017
[25] In Stock
RKS504A100D
HARNESS
Notes: FOR LOUVER MOTOR Show Image
RKS504A100D
[26] Contact
RKT144A403
CRANK(C)
Contact
[27] In Stock
SSA423A114
HOSE,DRAIN
[28] In Stock
SSA326A043
PLUG
Notes: !, LENGTH 3.5CM Show Image
SSA326A043
[29] Contact
RKT131A750
GUARD FAN
Contact
Notes: !
[30] In Stock
RKT129A755
COVER
Notes: ! Show Image
RKT129A755
[31] Contact
RKT111A750
BASE ASSY
Contact
[32] In Stock
SSA512T149A
MOTOR,DC
Notes: FOR IMPELLER, COMES WITH HARNESS Show Image
SSA512T149A
[33] In Stock
SSA431G040A
IMPELLER
Notes: FAN BARREL
[34] In Stock
SSA923C136
BEARING, PLANE
Notes: END BEARING Show Image
SSA923C136
[35] In Stock
RKT129A400A
COVER,MOTOR
[36] Contact
RKS504A601
HARNESS
Contact
Substitute: OUT OF PRODUCTION Notes: FOR FAN MOTOR, OUT OF PRODUCTION
[37] In Stock
RKT032A400A
PLATE,INSTA
[38] Contact
RKT132A752A
LID ASSY
Contact
[39] In Stock
RKT132A401B
LID,R
[40] In Stock
RKT132A402B
LID,L
Notes: Cool White Show Image
RKT132A402B
[41] In Stock
SSA913A007A
SCREW,TAP
Notes: 4X14, 1pc ONLY/ LENGTH 2CM Show Image
SSA913A007A
