SRK18YL-S PANEL AND FAN ASSY

SRK18YL-S PANEL AND FAN ASSY

Available Parts

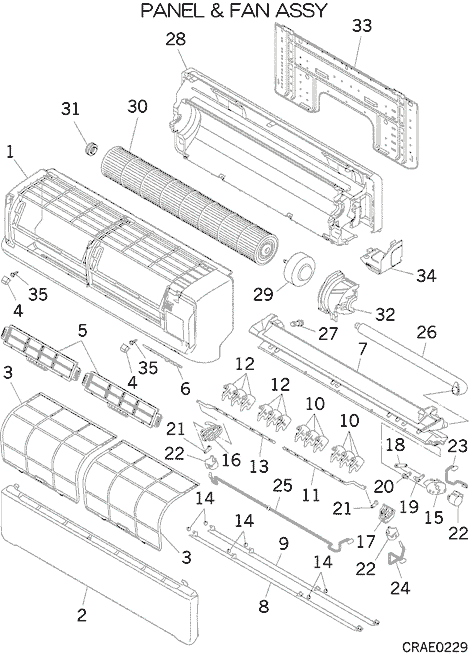

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RKX122A300N PANEL, FRONT In Stock
  • [1-6] RMA102A100M PANEL ASSY, FRONT In Stock
  • [2] RMA435A100H PANEL AIR INLET In Stock
  • [3] RKX437A300 FILTER, AIR In Stock Notes: RETURN AIR FILTER - UNITS HAS 2 - SOLD INDIVIDUALLY, 1pc ONLY
  • [4] RKX129A013 CAP In Stock Show Image
  • [5] RKX129A014 HOLDER,FILTER In Stock Notes: FILTER HOLDER - UNIT HAS 2 - SOLD INDIVIDUALLY, 1pc ONLY
  • [6] RKX133A300 PLATE,ORNAMENT Contact   Contact
  • [7] RKX435A303 GRILLE, AIR OUTLET In Stock
  • [7-27] RKX435A302M GRILLE ASSY, AIR OUT In Stock
  • [8] RKX436A001 FLAP(A) In Stock Substitute: RKX436A001C Notes: UPPER HORIZONTAL FLAP, UPPER
  • [9] RKX436A002C FLAP(B) In Stock Notes: LOWER HORIZONTAL FLAP/ LENGTH 69.5CM, LOWER
  • [10] RKX436A005B LOUVER In Stock Notes: *** ONE LOUVER ONLY ***, SEE LOUVER ASSY Show Image
  • [10-11] RKX436A003A LOUVER ASSY (R ) In Stock Notes: 6 LOUVER FINS AND CONNECTING ROD - RIGHT SIDE ONLY
  • [11] RKX129A008A PLATE,CONNECTING(R) In Stock Show Image
  • [12] RKX436A005B LOUVER In Stock Notes: *** ONE LOUVER ONLY ***, SEE LOUVER ASSY Show Image
  • [12-13] RKX436A004B LOUVER ASSY (L) In Stock Notes: 6 LOUVER FINS AND CONNECTING ROD - LEFTSIDE ONLY - SPARE PART IS BLACK COLOUR Show Image
  • [13] RKX129A009 PLATE,CONNECTING(L) Contact Notes: !   Contact
  • [14] RKW935C200 COLLAR In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [15] RKX129A010 BRACKET,MOTOR(A) In Stock
  • [16] RKX129A011 BRACKET,MOTOR(B) In Stock
  • [17] RKX129A012 BRACKET,MOTOR(C) In Stock
  • [18] RKX144A001 LINK In Stock Show Image
  • [19] RKX144A002 CRANK(A) In Stock Show Image
  • [20] RKX144A003 CRANK(B) In Stock Show Image
  • [21] RKW144A204 CRANK(C) In Stock Show Image
  • [22] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049 Notes: FOR LOUVER(LEFT/RIGHT)
  • [23] RKS504A100G HARNESS In Stock Notes: WIRING HARNESS FOR FLAP - UP AND DOWN, FOR FLAP MOTOR
  • [24] RKS504A100 HARNESS In Stock Notes: WIRING HARNESS FOR FOR RIGHT LOUVER SET, FOR RIGHT LOUVER MOTOR Show Image
  • [25] RKS504A100L HARNESS In Stock Notes: WIRING HARNESS FOR LEFT LOUVER MOTOR, FOR LEFT LOUVER MOTOR
  • [26] SSA423A114 HOSE,DRAIN In Stock
  • [27] SSA326A047 PLUG In Stock Notes: PLUG FOR CONDENSATE/DRAIN TRAY.
  • [28] RKX111A001 BASE ASSY In Stock Substitute: RKX111A001C Show Image
  • [29] SSA512T127 MOTOR, DC In Stock Notes: FOR IMPELLER Show Image
  • [30] SSA431G046A IMPELLER In Stock Notes: FAN BARREL
  • [31] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING Show Image
  • [32] RKX129A005 COVER(MOTOR) In Stock Show Image
  • [33] RKX032A001 PLATE,INSTALLATION In Stock Notes: MOUNTING PLATE
  • [34] RKX132A001A LID In Stock Notes: RIGHT HAND SIDE LID. (COVERS PIPING) Show Image
  • [35] SSA913A007A SCREW,TAP In Stock Notes: 1PC ONLY/ LENGTH 2CM, 4X14 Show Image
SKU: SRK18YL-S PANEL AND FAN ASSY Category:
