SRK18YL-S HEAT EXCH. AND CONTROL

Name: SRK18YL-S HEAT EXCH. AND CONTROL
SKU: SRK18YL-S HEAT EXCH. AND CONTROL
Availability: InStock

SRK18YL-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

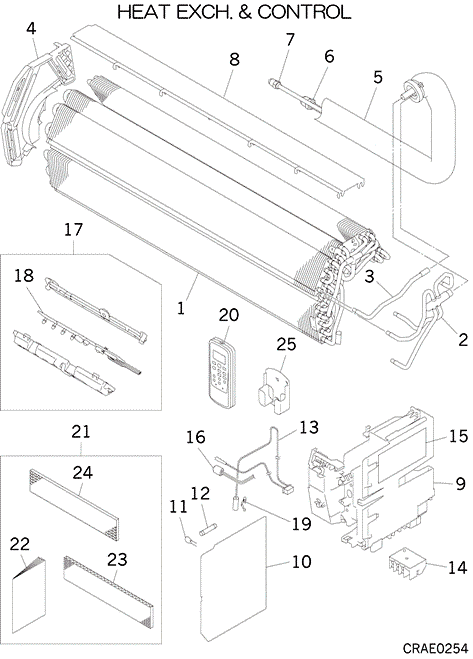

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] In Stock

RKX301A011S

HEAT EXCH

Notes: Indoor Heat exchanger coil assmebly

[2] Contact

RKX315D007

HEADER ASSY

Contact

Notes: !

[3] Contact

RKX321A038

PIPE

Contact

Notes: !

[4] Contact

RKX129A016

BRACKET ASSY(L)

Contact

Notes: !

[5-7] Contact

RKX321A001B

PIPE ASSY

Contact

[6] In Stock

SSA323F088B

UNION(SLD)

Notes: FOR GAS, FOR GAS‚ / LENGTH 3.2CM Show Image

[7] In Stock

SSA323F088A

UNION(SLD)

Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image

[8] Contact

RKX129A001B

PLATE ASSY,BAFFLE

Contact

[9] In Stock

RKX142A001

BOX,CONTROL

Show Image

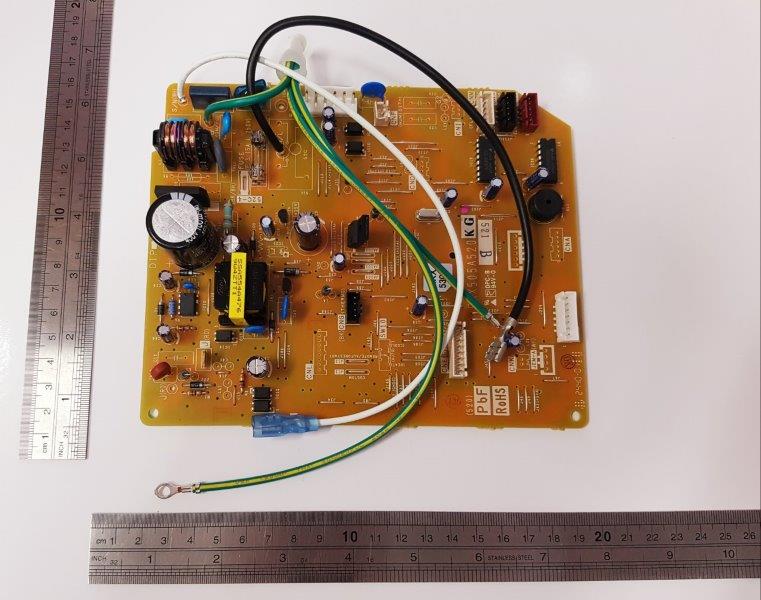

[10-12] In Stock

RKX505A520JG

PWB ASSY

Notes: Indoor Main PCB

[11] Contact

SSA555B058AD

VARISTOR

Contact

Notes: Z

[12] In Stock

SSA564A132

FUSE(CURRENT)

Notes: 3.15A Show Image

[13] In Stock

SSA551A163L

SENSOR ASSY

Notes: SENSOR INCL.(ROOM TEMP.& HEAT EXCHANGE TEMP)/ LENGTH 40CM Show Image

[14] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[15] Contact

RKX011G603A

LABEL,WIRING

Contact

[16] In Stock

SSA551B017

SENSOR(HUMIDITY)

Notes: HS, SENSOR(HUMIDITY)/ LENGTH 30.5CM Show Image

[17] In Stock

RKX503A301

DISPLAY ASSY

Notes: DISPLAY ASSY Show Image

[18] In Stock

RKX505A007

PWB ASSY (DISPLAY)

Notes: Display/Receiver board - comes with harness Show Image

[19] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[20] In Stock

RKX502A007

CONTROL, REMOTE

Notes: Holder = RKN032A002B Show Image

[21] Contact

RMA008A011C

PARTS,STANDARD

Contact

[22] Contact

RMA012A031A

MANUAL,INSTRUCTION

Contact

[23] In Stock

RKT437A801D

FILTER,CLEAN(BIO)

Notes: 1pc ONLY, ALLERGEN FILTER / LENGTH 25.5CM Show Image

[24] In Stock

RKT437A005

FILTER,CLEAN

Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape

[25] In Stock

RKN032A002B

HOLDER

Show Image

[26] Contact

RMA011F013J

LABEL,MODEL NAME

Contact

SKU: SRK18YL-S HEAT EXCH. AND CONTROL Category: Uncategorised

Partfinder

SRK18YL-S HEAT EXCH. AND CONTROL

Parts List

The Right Air Conditioning Parts- First Time.
