SRK13YL-S HEAT EXCH. AND CONTROL

SRK13YL-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

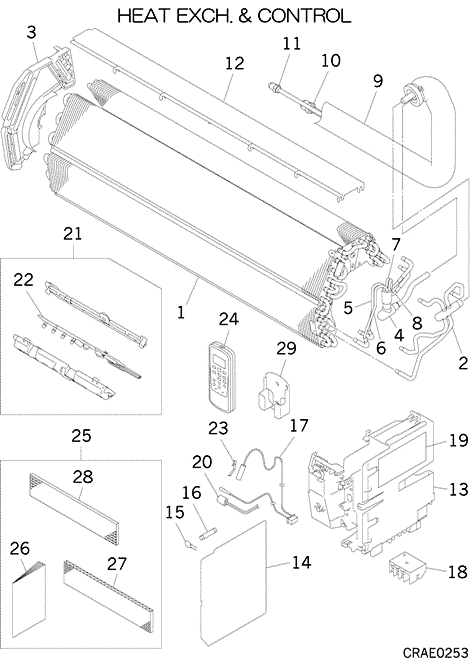

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-12] In Stock
RKX301A007SP
HEAT EXCH ASSY
[2] Contact
RKX315D005
HEADER ASSY
Contact
[3] Contact
RKX129A016
BRACKET ASSY(L)
Contact
Notes: !
[4] Contact
RKX315A003
DISTRIBUTOR
Contact
Notes: !
[4-8] Contact
RKX315A004
DISTRIBUTOR ASSY
Contact
[5] Contact
P210V24X140
CAPILLARY
Contact
[6] Contact
P211V30X150
CAPILLARY
Contact
[7] Contact
P210V24X100
CAPILLARY
Contact
[8] Contact
P211V30X110
CAPILLARY
Contact
[9-11] Contact
RKX321A001
PIPE ASSY
Contact
[10] In Stock
SSA323F088
UNION(SLD)
Notes: FOR GAS, LENGTH 2.6CM Show Image
SSA323F088
[11] In Stock
SSA323F088A
UNION(SLD)
Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image
SSA323F088A
[12] Contact
RKX129A001B
PLATE ASSY,BAFFLE
Contact
[13] In Stock
RKX142A001
BOX,CONTROL
Show Image
RKX142A001
[14] In Stock
RKX505A520JF
PWB ASSY
[15] Contact
SSA555B058AD
VARISTOR
Contact
Notes: Z
[16] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[17] In Stock
SSA551A163L
SENSOR ASSY
Notes: SENSOR INCL.(ROOM TEMP.& HEAT EXCHANGE TEMP)/ LENGTH 40CM Show Image
SSA551A163L
[18] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[19] Contact
RKX011G603A
LABEL,WIRING
Contact
[20] In Stock
SSA551B017
SENSOR(HUMIDITY)
Notes: HS, SENSOR(HUMIDITY)/ LENGTH 30.5CM Show Image
SSA551B017
[21] In Stock
RKX503A301
DISPLAY ASSY
Notes: DISPLAY ASSY Show Image
RKX503A301

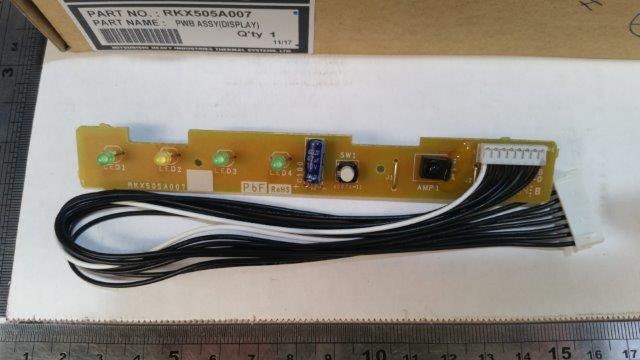

[22] In Stock
RKX505A007
PWB ASSY (DISPLAY)
Notes: Display/Receiver board - comes with harness Show Image
RKX505A007
[23] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[24] In Stock
RKX502A007
CONTROL, REMOTE
Notes: Holder = RKN032A002B Show Image
RKX502A007
[25] Contact
RMA008A011C
PARTS,STANDARD
Contact
[26] Contact
RMA012A031A
MANUAL,INSTRUCTION
Contact
[27] In Stock
RKT437A801D
FILTER,CLEAN(BIO)
Notes: 1pc ONLY, ALLERGEN FILTER / LENGTH 25.5CM Show Image
RKT437A801D
[28] In Stock
RKT437A005
FILTER,CLEAN
Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape
[29] In Stock
RKN032A002B
HOLDER
Show Image
RKN032A002B
[30] Contact
RMA011F013H
LABEL,MODEL NAME
Contact
