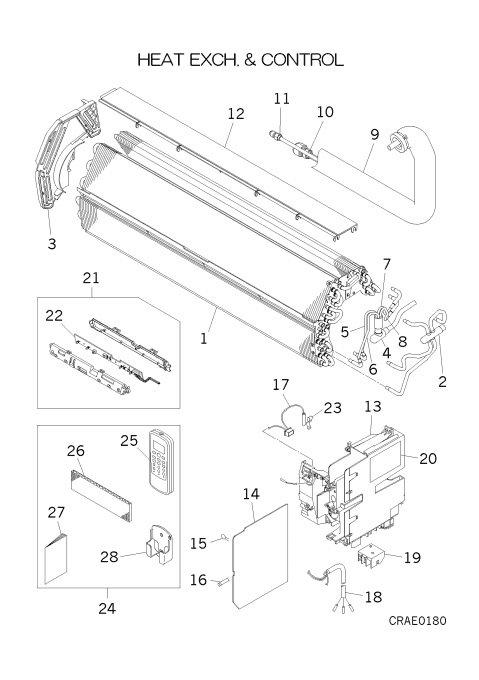

SRK13CFV HEAT EXCH. AND CONTROL

SRK13CFV HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] Contact
RKX301A008
HEAT EXCH ASSY(AIR
Contact
[2] Contact
RKX315D004
HEADER ASSY
Contact
Notes: !
[3] Contact
RKX129A003
BRACKET(L)
Contact
Notes: !
[4] Contact
RKX315A003
DISTRIBUTOR
Contact
Notes: !
[4-8] Contact
RKX315A002
DISTRIBUTOR ASSY
Contact
[5] Contact
RKX315B001
CAPILLARY
Contact
Notes: !
[6] Contact
RKX315B002
CAPILLARY
Contact
Notes: !
[7] Contact
RKX315B003
CAPILLARY
Contact
Notes: !
[8] Contact
RKX315B004
CAPILLARY
Contact
Notes: !
[9-11] Contact
RKX321A001A
PIPE ASSY
Contact
[10] Contact
SSA323F082B
UNION(SLD)
Contact
Notes: GAS, FOR GAS
[11] Contact
SSA323F082A
UNION(SLD)
Contact
Notes: LIQ.
[12] Contact
RKX129A001
PLATE ASSY,BAFFLE
Contact
[13] In Stock
RKX142A001
BOX,CONTROL
Show Image
RKX142A001
[14-16] In Stock

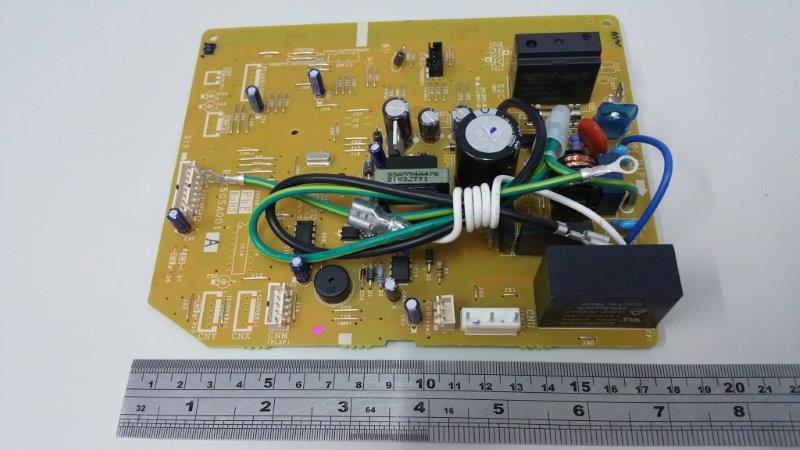

RKX505A001A
PWB ASSY
Show Image
RKX505A001A
[15] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[16] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[17] In Stock
SSA551A163L
SENSOR ASSY
Notes: SENSOR INCL.(ROOM TEMP.& HEAT EXCHANGE TEMP)/ LENGTH 40CM Show Image
SSA551A163L
[18] In Stock
RKV504A500G
HARNESS ASSY
[19] Contact
SSA561B713
BLOCK,TERMI
Contact
[20] Contact
RKX011G001
LABEL,WIRING
Contact
Notes: !
[21] In Stock
RKX503A001A
DISPLAY ASSY
Show Image
RKX503A001A
[22] In Stock
RKX505A003A
PWB ASSY(DISPLAY)
Show Image
RKX505A003A
[23] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[24] Contact
RKX008A003
PARTS,STANDARD
Contact
Notes: !
[25] In Stock
RKX502A007B
REMOTE CONTROL
Show Image
RKX502A007B
[26] Contact
RKT437A011A
FILTER,CLEAN
Contact
Notes: 1pc ONLY, !
[27] Contact
RKX012A004
MANUAL,INSTRUCTION
Contact
Notes: !
[28] In Stock
RKN032A002B
HOLDER
Show Image
RKN032A002B
[29] Contact
RSA011F407
LABEL,MODEL NAME
Contact
SKU: SRK13CFV HEAT EXCH. AND CONTROL Category:
