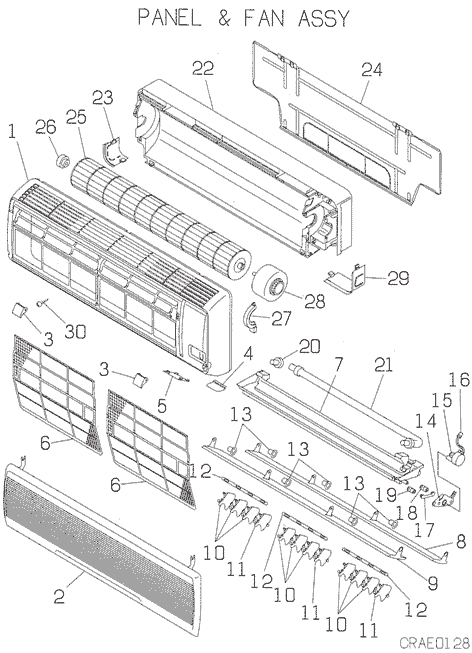

SRK12CCA PANEL AND FAN ASSY

SRK12CCA PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RKR122A600
FRONT PANEL
Contact
[1-6] Out of Stock
RWA102A008A
FRONT PANEL
[2] In Stock
RKR435A601
GRILLE ASSY
[3] In Stock

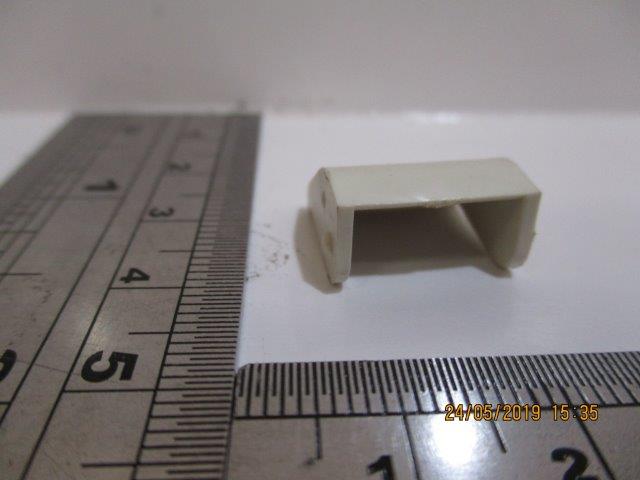

RKR129A604
CAP
Show Image
RKR129A604
[4] Contact
RKR129A600
PLATE
Contact
[5] Contact
RKR133A600A
PLATE ASSY
Contact
[6] Out of Stock
RKR437A001
AIR FILTER
Substitute: OUT OF PRODUCTION Notes: 1pc ONLY, 2 PER UNIT - SOLD INDIVIDAULLY
[7] Contact
RKR435A003C
GRILLE,AIR OUTLET
Contact
[7-21] In Stock
RWA435A003
GRILLE OUT
[8] Contact
RKR436A005A
FLAP,A
Contact
Notes: LOWER
[9] Contact
RKR436A006A
FLAP,B
Contact
Notes: UPPER
[10] Contact
RKR436A101G
LOUVER
Contact
Notes: 1pc ONLY
[10-12] Contact
RWA436A002
LOUVER ASSY
Contact
[11] Contact
RKR436A101H
LOUVER
Contact
Notes: 1pc ONLY
[12] Contact
RKR129A100C
PLATE,CONNECTING
Contact
[13] In Stock
RKR935C001
COLLAR
Notes: 1pc ONLY, ***SOLD INDIVIDUALLY*** Show Image
RKR935C001
[14] In Stock
RKR129A009
BRACKET MOT
Show Image
RKR129A009
[14-19] In Stock
RKR144A001
LINK ASSY
[15] In Stock
SSA512T017
MOTOR,STEPPING
Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
SSA512T017
[16] In Stock
RKR504A003
HARNESS
[17] Out of Stock
RKR144A002
LINK
[18] Out of Stock
RKR144A003
CLANK
[19] Out of Stock
RKR144A004
CLANK
[20] In Stock
SSA326A038
PLUG
Show Image
SSA326A038
[21] In Stock
SSA423A090
DRAIN HOSE
[22-23] Contact
RWA111A001
BASE ASSY
Contact
[23] Contact
RKR132A004A
LID(L)
Contact
[24] In Stock
RKR032A001
PLATE
[25] In Stock
SSA431G039B
IMPELLER
Notes: OUT OF PRODUCTION
[26] In Stock
SSA923C136
BEARING, PLANE
Notes: END BEARING Show Image
SSA923C136
[27] In Stock
RKR129A012
BRACKET MOT
[28] In Stock
SSA511J217
MOTOR AC
Notes: FOR IMPELLER
[29] Out of Stock
RKR132A003B
LID
Substitute: OUT OF PRODUCTION
[30] In Stock
SSA913A007
SCREW
Notes: 4X12, 1pc ONLY Show Image
SSA913A007
SKU: SRK12CCA PANEL AND FAN ASSY Category:
