SRK12CCA HEAT EXCH. AND CONTROL

SRK12CCA HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

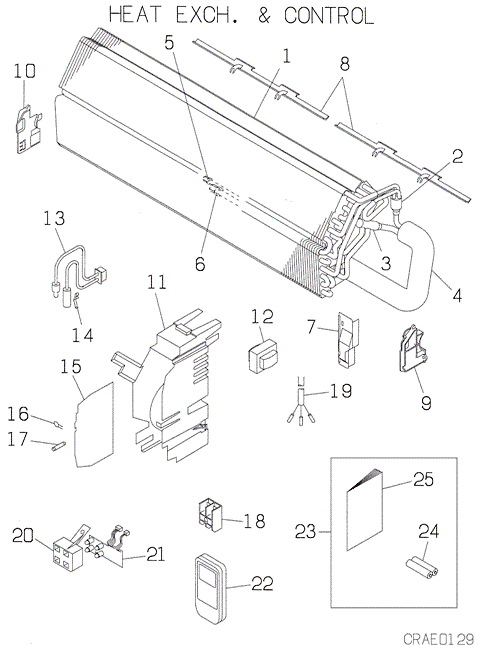

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-6] Out of Stock
RKR301A003F
HEAT,EX,AIR
[2] Contact
RKR315A003
DISTRIBUTER
Contact
[3] Contact
RKR315D003
HEADER
Contact
[4-6] Contact
RKR321A001F
PIPE
Contact
[5] Contact
SSA323F082A
UNION(SLD)
Contact
Notes: LIQ.
[6] Contact
SSA323F082B
UNION(SLD)
Contact
Notes: GAS, FOR GAS
[7] Contact
RKR129A015A
COVER,BEND
Contact
[8] Contact
RKR129A016
COVER
Contact
[9] Contact
RKR129A010
BRACKET MOT
Contact
[10] Contact
RKR129A011
BRACKET MOT
Contact
[11] Contact
RKR142A101
CONT BOX
Contact
[12] In Stock
SSA554A191B
TRANSFORMER
Show Image
SSA554A191B
[13] In Stock
SSA551A163F
SENSOR
Notes: INCL SENSOR ROOM TEMP and HEAT EXCH, INCL.SENSOR (ROOM TEMP.& HEAT EXCH.) Show Image
SSA551A163F
[14] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[15-17] Out of Stock
RKR505A360CD
PWB
Substitute: OUT OF PRODUCTION
[16] In Stock
SSA555B003A
VARISTOR
Show Image
SSA555B003A
[17] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[18] Contact
SSA561B669
BLOCK,TERMI
Contact
[19] Contact
RKR504A017
HARNESS ASSY
Contact
[20] Contact
RKR129A601
PLATE
Contact
[20-21] Contact
RKR503A600A
DISPLAY ASSY
Contact
Substitute: OUT OF PRODUCTION

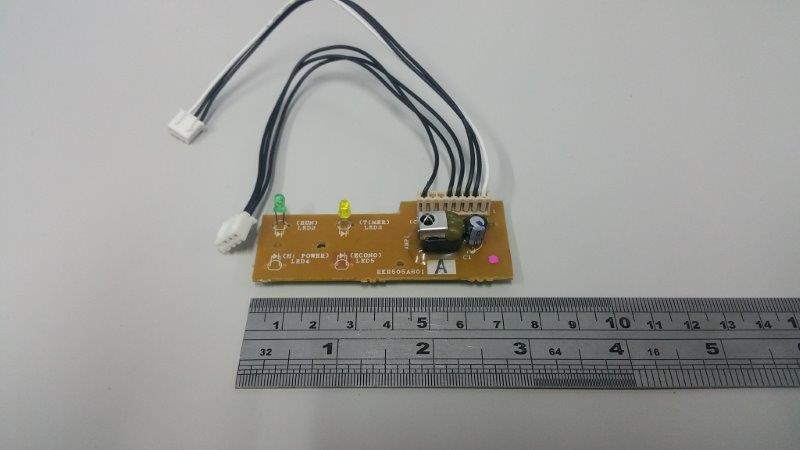

[21] Out of Stock
RKR505A601A
PWB ASSY(DI
Substitute: OUT OF PRODUCTION Show Image
RKR505A601A
[22] In Stock
RKS502A502A
REMOCON
Notes: RKR032A002 = REMOTE HOLDER Show Image
RKS502A502A
[23] Contact
RWA008A058A
PARTS SET
Contact
[24] Contact
RKH549A500B
BATTERY
Contact
[25] Contact
RWA012A225
MANUAL
Contact
[26] Contact
RSA011F394K
LABEL,MODEL NAME
Contact
