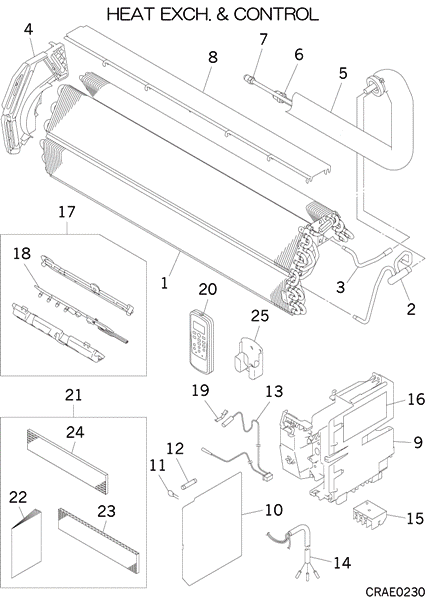

SRK10YJ-S HEAT EXCH. AND CONTROL

SRK10YJ-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] In Stock
RKX301A302S
HEAT EXCH ASSY(AIR)
[2] Contact
RKX315D006
HEADER ASSY
Contact
Notes: !
[3] Contact
RKX321A034
PIPE
Contact
Notes: !
[4] Contact
RKX129A016
BRACKET ASSY(L)
Contact
Notes: !
[5-7] Contact
RKX321A001
PIPE ASSY
Contact
[6] In Stock
SSA323F088
UNION(SLD)
Notes: FOR GAS, LENGTH 2.6CM Show Image
SSA323F088
[7] In Stock
SSA323F088A
UNION(SLD)
Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image
SSA323F088A
[8] Contact
RKX129A001B
PLATE ASSY,BAFFLE
Contact
[9] In Stock
RKX142A001
BOX,CONTROL
Show Image
RKX142A001

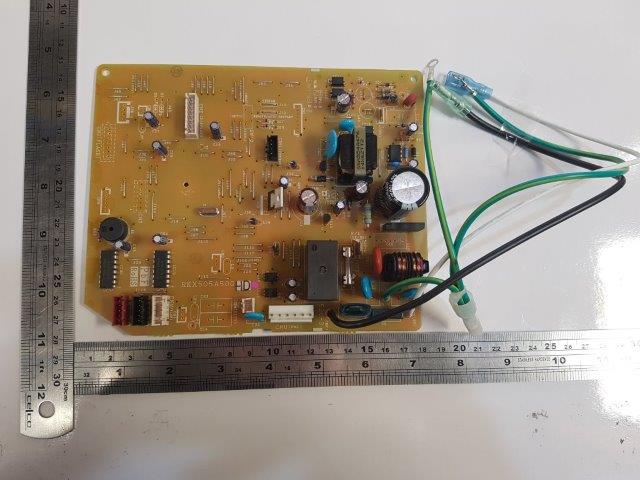

[10-12] In Stock
RKX505A500HD
PWB ASSY
Show Image
RKX505A500HD
[11] Contact
SSA555B058AD
VARISTOR
Contact
Notes: Z
[12] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[13] In Stock
SSA551A163L
SENSOR ASSY
Notes: SENSOR INCL.(ROOM TEMP.& HEAT EXCHANGE TEMP)/ LENGTH 40CM Show Image
SSA551A163L
[14] In Stock
RKV504A500G
HARNESS ASSY
[15] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[16] Contact
RKX011G602A
LABEL,WIRING
Contact
[17] In Stock
RKX503A301
DISPLAY ASSY
Notes: DISPLAY ASSY Show Image
RKX503A301
[18] In Stock
RKX505A007
PWB ASSY (DISPLAY)
Notes: Display/Receiver board - comes with harness Show Image
RKX505A007
[19] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[20] In Stock
RKX502A007
CONTROL, REMOTE
Notes: Holder = RKN032A002B Show Image
RKX502A007
[21] Contact
RMA008A011
PARTS,STANDARD
Contact
[22] Contact
RMA012A031
MANUAL,INSTRUCTION
Contact
[23] In Stock
RKT437A801D
FILTER,CLEAN(BIO)
Notes: 1pc ONLY, ALLERGEN FILTER / LENGTH 25.5CM Show Image
RKT437A801D
[24] In Stock
RKT437A005
FILTER,CLEAN
Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape
[25] In Stock
RKN032A002B
HOLDER
Show Image
RKN032A002B
[26] Contact
RMA011F013
LABEL,MODEL NAME
Contact
