SRK10CHVA PANEL AND FAN ASSY

SRK10CHVA PANEL AND FAN ASSY

Available Parts

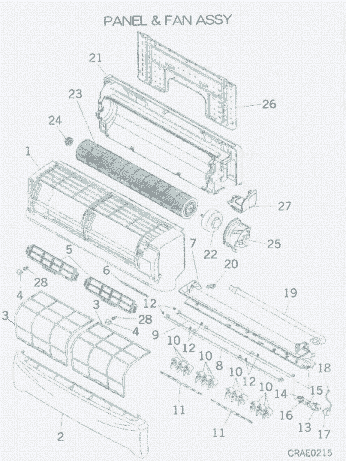

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RKX122A300D PANEL,FRONT Contact   Contact
  • [1-6] RKX102A300F PANEL ASSY,FRONT Contact   Contact
  • [2] RKX435A301A PANEL,AIR INLET Contact   Contact
  • [3] RKX437A300 FILTER, AIR In Stock Notes: RETURN AIR FILTER - UNITS HAS 2 - SOLD INDIVIDUALLY, 1pc ONLY
  • [4] RKX129A013 CAP In Stock Show Image
  • [5] RKX129A014 HOLDER,FILTER In Stock Notes: FILTER HOLDER - UNIT HAS 2 - SOLD INDIVIDUALLY, 1pc ONLY
  • [6] RKX133A300 PLATE,ORNAMENT Contact   Contact
  • [7] RKX435A303 GRILLE, AIR OUTLET In Stock
  • [7-20] RKX435A302P GRILLE ASSY, AIR OUT In Stock Substitute: RKX435A302J
  • [8] RKX436A001 FLAP(A) In Stock Substitute: RKX436A001C Notes: UPPER HORIZONTAL FLAP, UPPER
  • [9] RKX436A002C FLAP(B) In Stock Notes: LOWER HORIZONTAL FLAP/ LENGTH 69.5CM, LOWER
  • [10] RKX436A005B LOUVER In Stock Notes: *** ONE LOUVER ONLY ***, SEE LOUVER ASSY Show Image
  • [10-11] RKX436A006A LOUVER ASSY In Stock
  • [11] RKX129A015 PLATE,CONNECTING Contact Notes: !   Contact
  • [12] RKW935C200 COLLAR In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [13] RKX129A010 BRACKET,MOTOR(A) In Stock
  • [14] RKX144A001 LINK In Stock Show Image
  • [15] RKX144A002 CRANK(A) In Stock Show Image
  • [16] RKX144A003 CRANK(B) In Stock Show Image
  • [17] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049 Notes: FOR LOUVER(LEFT/RIGHT)
  • [18] RKS504A100G HARNESS In Stock Notes: WIRING HARNESS FOR FLAP - UP AND DOWN, FOR FLAP MOTOR
  • [19] SSA423A114 HOSE,DRAIN In Stock
  • [20] SSA326A047 PLUG In Stock Notes: PLUG FOR CONDENSATE/DRAIN TRAY.
  • [21] RKX111A001 BASE ASSY In Stock Substitute: RKX111A001C Show Image
  • [22] SSA511T286 MOTOR, AC In Stock Notes: FOR IMPELLER
  • [23] SSA431G047 IMPELLER In Stock
  • [24] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING Show Image
  • [25] RKX129A005 COVER(MOTOR) In Stock Show Image
  • [26] RKX032A001 PLATE,INSTALLATION In Stock Notes: MOUNTING PLATE
  • [27] RKX132A001A LID In Stock Notes: RIGHT HAND SIDE LID. (COVERS PIPING) Show Image
  • [28] SSA913A007A SCREW,TAP In Stock Notes: 1PC ONLY/ LENGTH 2CM, 4X14 Show Image
SKU: SRK10CHVA PANEL AND FAN ASSY Category:
