SRK10CHVA HEAT EXCH. AND CONTROL

SRK10CHVA HEAT EXCH. AND CONTROL

Available Parts

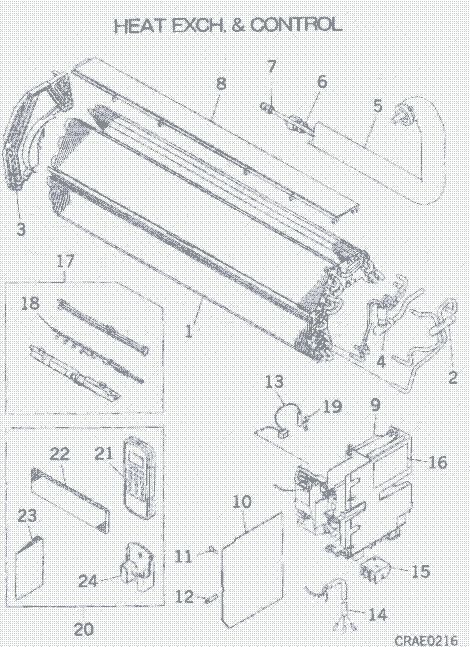

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-4] RKX301A007H HEAT EXCH ASSY(AIR) Contact   Contact
  • [2] RKX315D005 HEADER ASSY Contact   Contact
  • [3] RKX129A016 BRACKET ASSY(L) Contact Notes: !   Contact
  • [4] RKX315A004 DISTRIBUTOR ASSY Contact   Contact
  • [5-7] RKX321A001 PIPE ASSY Contact   Contact
  • [6] SSA323F088 UNION(SLD) In Stock Notes: LENGTH 2.6CM, FOR GAS
  • [7] SSA323F088A UNION(SLD) In Stock Notes: FOR LIQ. / LENGTH 2.3CM, FOR LIQ. Show Image
  • [8] RKX129A001 PLATE ASSY,BAFFLE Contact   Contact
  • [9] RKX142A001 BOX,CONTROL In Stock Substitute: RKX142A001A Show Image
  • [10-12] RKX505A001T PWB In Stock Show Image
  • [11] SSA555B050C VARISTOR In Stock Notes: Z1, Z1 Show Image
  • [12] SSA564A132 FUSE(CURRENT) In Stock Notes: 3.15A, 3.15A Show Image
  • [13] SSA551A163L SENSOR ASSY In Stock Notes: SENSOR INCL.(ROOM TEMP.AND HEAT EXCHANGE TEMP)/ LENGTH 40CM Show Image
  • [14] RKV504A500G HARNESS ASSY In Stock
  • [15] SSA561B713 BLOCK,TERMI Contact   Contact
  • [16] RMA011G003 LABEL,WIRING Contact   Contact
  • [17] RKX503A301A DISPLAY ASSY In Stock
  • [18] RKX505A007A PWB ASSY(DISPLAY) In Stock Show Image
  • [19] RKJ941F001 SPRING LEAF In Stock Substitute: PSA941F001 Notes: FOR THI-R Show Image
  • [20] RKX008A302C PARTS,STANDARD Contact   Contact
  • [21] RKX502A007B REMOTE CONTROL In Stock Show Image
  • [23] RKX012A306 MANUAL,INSTRUCTION Contact   Contact
  • [24] RKN032A002B HOLDER In Stock Substitute: RKN032A002C Show Image
  • [25] RMA011F005B LABEL,MODEL NAME Contact   Contact
