SRK10CFVA HEAT EXCH. AND CONTROL

SRK10CFVA HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

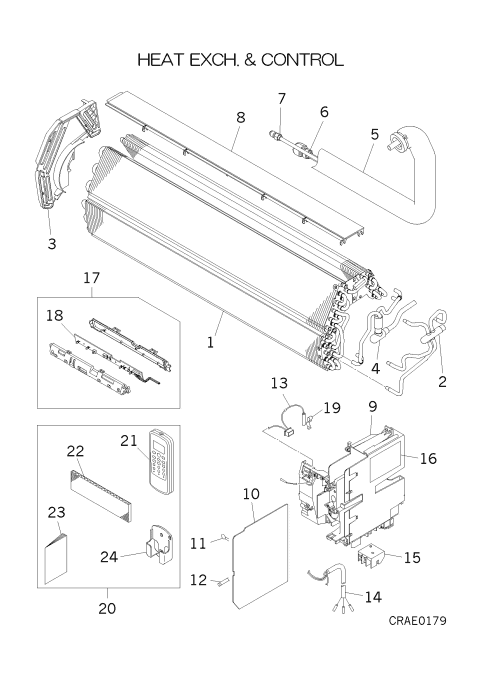

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Contact
RKX301A002A
HEAT EXCH ASSY(AIR
Contact
[2] Contact
RKX315D001
HEADER ASSY
Contact
Notes: !
[3] Contact
RKX129A003
BRACKET(L)
Contact
Notes: !
[4] Contact
RKX315A001
DISTRIBUTOR ASSY
Contact
[5-7] Contact
RKX321A001
PIPE ASSY
Contact
[6] Contact
SSA323F082
UNION
Contact
Notes: GAS
[7] Contact
SSA323F082A
UNION(SLD)
Contact
Notes: LIQ.
[8] Contact
RKX129A001
PLATE ASSY,BAFFLE
Contact
[9] In Stock
RKX142A001
BOX,CONTROL
Show Image
RKX142A001
[10-12] Out of Stock
RKX505A001
PWB ASSY
Substitute: OUT OF PRODUCTION Notes: INDOOR MAIN PC BOARD
[11] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[12] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[13] In Stock
SSA551A163L
SENSOR ASSY
Notes: SENSOR INCL.(ROOM TEMP.& HEAT EXCHANGE TEMP)/ LENGTH 40CM Show Image
SSA551A163L
[14] In Stock
RKV504A500G
HARNESS ASSY
[15] Contact
SSA561B713
BLOCK,TERMI
Contact
[16] Contact
RKX011G001
LABEL,WIRING
Contact
Notes: !
[17] In Stock

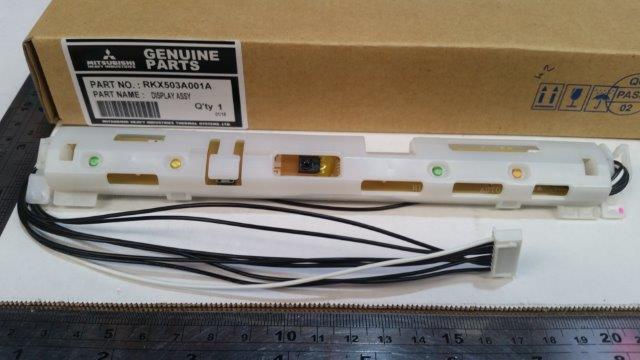

RKX503A001A
DISPLAY ASSY
Show Image
RKX503A001A
[18] In Stock
RKX505A003A
PWB ASSY(DISPLAY)
Show Image
RKX505A003A
[19] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[20] Contact
RKX008A003
PARTS,STANDARD
Contact
Notes: !
[21] In Stock
RKX502A007B
REMOTE CONTROL
Show Image
RKX502A007B
[22] Contact
RKT437A011A
FILTER,CLEAN
Contact
Notes: 1pc ONLY, !
[23] Contact
RKX012A004
MANUAL,INSTRUCTION
Contact
Notes: !
[24] In Stock
RKN032A002B
HOLDER
Show Image
RKN032A002B
[25] Contact
RSA011F407
LABEL,MODEL NAME
Contact
SKU: SRK10CFVA HEAT EXCH. AND CONTROL Category:
