SRK100ZR-WF/P HEAT EXCH. AND CONTROL

Awaiting product image

SRK100ZR-WF/P HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

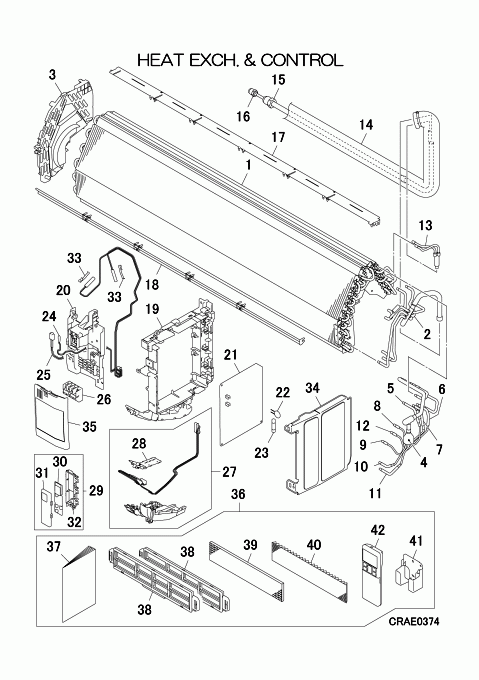

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-13] In Stock
RLD301A003SG
HEAT EXCH ASSY (AIR)
Notes: Indoor Heat exchanger assembly
[2] Contact
RLD315D002B
HEADER ASSY
Contact
Notes: !
[3] In Stock
RLD129A003
BRACKET(L)
Notes: !
[4] Contact
RSA315A006
DISTRIBUTOR
Contact
Notes: !
[4-12] Contact
RLD315A004
DISTRIBUTOR ASSY
Contact
Notes: !
[5] Contact
RLD321A031
PIPE ASSY
Contact
Notes: !D2.8XD4.0 L100, f2.8”f4.0 L100
[6] Contact
RLD321A032
PIPE ASSY
Contact
Notes: !D2.8XD4.0 L100, f2.8”f4.0 L100
[7] Contact
RLD321A033
PIPE ASSY
Contact
Notes: !D2.8XD4.0 L100, f2.8”f4.0 L100
[8] Contact
RLD315B001
CAPILLARY
Contact
Notes: !D2.8XD4.0 L100
[9] Contact
RLD315B009
CAPILLARY
Contact
Notes: !D2.8XD4.0 L100, f2.8”f4.0 L100
[10] Contact
RLD321A034
PIPE ASSY
Contact
Notes: !D2.8XD4.0 L100, f2.8”f4.0 L100
[11] Contact
RLD321A035
PIPE ASSY
Contact
Notes: !D2.8XD4.0 L100, f2.8”f4.0 L100
[12] Contact
RLD315B004
CAPILLARY
Contact
Notes: !D2.8XD4.0 L100
[13] Contact
RLD321A051
PIPE ASSY
Contact
Notes: !
[14-16] Contact
RLD321A001R
PIPE ASSY
Contact
[15] Contact
SSA323F092H
UNION,SOLDER
Contact
Notes: FOR GAS
[16] In Stock
SSA323F088
UNION(SLD)
Notes: FOR LIQ., LENGTH 2.6CM Show Image
SSA323F088
[17] In Stock
RLD129A004
PLATE,BAFFLE
[18] Contact
RLD129A006
SEAL(A)
Contact
[19] In Stock
PHA142A401
BOX ASSY,CONTROL
Notes: !
[20] Contact
RLD129A022
COVER,BEND
Contact
[21-23] Contact
RLA505A001VD
PWB ASSY
Contact
[22] In Stock
SSA555B050C
VARISTOR
Notes: Z, Z1 Show Image
SSA555B050C
[23] In Stock
SSA564A132
FUSE(CURRENT)
Notes: F 3.15A, 3.15A Show Image
SSA564A132
[24] In Stock
SSA551A223L
SENSOR ASSY
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), includes 1x room temp & 2x heat exchanger coil sensors Show Image
SSA551A223L
[25] In Stock
SSA551B017C
SENSOR(HUMIDITY)
Notes: HUMIDITY SENSOR Show Image
SSA551B017C
[26] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T1, T2 Show Image
SSA561B702B
[27] In Stock
RLD503A001
DISPLAY ASSY
Notes: DOES NOT INCLUDE FRONT FACIA - INCLUDES RECEIVER BOARD HOUSING AND HARNESS Show Image
RLD503A001
[28] In Stock
RLD505A001
PWB ASSY(DISPLAY)
Notes: Display/Receiver board with wiring harness Show Image
RLD505A001
[29-32] In Stock
RLF503A202
WF ASSY (SPARE)
Notes: ONLY FOR SUPPLY PARTS, Includes Wiring harness - Wiring harness
[30] Contact
RLH505A002A
PWB ASSY(WF)
Contact
Notes: !
[31] In Stock
RLF129A229
HOLDER, WF (U)
Notes: !
[32] In Stock
RLF129A230
HOLDER, WF (L)
Notes: !
[33] In Stock
PSA941F001
SPRING LEAF
Notes: 1pc ONLY Show Image
PSA941F001
[34] In Stock
RLD142A001
LID,CONTROL
[35] In Stock
RLD132A003N
LID ASSY (TERMINAL)
[36] Contact
RLD008A003F
PARTS,STANDARD
Contact
Notes: !
[37] Contact
RLD012A026
MANUAL,INSTRUCTION
Contact
Notes: !
[38] In Stock
RKX129A014
HOLDER,FILTER
Notes: FILTER HOLDER - UNIT HAS 2 - SOLD INDIVIDUALLY
[39] In Stock
RKT437A005
FILTER,CLEAN
Notes: PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape Show Image
RKT437A005
[40] In Stock
RKT437A801D
FILTER,CLEAN(BIO)
Notes: ALLERGEN FILTER
[41] In Stock
RLA032A700
HOLDER(REMO-CON)
Notes: Holder/Cradle for Remote control Show Image
RLA032A700
[42] Contact
RLA502A704G
REMOTE CONTROL
Contact
[43] Contact
RLD011F012HD
LABEL,MODEL NAME
Contact
Notes: !
