SRK100ZR-W/B PANEL AND FAN ASSY

SRK100ZR-W/B PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

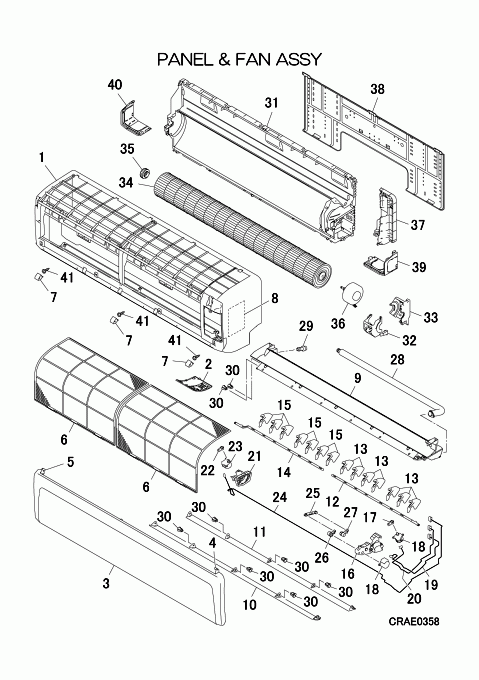

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RLD122A001B
PANEL,FRONT
Notes: !
[1-8] Out of Stock
RLD102A001W
PANEL ASSY,FRONT
[2] In Stock
RLD133A001G
PLATE ASSY ORNAMENT
RLD133A001G
[3-5] In Stock
RLD435A003L
PANEL ASSY AIR INLET
Notes: AIR INLET PANEL / FILTER COVER. for ARM INLET/HINGE/CLIPS use - Left = RLD129A009 / Right = RLD129A008
[4] In Stock
RLD129A008
ARM, INLET (R.)
Notes: RIGHT SIDE WHEN FACING/LOOKING AT UNIT - FOR left SIDE SEE RLD129A009
[5] In Stock
RLD129A009
ARM, INLET (L)
Notes: LEFT SIDE WHEN FACING/LOOKING AT UNIT - FOR RIGHT SIDE SEE RLD129A008
[6] In Stock
RLD437A001
FILTER,AIR
Notes: W507.5XH401.5( 2), RETURN AIR / DUST FILTER - THIS MODEL HAS 2 - SOLD INDIVIDUALLY
[7] Out of Stock
RLD129A007
CAP
RLD129A007
[8] In Stock
RLD011G001
LABEL,WIRING
Notes: !
[9] In Stock
RLD435A001C
GRILLE ASSY, AIR OUT
Notes: !, INCLUDES DRIP/CONDENSATE TRAY ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS
[9-30] In Stock
RLD435A001C
GRILLE ASSY, AIR OUT
Notes: !, INCLUDES DRIP/CONDENSATE TRAY ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS
[10] In Stock
RLD436A005B
FLAP(U)
Notes: Upper
[11] In Stock
RLD436A006C
FLAP(L)
Notes: LOWER HORIZONTAL FLAP
[12] Contact
RLD129A010
PLATE,CONNECTING(R)
Contact
Notes: !
[12-13] In Stock
RLD436A003
LOUVER ASSY (R )
Notes: INCLUDES 7x LOUVER BLADES AND A CONNECTING PLATE - RIGHT SIDE/ LENGTH 56CM Show Image
RLD436A003
[13] In Stock
RLD436A007
LOUVER
Notes: !, SOLD INDIVIDUALLY Show Image
RLD436A007
[14] Contact
RLD129A011
PLATE,CONNECTING(L)
Contact
Notes: !
[14-15] In Stock
RLD436A004
LOUVER ASSY(L)
Notes: INCLUDES 7x LOUVER BLADES AND A CONNECTING PLATE - LEFT SIDE
[15] In Stock
RLD436A007
LOUVER
Notes: !, SOLD INDIVIDUALLY Show Image
RLD436A007
[16] In Stock
RLD129A014A
BRACKET,MOTOR(R)
Notes: !
[16-21] Out of Stock
RLD129A012A
BRACKET ASSY(R)
RLD129A012A
[17] In Stock
RLB144A005
CRANK(C)
Notes: !, LENGTH 2CM Show Image
RLB144A005
[18] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR LOUVER(LEFT) Show Image
SSA512T158
[19] In Stock
RSA504A031
HARNESS ASSY
Notes: FOR FLAP MOTOR, WIRING HARNESS FOR HORIZONTAL UP/DOWN STEPPING MOTOR
[20] In Stock
RSA504A031A
HARNESS ASSY
Notes: FOR LOUVER MOTOR(RIGHT), FOR RIGHT LOUVER MOTOR(RIGHT) Show Image
RSA504A031A
[21] In Stock
RLD129A015
BRACKET,MOTOR(L)
Notes: ! Show Image
RLD129A015
[21-24] In Stock
RLD129A013
BRACKET ASSY(L)
Notes: INCLUDES PLASTIC HOUSING, CRANK & LOUVER MOTOR Show Image
RLD129A013
[22] In Stock
RLB144A005
CRANK(C)
Notes: !, LENGTH 2CM Show Image
RLB144A005
[23] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR LOUVER(LEFT) Show Image
SSA512T158
[24] In Stock
RSA504A031C
HARNESS ASSY
Notes: FOR LOUVER MOTOR(LEFT), WIRING HARNESS FOR LEFT SIDE LOUVER MOTOR Show Image
RSA504A031C
[25] In Stock
RLD144A002
LINK
Notes: !, LENGTH 5CM Show Image
RLD144A002
[25-27] In Stock
RLD144A001A
LINK ASSY
Notes: LENGTH 7.5CM Show Image
RLD144A001A
[26] In Stock
RLD144A003
CRANK(U)
Notes: ! Show Image
RLD144A003
[27] In Stock
RLD144A004A
CRANK(L)
Notes: ! Show Image
RLD144A004A
[28] Contact
SSA423A114A
HOSE,DRAIN
Contact
[29] In Stock
SSA326A047
PLUG
Notes: !, Plug for condensate/drain tray.
[30] In Stock
RLD129A021
SHAFT
Notes: secures horizontal up/down flaps onto indoor head unit - SOLD INDIVIDUALLY Show Image
RLD129A021
[31] In Stock
RLD111A001C
BASE ASSY
[32] Out of Stock
RLD129A001
CASE,MOTOR(U)
[33] In Stock
RLD129A018
CASE ASSY(L)
[34] In Stock
SSA431G052
IMPELLER
Notes: FAN BARREL / FAN SCROLL
[35] In Stock
SSA923C136
BEARING, PLANE
Notes: END BEARING Show Image
SSA923C136
[36] In Stock
SSA512T099A
MOTOR,DC
Notes: FOR IMPELLER, INDOOR FAN MOTOR-INCLUDES WIRING HARNESS Show Image
SSA512T099A
[37] In Stock
RLD116A001B
BRACKET,CONTROL
[38] In Stock
RLD032A001
PLATE,INSTALLATION
[39] In Stock
RLD132A001B
LID (R)
Notes: RIGHT SIDE LID Show Image
RLD132A001B
[40] In Stock
RLD132A002B
LID(L)
Notes: LEFT SIDE LID Show Image
RLD132A002B
[41] In Stock
SSA913A007
SCREW
Notes: 4X12, 1pc ONLY Show Image
SSA913A007
