SRK09CCA PANEL AND FAN ASSY

Name: SRK09CCA PANEL AND FAN ASSY
SKU: SRK09CCA PANEL AND FAN ASSY
Availability: InStock

SRK09CCA PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

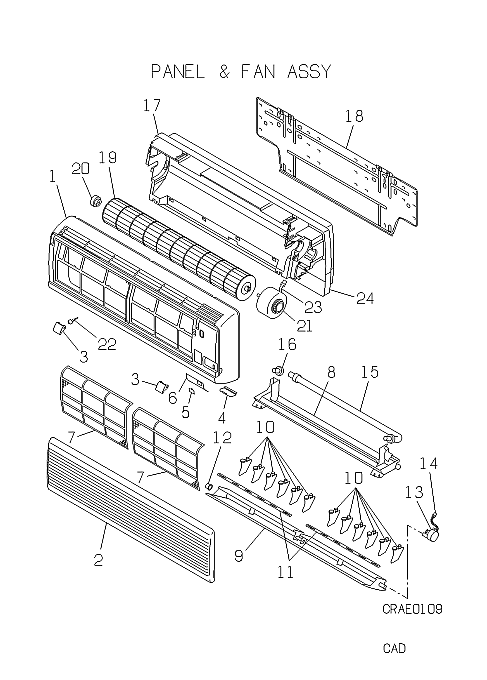

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RKS122A500

FRONT PANEL

[1-7] Out of Stock

RKS102A500AN

PANEL ASSY

[2] Out of Stock

RKS435A500A

GRILLE AIR

Substitute: OUT OF PRODUCTION Notes: AIR INLET

[3] Out of Stock

RKS129A500

CAP

[4] Out of Stock

RKS129A501

PLATE

Notes: OUT OF PROUDUCTION

[5] In Stock

RKS133A500

PLATE ORNA

Show Image

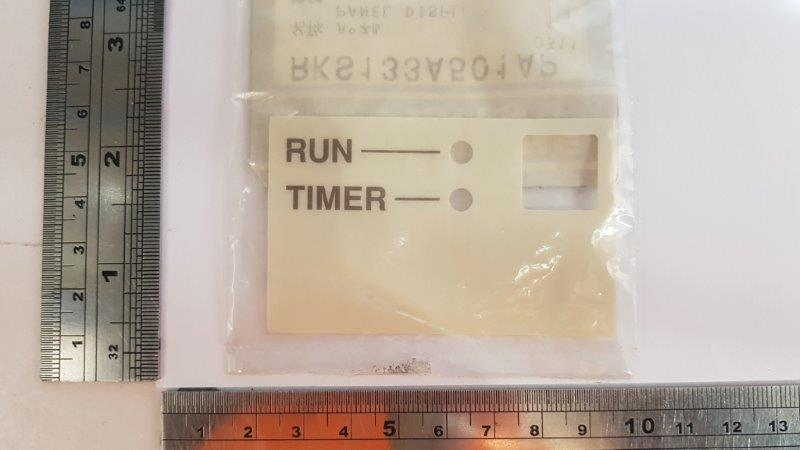

[6] In Stock

RKS133A501AP

PANEL DISPL

Show Image

[7] In Stock

RKS437A500

FILTER

Notes: 1pc ONLY, RETURN AIR/ DUST FILTER - SOLD INDIVIDUALLY - UNIT HAS 2

[8] In Stock

RKS435A502

GRILLE IN

[8-16] Contact

RKS435A501

GRILLE

Contact

Notes: OUT OF PRODUCTION

[9] Out of Stock

RKS436A500

FLAP

[10] In Stock

RKS436A502

LOUVER

Notes: 1pc ONLY Show Image

[10-11] In Stock

RKS436A501

LOUVER ASSY

Notes: 6 LOUVERS AND CONNECTING PLATE Show Image

[11] Contact

RKS129A502

PLATE CONEC

Contact

[12] In Stock

RKR935C001

COLLAR

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY*** Show Image

[13] In Stock

SSA512T017

MOTOR,STEPPING

Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

[14] Out of Stock

RKS504A500

HARNESS

Substitute: OUT OF PRODUCTION Notes: FOR FLAP MOTOR Show Image

[15] Contact

RSA423A002

HOSE,DRAIN

Contact

[16] In Stock

SSA326A038

PLUG

Show Image

[17] Out of Stock

RKS111A500

BASE

[18] Out of Stock

RKS032A500

PLATE

Substitute: OUT OF PRODUCTION

[19] Out of Stock

SSA431G033A

IMPELLER

Substitute: OUT OF PRODUCTION Notes: IMPELLER/FAN SCROLL/FAN BARRELL

[20] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[21] In Stock

SSA511C056

MOTOR

Notes: FOR IMPELLER Show Image

[22] In Stock

SSA913A007

SCREW

Notes: 4X12, 1pc ONLY Show Image

[23] Contact

RKN504A115A

HARNESS

Contact

[24] Out of Stock

RKS132A500

LID

Show Image
